Artisan ARTP-PZA Pizza Oven Parts
Serial 25-134000 and newer 6 drawings · 84 parts

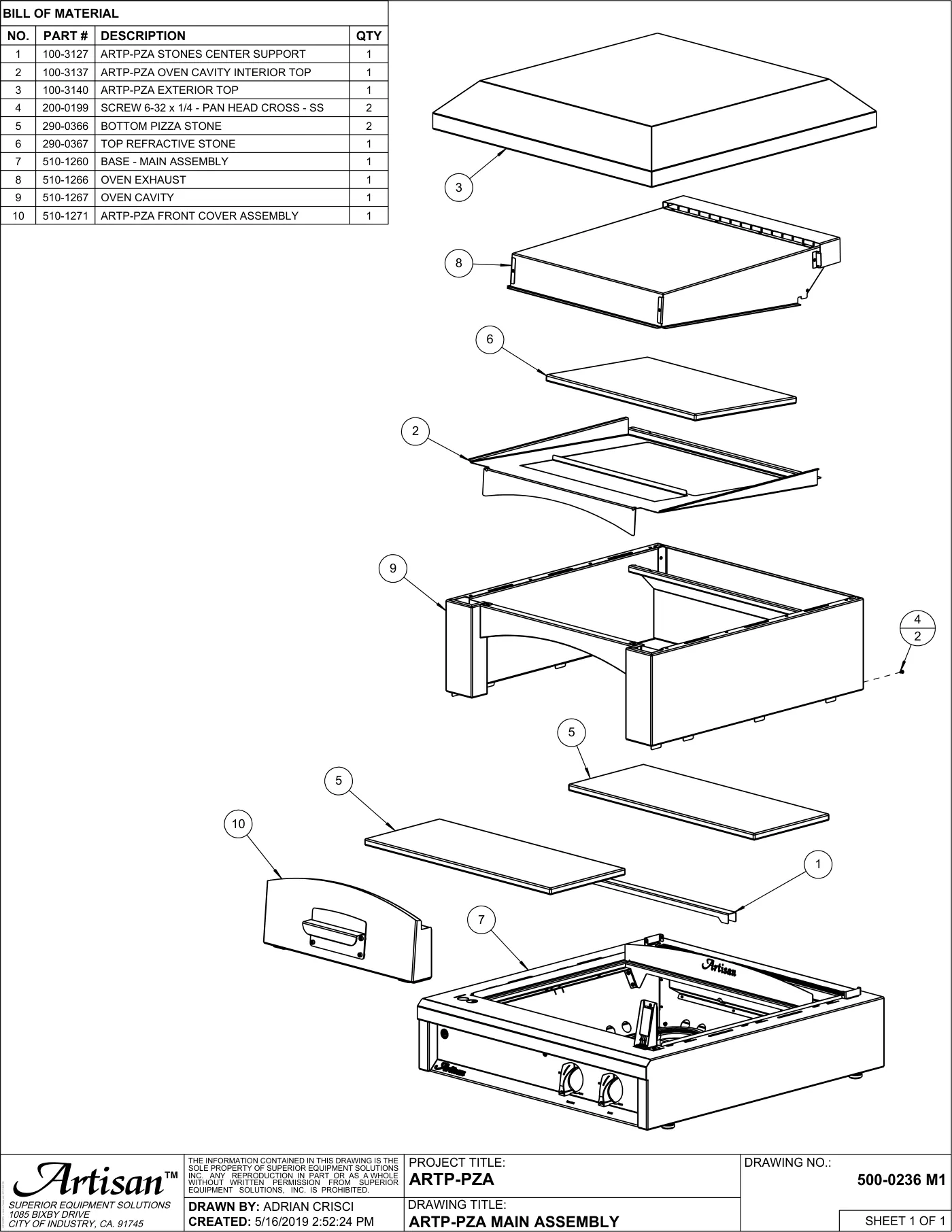

1 Complete Unit (Main Assembly)
Drawing 500-0236

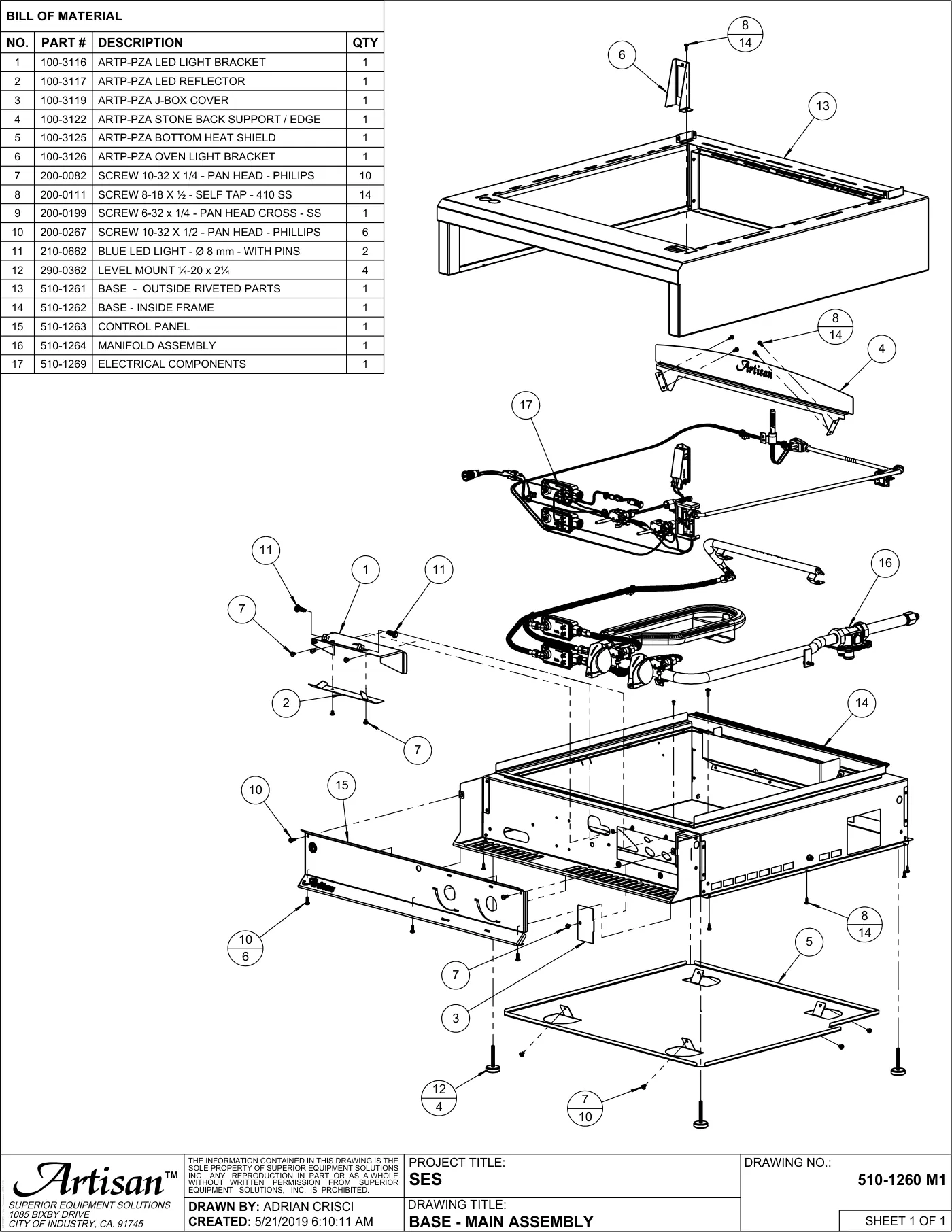

2 Base - Main Assembly
Drawing 510-1260

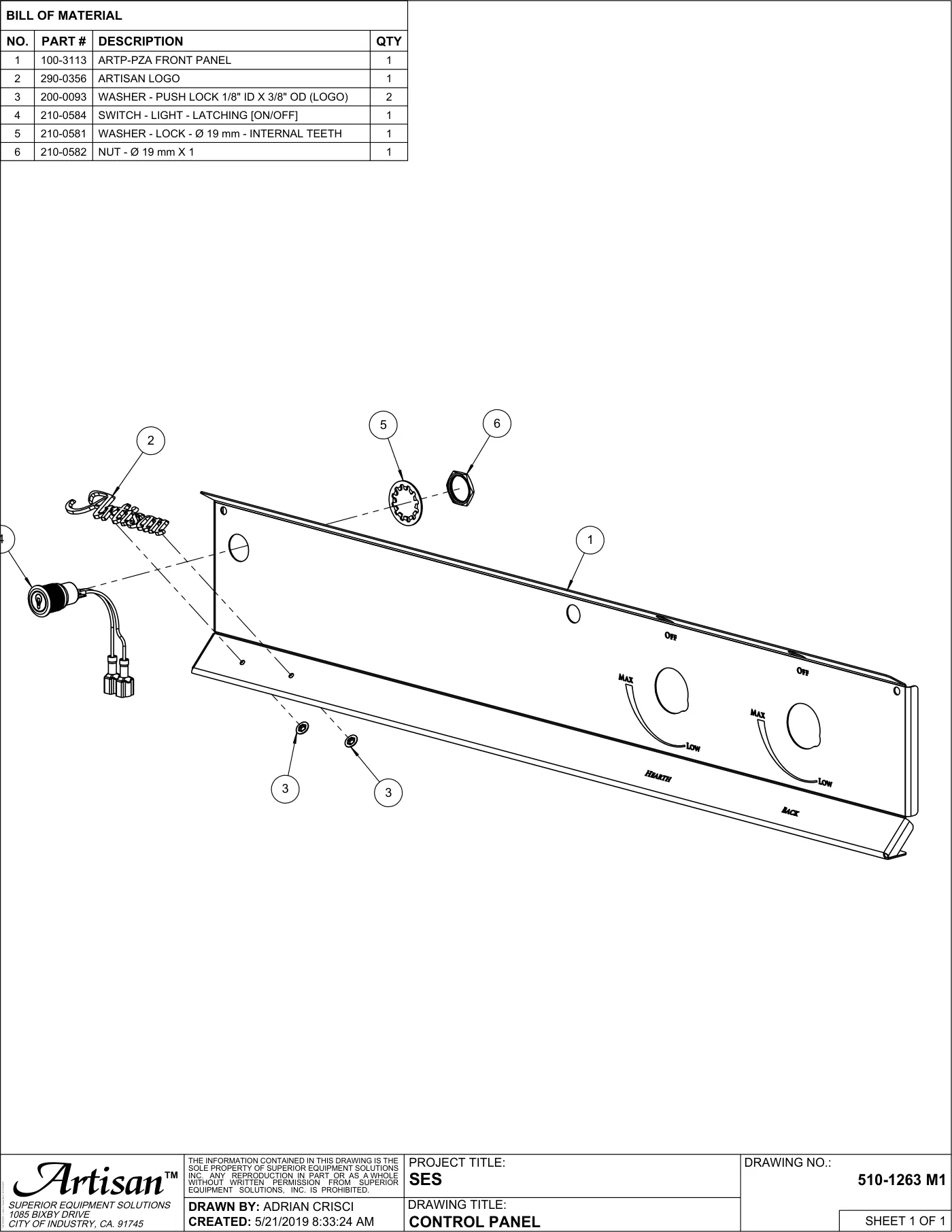

3 Control Panel
Drawing 510-1263

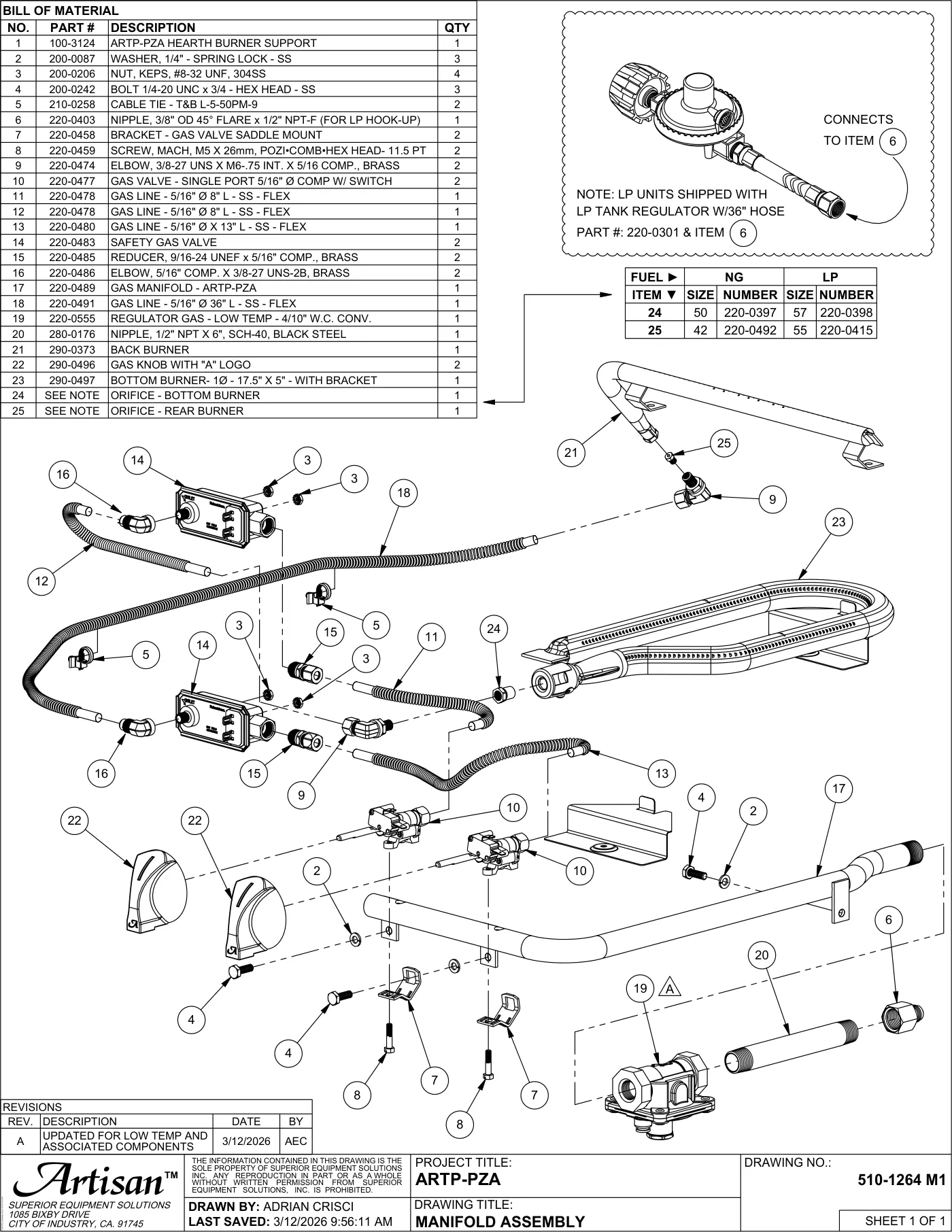

4 Manifold Assembly
Drawing 510-1264

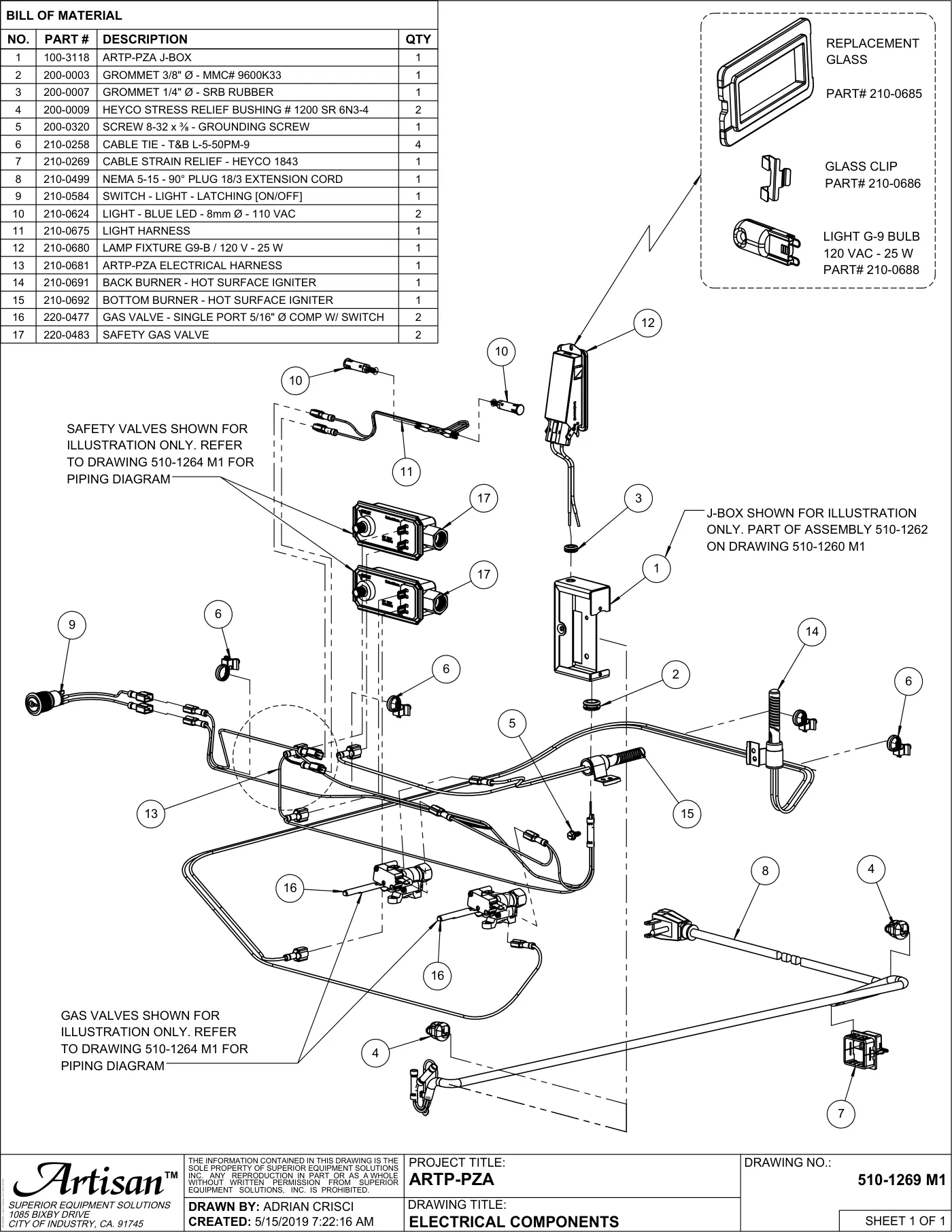

5 Electrical Components
Drawing 510-1269

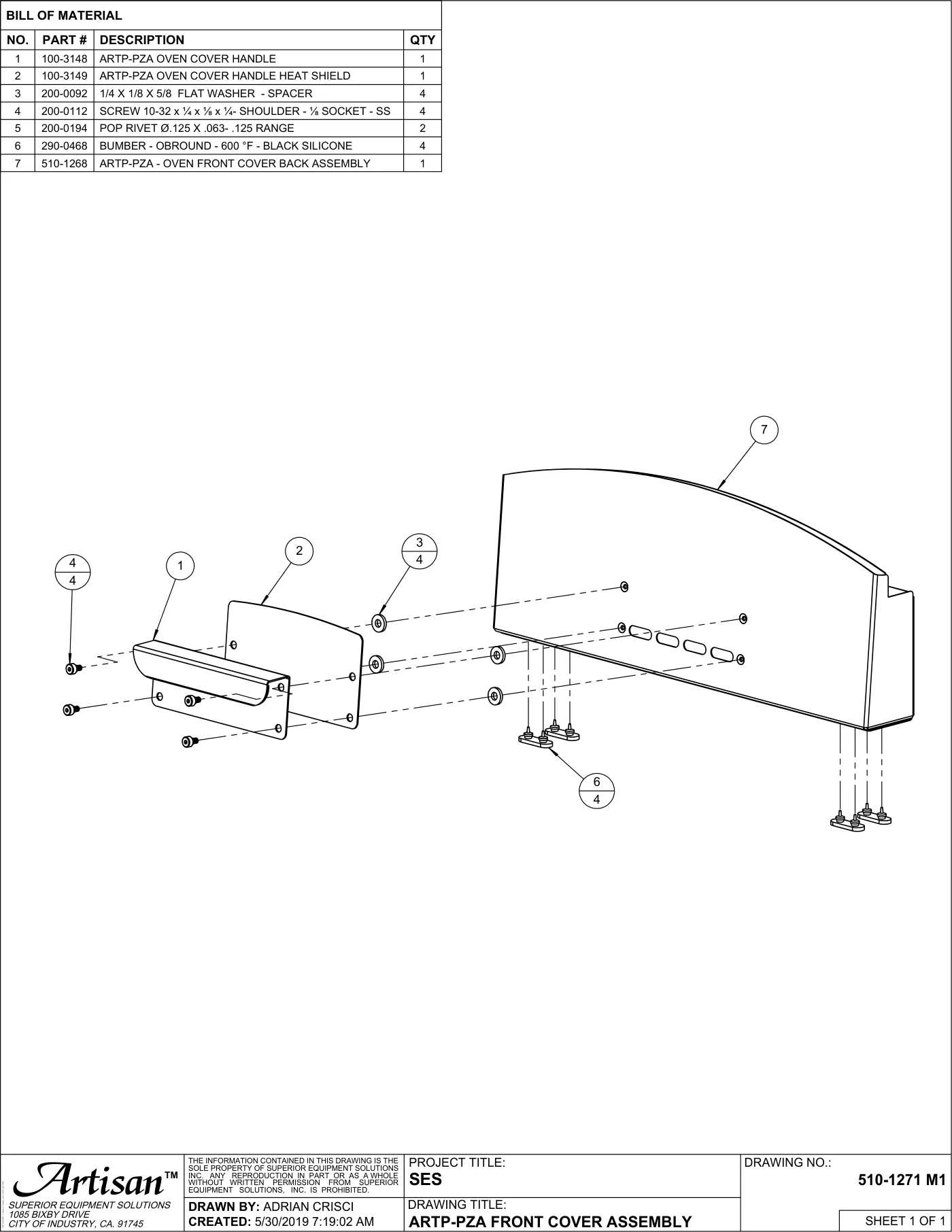

6 Front Cover Assembly
Drawing 510-1271
About these ARTP-PZA Pizza Oven parts
These drawings come from the Artisan parts manual for the ART-PZA / ARTP-PZA, serial 25-134000 and newer. Each drawing shows one part of the grill with numbered callouts that match the parts list. Tap a red dot or a part in the list to see the part number and how many are used. Parts are coming soon to our online store; text or call us if you need one now.
Source: Artisan parts manual (PDF).
Find your model and serial number
- Find the rating plate (the data label) on your grill or appliance. It lists the model number, the gas type and the serial number.
- Check the owner’s manual or your purchase paperwork if you can’t get to the plate.
- Text us a photo of the plate. We’ll tell you exactly which drawings and parts fit.
Why the serial number matters
Artisan changed parts over the years without changing the model number. That is why many models have two or three parts manuals, each for a range of serial numbers, like up to 17-99999, 18-00000 to 25-133999 and 25-134000 and newer.
Serial numbers look like 19-104523. The first two digits are the year it was built. Type it in with the model and the finder picks the right manual for you.
Model letters to know
ART and ART2 are Artisan grills. ARTP is the Artisan Professional and AAE / AAEP is the American Eagle. Side burners end in SB, the power burner is PB and the pizza oven is PZA.
