American Outdoor Grill 2026 30-inch Grill Cart Base 30CRT-25 Parts Diagram

Cart Base Tap a red dot or pick from the parts list.

Parts diagram

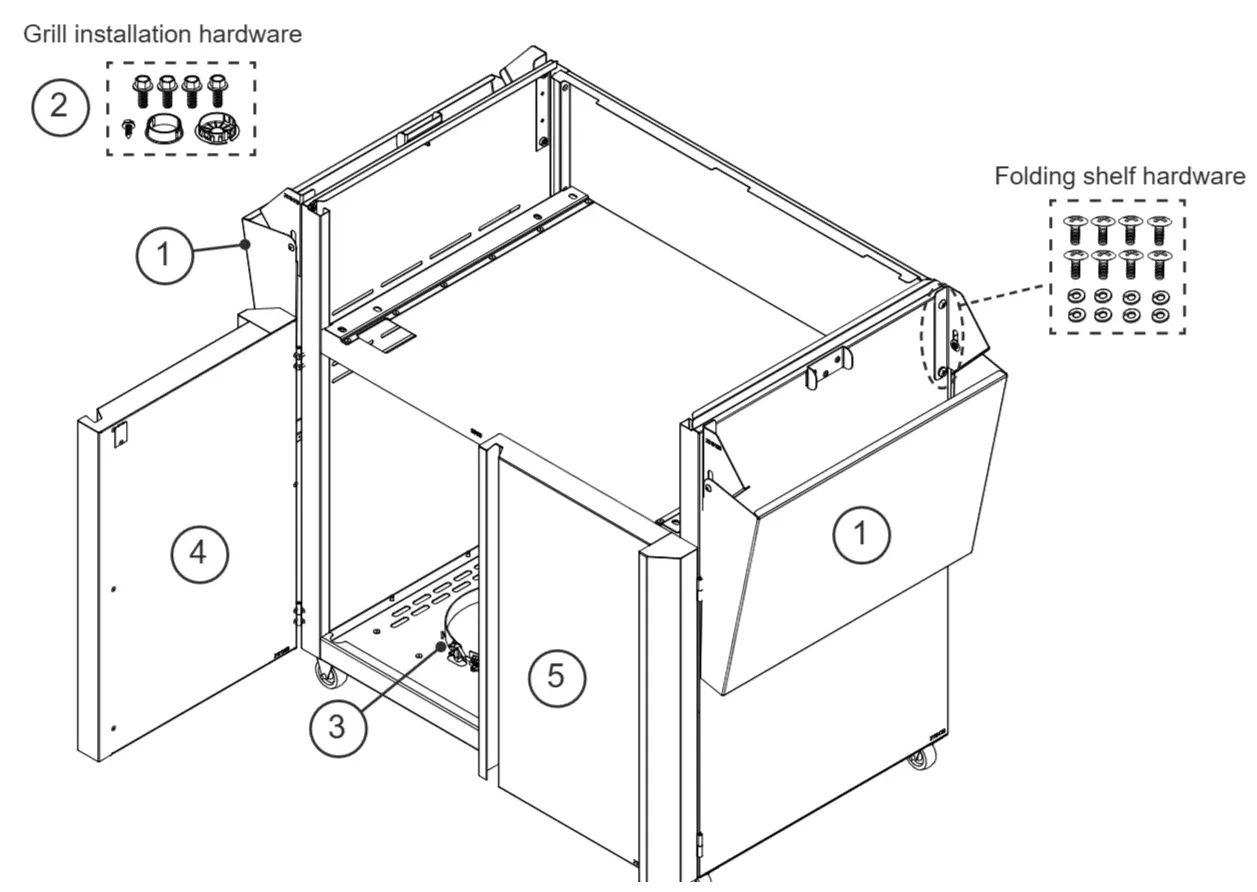

American Outdoor Grill 2026 30-inch Grill Cart Base 30CRT-25 exploded parts diagram showing 8 replacement parts

About the American Outdoor Grill 2026 30-inch Grill Cart Base 30CRT-25 parts

This is the exploded parts diagram for the American Outdoor Grill 2026 30-inch Grill Cart Base 30CRT-25. It shows 8 replacement parts, and 4 of them can be ordered online today. Tap a red dot or pick a part from the list to see its AOG part number. Parts change over the years, so if your grill looks a little different, text us a photo and we’ll confirm the fit. Drawing and part numbers come from the AOG owner’s manual L-C2-770.

Other AOG 2026 Carts, Posts and Side Burners diagrams

AOG 2026 24-inch Grill Cart Base 24CRT-25AOG 2026 36-inch Grill Cart Base 36CRT-25AOG 2026 L Series Double Side Burner AOG2SBLAOG 2026 T Series Double Side Burner AOG2SBTAOG 2026 Patio Mount Post Base AOG24-PP and AOG24-PAAOG 2026 In-Ground Post Base AOG24-GP and AOG24-GA

Not sure which model you have?

On AOG grills, look for the white or silver rating plate. It lists the model and serial number and is usually on the back panel, inside the cart doors, on the side of the cart, or near the control panel. The model number is also on the front cover of your owner’s manual. AOG model numbers look like 30NBL or 36NBL-00SP. Send us a photo of the plate and we’ll tell you exactly what you have.
