American Outdoor Grill Compact Refrigerator REF-21 Parts Diagram

Refrigerator Tap a red dot or pick from the parts list.

Parts diagram

Labels

Parts on this diagram

1Adjustable temperature control with lightAsk us for the part numberAdjustable temperature control with lightAsk us
2Thermostat knob3598-20Thermostat knobAsk us
3Can holder compartmentAsk us for the part numberCan holder compartmentAsk us
4Fixed door shelf (to accommodate 2-liter bottles)Ask us for the part numberFixed door shelf (to accommodate 2-liter bottles)Ask us
5Lock bracketAsk us for the part numberLock bracketAsk us
6Keys (pair)3598-21Keys (pair)Ask us
7Adjustable front leveling legs (pair)3598-22Adjustable front leveling legs (pair)Ask us
8Crisper bin3598-23Crisper binAsk us
9Crisper bin glass cover3598-24Crisper bin glass coverAsk us
10Slide-out glass shelf3598-25 · Qty 2Slide-out glass shelfAsk us
11Slide-out flip shelf (to accommodate tall bottles)3598-26Slide-out flip shelf (to accommodate tall bottles)Ask us
12Upper door hinge assembly3598-27 · Not shownUpper door hinge assemblyAsk us
13Upper door hinge cover3598-28Upper door hinge coverAsk us
14Lower door hinge assembly3598-29 · Not shownLower door hinge assemblyAsk us
15Door assembly with built-in top handle (reversible)REF-21-10Door assembly with built-in top handle (reversible)Ask us

About the American Outdoor Grill Compact Refrigerator REF-21 parts

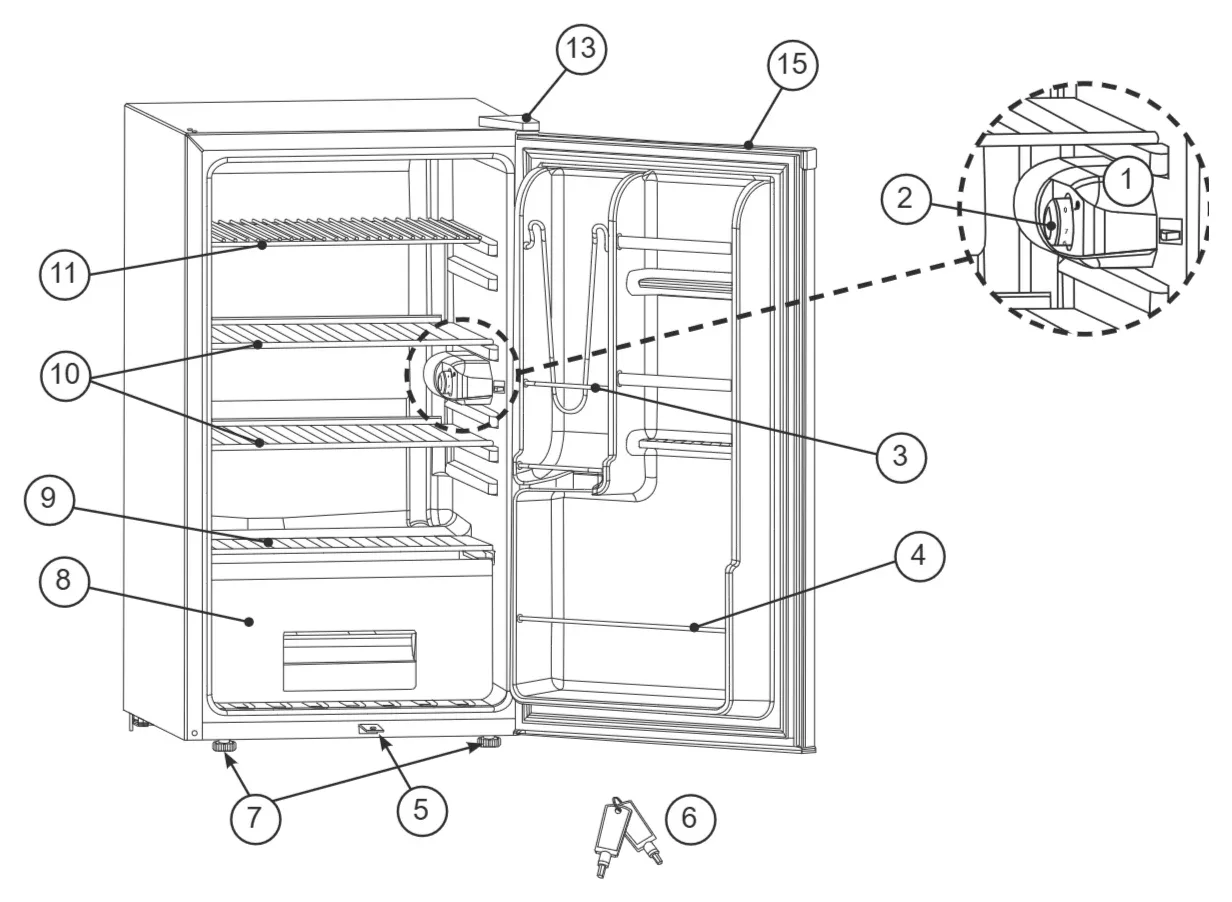

This is the exploded parts diagram for the American Outdoor Grill Compact Refrigerator REF-21. It shows 15 replacement parts, and 0 of them can be ordered online today. Tap a red dot or pick a part from the list to see its AOG part number. Parts change over the years, so if your grill looks a little different, text us a photo and we’ll confirm the fit. Drawing and part numbers come from the AOG owner’s manual L-C2-536.
