American Outdoor Grill T Series 24-inch Post Mount Parts Diagram

Post-Mount Tap a red dot or pick from the parts list.

Parts diagram

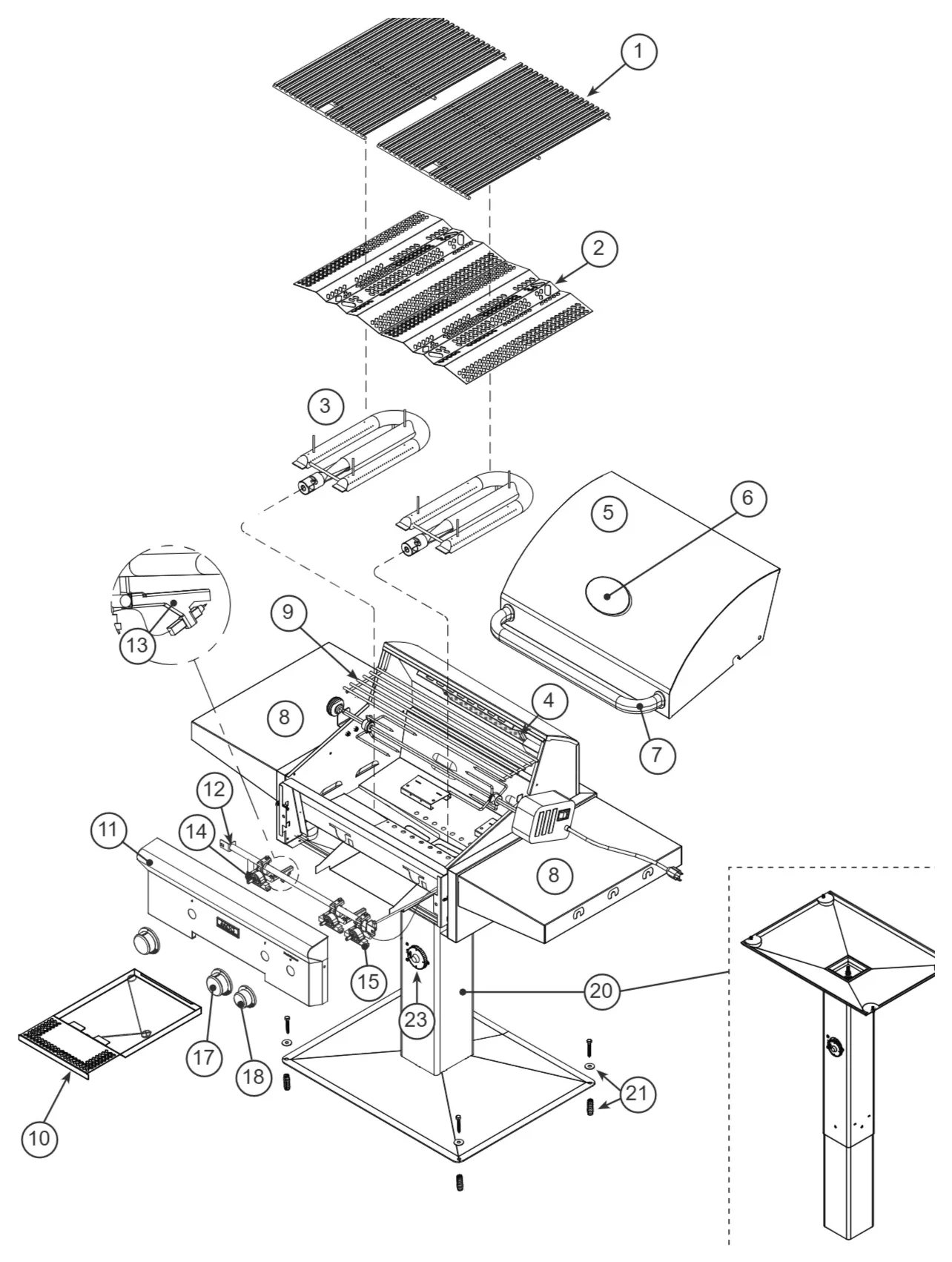

American Outdoor Grill T Series 24-inch Post Mount exploded parts diagram showing 33 replacement parts

About the American Outdoor Grill T Series 24-inch Post Mount parts

This is the exploded parts diagram for the American Outdoor Grill T Series 24-inch Post Mount post-mount grill. It shows 33 replacement parts, and 26 of them can be ordered online today. Tap a red dot or pick a part from the list to see its AOG part number. Parts change over the years, so if your grill looks a little different, text us a photo and we’ll confirm the fit. Drawing and part numbers come from the AOG owner’s manual L-C2-443.

Other AOG T Series diagrams

AOG T Series 24-inch Built-InAOG T Series 24-inch PortableAOG T Series 30-inch Built-InAOG T Series 30-inch PortableAOG T Series 36-inch Built-InAOG T Series 36-inch Portable

Not sure which model you have?

On AOG grills, look for the white or silver rating plate. It lists the model and serial number and is usually on the back panel, inside the cart doors, on the side of the cart, or near the control panel. The model number is also on the front cover of your owner’s manual. AOG model numbers look like 30NBL or 36NBL-00SP. Send us a photo of the plate and we’ll tell you exactly what you have.
