Fire Magic Aurora A540s Parts Diagram

Portable Tap a red dot or pick from the parts list.

Parts diagram

Labels

Parts on this diagram

1Cooking Grids23543-DS-3 · Set of 3Diamond Sear Cooking Grids for A540 and C540Shop
2Counter Balance3620ECounter BalanceShop
3Rotisserie Knob24187-16Spit Knob for Aurora and Echelon GrillsShop
4Meat Holder3613Spit Prongs (Pair)Shop
5Rotisserie Rod3606-30Heavy Duty Spit Rod For Aurora A660, A540 and Regal Series GrillsShop
6Rotisserie Motor3600-02Rotisserie Motor for Aurora, Regal, Custom and Deluxe GrillsShop
7Flavor Grid3064-S-3Stainless Steel Flavor Grids for Choice and Aurora 540 GrillsShop
8Infrared Burner3065A · 2015 - 2019Infrared Burner for A540, A430 and A830 Grills with Hot Surface Ignition (2015-2019)Shop
9Electrode Assembly3199-80Ignitor Electrode and Bracket for Infrared BurnerShop
10Burner3042-50Cast Stainless Steel E Burner for all Aurora A430, A540, and A830 GrillsShop
11Heat Shield Kit24177-05Burner Heat Shield KitShop
12Silicone Gasket24177-06Silicone Gasket OnlyShop
13Air Baffle24194-40Air BaffleShop
14Side Burner Lid24336-31Single Side Burner Lid for PortableShop
15Side Burner Assembly24336-32Side Burner Assembly with shelf for Elite Magnum and Aurora GrillsShop
16Backburner Cover24739-010Backburner Cover for E660 (2009-2012), A660/A540 (2009-2021) and Regal 2 Magnum GrillsShop
17Grid Lifter3519HCooking Grid and Charcoal Basket LifterAsk us
18Large Knob24182-41 · LargePolished Backlit Control Knob (Large) (Pre 2024)Shop
19Convertible RegulatorPR-4Manifold Pressure Regulator, ConvertibleShop
20LED Disk24182-65 · 2016 - CurrentLarge LED Lighted Disk with Connection Kit for Echelon Diamond and Aurora Series (2014-2023)Shop
21Small Knob24182-42 · SmallPolished Backlit Control Knob (Small) (Pre 2024)Shop
22Drip Tray3084Drip Tray for Echelon, Aurora and Magnum GrillsShop
23LED Disk24182-66 · 2016 - CurrentSmall LED Lighted Disk with Connection Kit for Echelon Diamond and Aurora Series (2014-2023)Shop
24Drip Tray Liner3557-12Drip Tray Foil Liners for Pre-2020 Grills, CaseShop
25Light Switch24182-48Aurora, Echelon, and E660 Griddle Light Switch (2020)Shop
26Power Supply24182-18 · Hot Surface IgnitionTransformer For Built-In Aurora Series Grills and Side Cookers with Hot Surface IgnitionShop
27Caster Kit3400-7Caster Kit, Set of 4Shop
28Paper Towel Holder25387-11Paper Towel Holder for Portable GrillsShop
29Handle3900-40Handle, 6-inch Gourmet/Select Style Stainless Doors and CartShop
30Tool Holder25387-12Tool Holder for Portable GrillsShop
31Propane Regulator5110-07Propane Regulator and 24-inch HoseShop
32Folding Shelf24316-15RFold Down Shelf for Aurora A540 and A430 Grills, Right SideShop
33Wire Harness24177-29 · w/ Lights & Hot Surface Ignition (2018-Current)Wire Harness for all Aurora Grills with Hot Surface Ignition (2018-Current)Shop
34Grill Cover25160-20FAurora A540s, Regal 1 or Charcoal Portable Drop Shelf CoverShop
35Valve3008 · For Push to Light ModelsBurner Control Valve, Push-To-Light ModelsShop
36Valve3008-11 · Backburner ValveValve for Backburners, Double Side Burner, Power Burners, Deluxe Slide-In Grills and Searing StationsShop

About the Fire Magic Aurora A540s parts

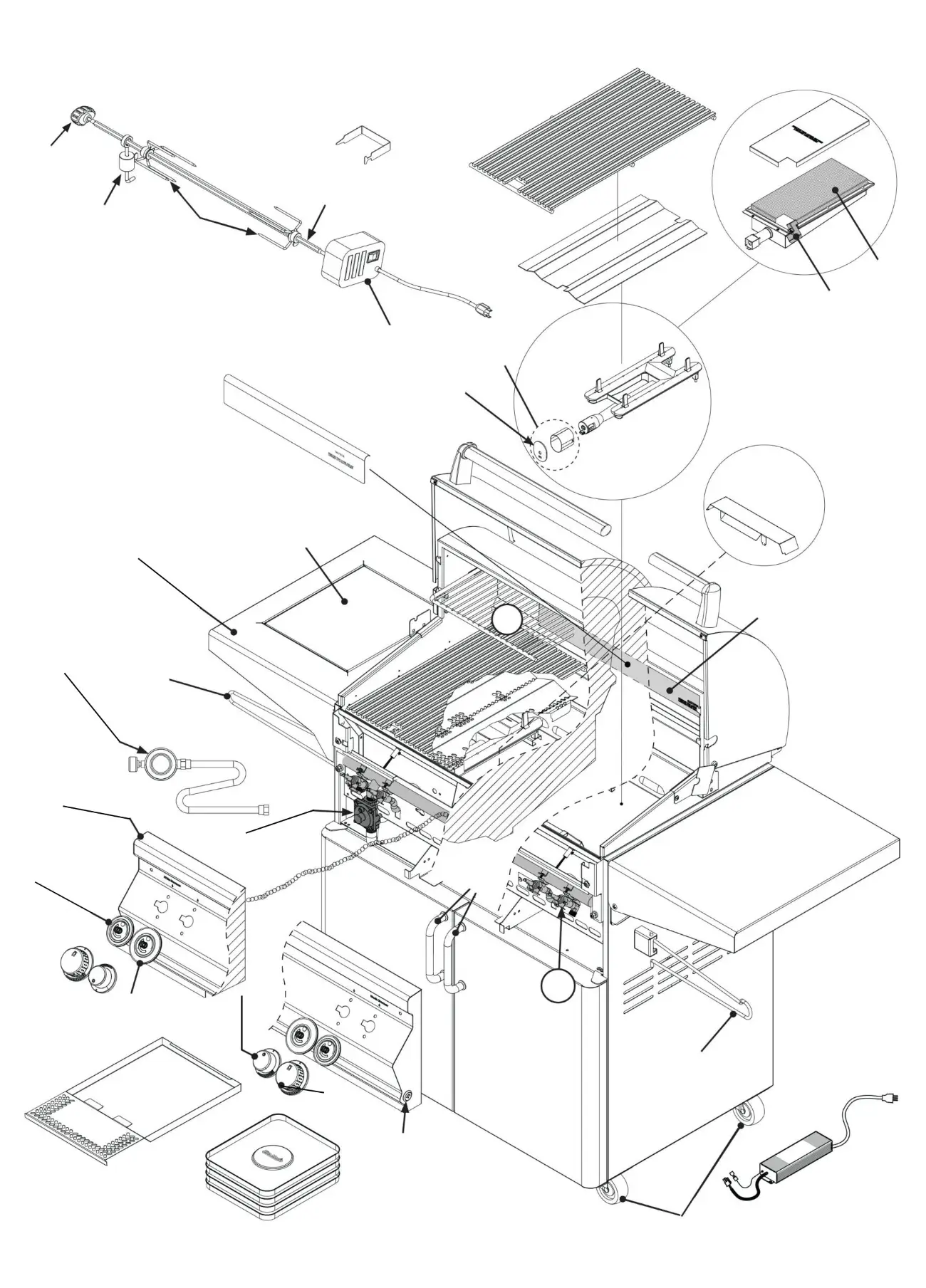

This is the exploded parts diagram for the Fire Magic Aurora A540s portable grill. It shows 36 replacement parts, and 35 of them can be ordered online today. Tap a red dot or pick a part from the list to see its Fire Magic part number. Parts change over the years, so if your grill looks a little different, text us a photo and we’ll confirm the fit.
