Fire Magic Echelon E660s Parts Diagram

Portable Tap a red dot or pick from the parts list.

Parts diagram

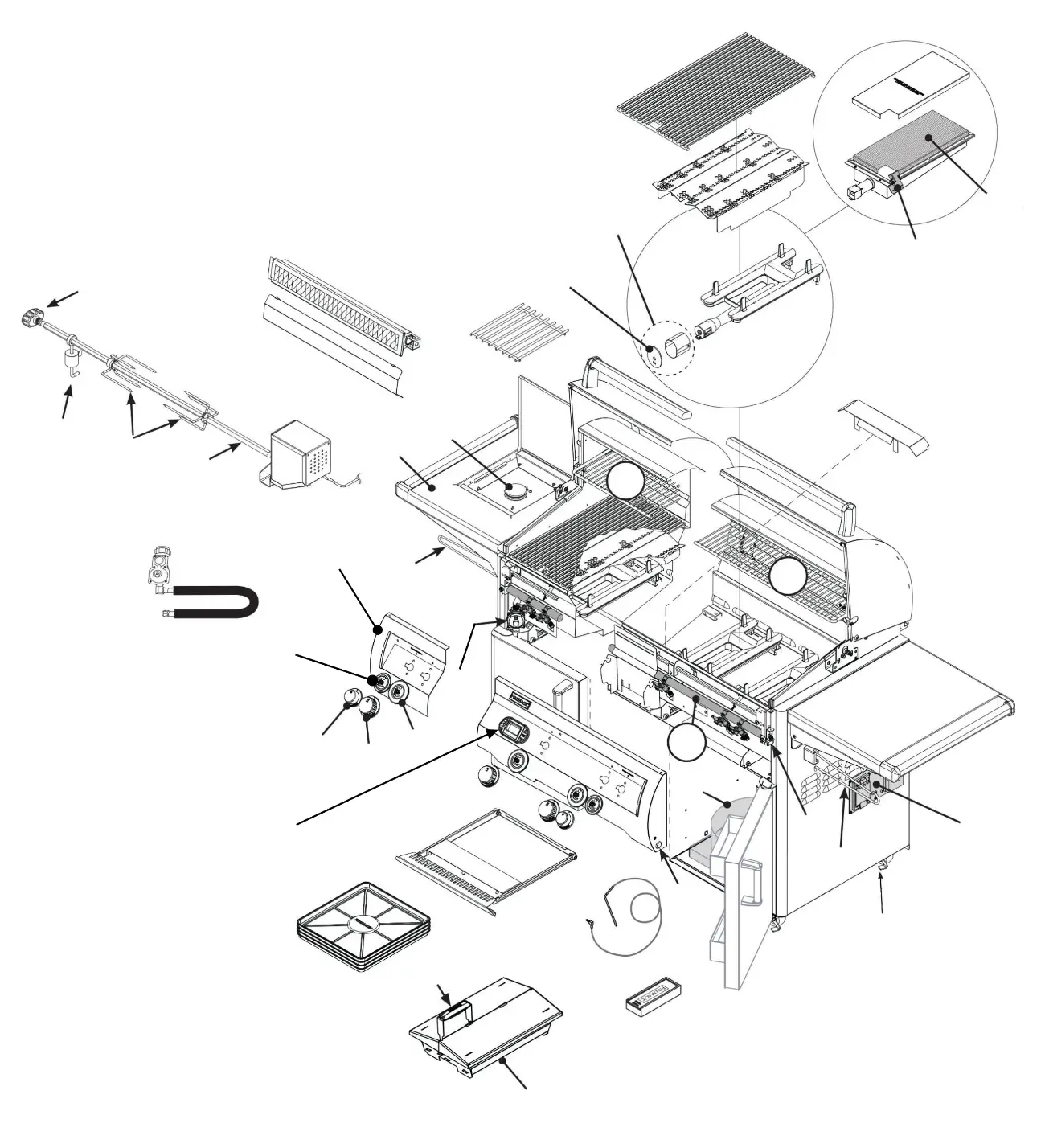

Fire Magic Echelon E660s exploded parts diagram showing 39 replacement parts

About the Fire Magic Echelon E660s parts

This is the exploded parts diagram for the Fire Magic Echelon E660s portable grill. It shows 39 replacement parts, and 38 of them can be ordered online today. Tap a red dot or pick a part from the list to see its Fire Magic part number. Parts change over the years, so if your grill looks a little different, text us a photo and we’ll confirm the fit.

Other Echelon Diamond diagrams

Echelon E660iEchelon E790iEchelon E1060iEchelon E790sEchelon E1060s

Not sure which model you have?

On most Fire Magic grills the model name is on the grill head or the control panel, and it’s also printed in your owner’s manual. The serial number tag is under the drip tray, inside the left door on cart grills, or behind the control panel. Send us a photo and we’ll tell you exactly what you have.
