Fire Magic Monarch Magnum Portable Parts Diagram

Portable Tap a red dot or pick from the parts list.

Parts diagram

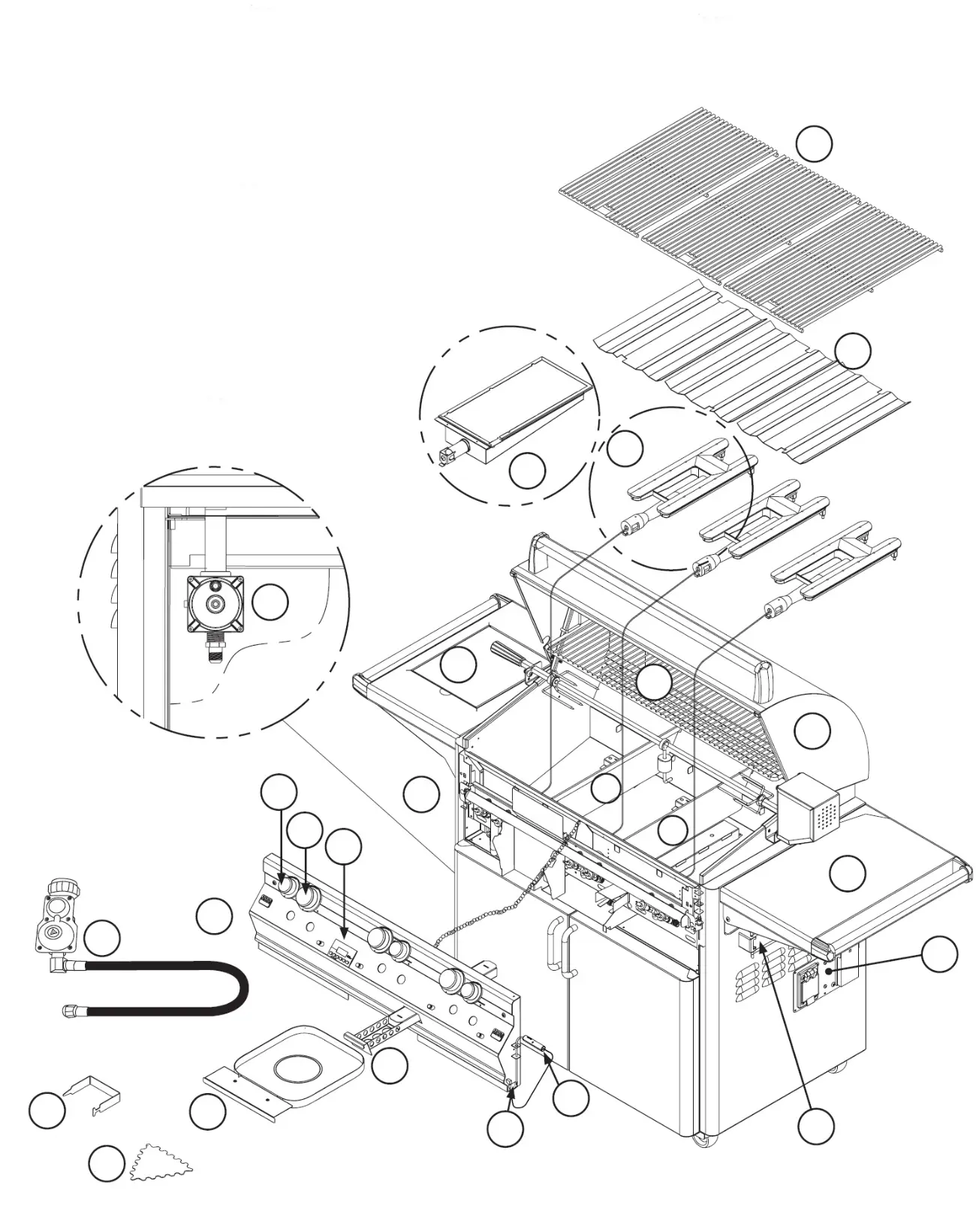

Fire Magic Monarch Magnum Portable exploded parts diagram showing 21 replacement parts

About the Fire Magic Monarch Magnum Portable parts

This is the exploded parts diagram for the Fire Magic Monarch Magnum Portable portable grill. It shows 21 replacement parts, and 18 of them can be ordered online today. Tap a red dot or pick a part from the list to see its Fire Magic part number. Parts change over the years, so if your grill looks a little different, text us a photo and we’ll confirm the fit.
