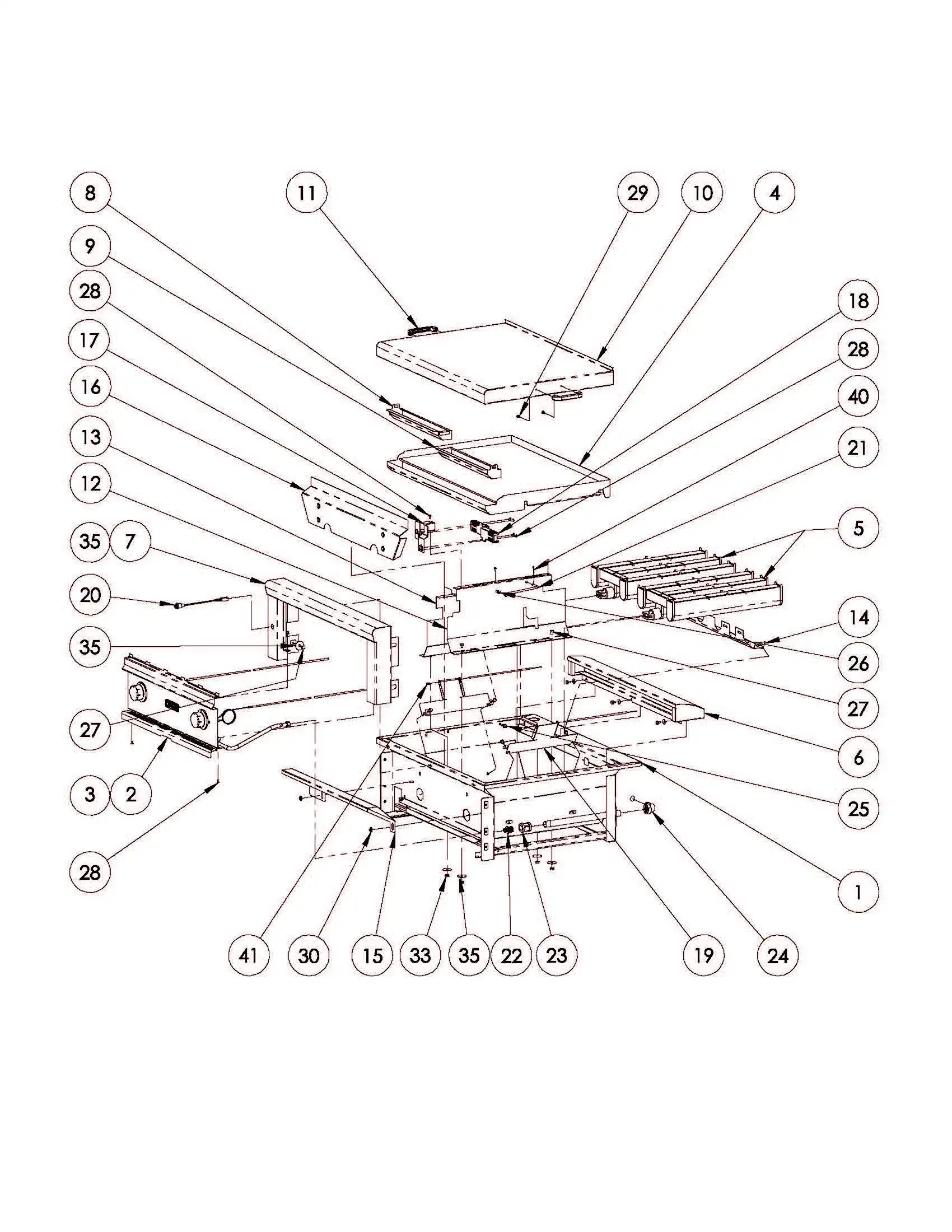

1 · Firebox Weld Assy, 30AG 2 · Valve Panel, LP, Assembly 3 · Valve Panel, NG, Assembly 4 · Plate, Griddle, 30" Assy 5 · Burner, PS2, AG30 6 · Hood Weldment, Asado 7 · Bullnose Weldment, Asado 30” 8 · Drip Tray Wldmt, LH 9 · Drip Tray Wldmt, RH 10 · Cover, Asado 11 · Handle, 4" Stainless Pull 12 · Divider, Firebox, RH 13 · Divider, Firebox, LH 14 · Burner Hanger, Rear, 30" All-Trident 15 · Retainer, Insulation, 30” 16 · Shield, Heat, Inner 17 · Saddle Bracket, Igniter 18 · Igniter Harness Assy 19 · Brkt, Mount, Temp Probe 20 · Light Switch + Harness, Blue Lighted 21 · Rod, Kickstand 22 · Fitting, Adap, 3/8 Tube To 1/2 Nptf 23 · Union (Coupler) 1/2" Blck Iron 24 · Elbow, Street, 1/2" 90 Degree-NG Only 25 · Screw, Shldr, 1/4-20 X 1/2 , SHC, SS, 5/16 Dia X 1/4 26 · Screw, Shldr, #10-32 X 1/4, Sltd, SS, 1/4 Dia X 5/8 27 · Bolt, Hex Head, 1/4-20 X 3/8" S/S 28 · SCREW #8-32 x 3/8 PH TRUSS HEAD S/S 29 · Screw 28 · SCREW #8-32 x 3/8 PH TRUSS HEAD S/S 28 · SCREW #8-32 x 3/8 PH TRUSS HEAD S/S 30 · Nut, Combination (For Heat Shield) 33 · Nut, 1/4-20, Keps Ext Tooth, SS 35 · Washer, 1/4, Flat, SS, 1-1/4 O.D. 35 · Washer, 1/4, Flat, SS, 1-1/4 O.D. 35 · Washer, 1/4, Flat, SS, 1-1/4 O.D. 41 · Clip, Retaining, Thermocouple 27 · Bolt, Hex Head, 1/4-20 X 3/8" S/S 40 · Cotter Pin, .093 X .750
