True Flame 25-Inch Built-In Gas Grill (TF25) Parts Diagram
Diagram 25-inch, 3-burner built-in gas grill

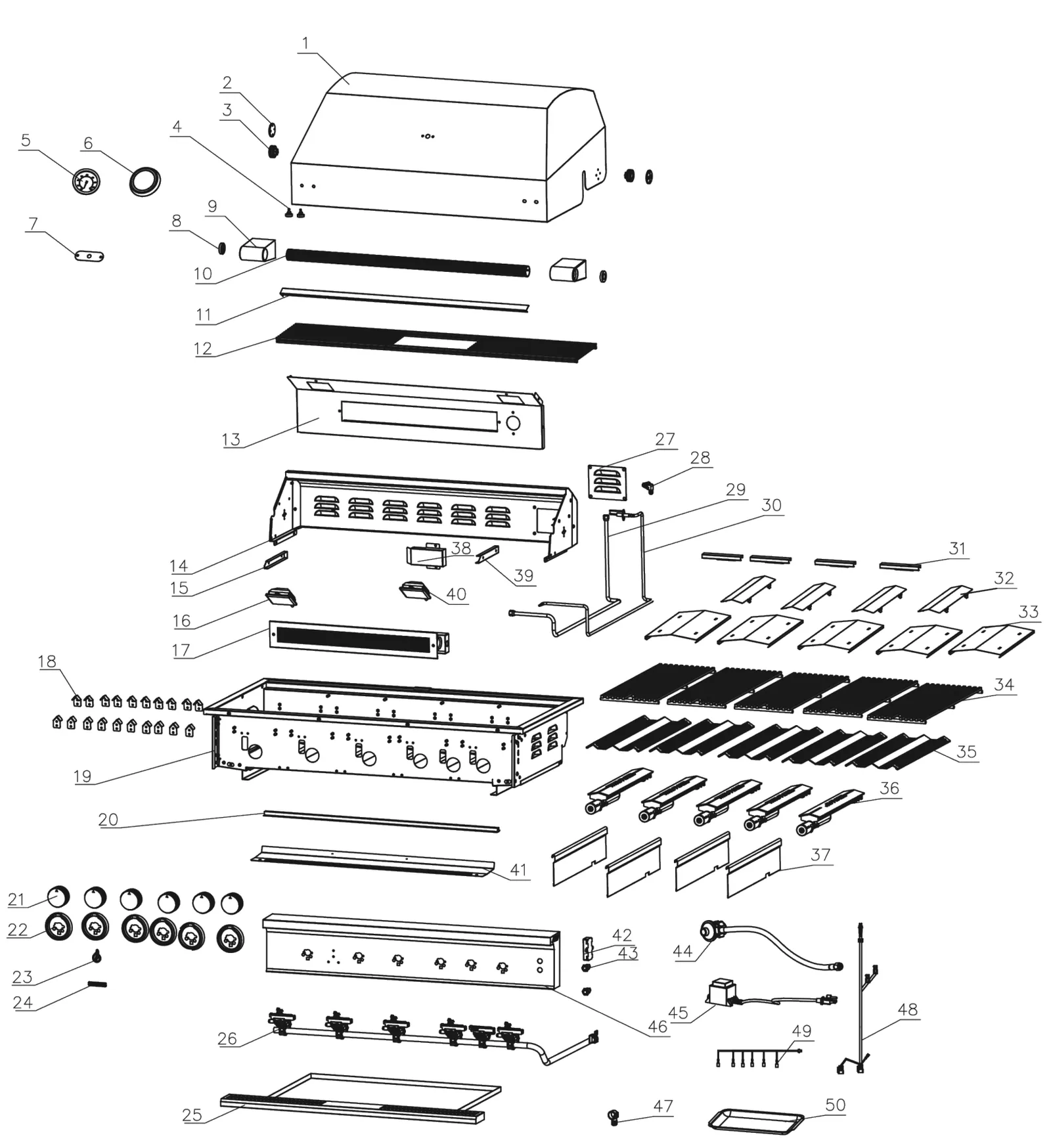

Drawing from the True Flame manual (40 inch grill shown). The 25 and 32 inch grills use the same item numbers. The TF25 has no rear burner, so items 27 to 30 and 38 are not used on it.
About the TF25 parts
This page shows the exploded parts diagram and full parts list for the True Flame 25-Inch Built-In Gas Grill (TF25). It lists 52 replacement parts with the quantity the TF25 uses. Tap a red dot or pick a part from the list to see its True Flame part number. True Flame parts are coming soon to our online store; text or call us if you need one now. A few part numbers in the manual differ from the current True Flame parts list. Where they differ we show the current number, which is the one to order, and note the manual number.
Source: True Flame Gas Grill User Manual, models TF25, TF32, TF40 (rev. 060225), and the True Flame parts list.
Find your True Flame model number
- Find the rating plate. It lists the model, the gas type and the serial number.
- Pull out the drip tray and look on the grill body and the underside of the drip tray, or check the front of your owner’s manual.
- Text us a photo of the plate. We’ll tell you exactly which parts fit.
Reading a True Flame model number
The letters are the product and the number is the width in inches. TF32 is a 32 inch True Flame grill, TFE25 is a 25 inch E Series grill and TFG30 is the 30 inch griddle.
The end of the model number is the gas type. On TF grills a trailing L means propane, like TF32L, and no L means natural gas. On E Series grills it is spelled out, like TFE25-NG or TFE25-LP. Valves, orifices and regulators are different for each gas.
TF or TFE?
They are two different grill lines. TFE is the E Series, with tube burners and round grates. TF with the size right after has cast burners, square grates and lights. Many parts are different, so match the letters on your plate.
Want us to double-check the fit? Text us or call (866) 348-4618.
