Viking VQBO4121 Cabinet Parts

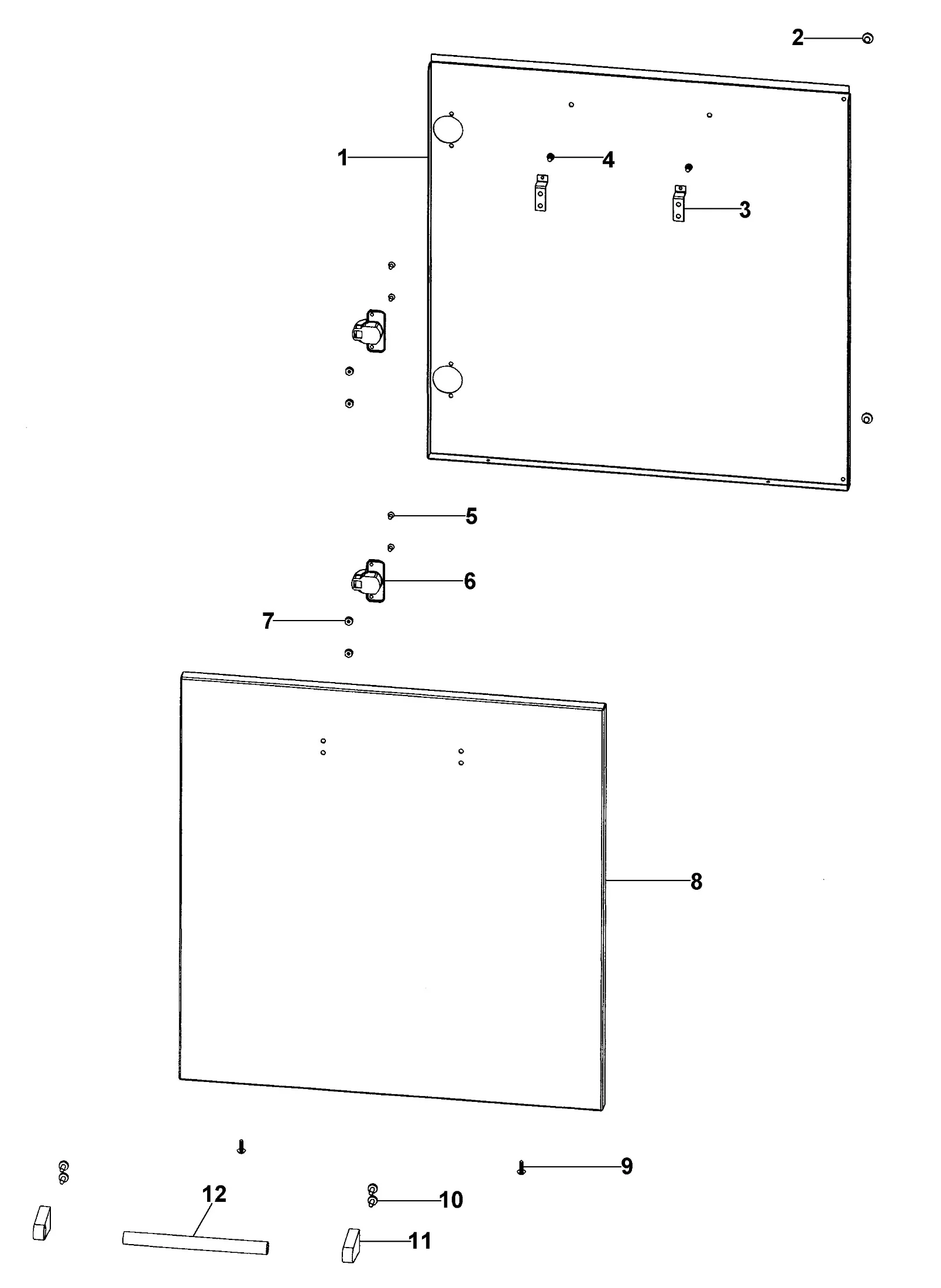

1 Door Assembly

−Fit+

12 · Cabinet Handle8 · Outer Door (VQWO4121)7 · 8-32 Hex Kep Nut S.S.6 · Door Hinge (BBQ)3 · Handle Bracket (VBO/VTPO18)1 · Inner Door (VQBO4121)2 · Grommet Bumper4 · 8 X 1/2 Tek Sheet Metal Screw5 · 8-32X3/8 PH Ctr. Mach.screw S.S.9 · #8 X 1/2" P.H. Flat Top Truss U/c #2 Type Ab 30 Ss/ Bright Nickel Plate10 · #10-24 X 1/2" Ph.tr. M.s. SS11 · Handle End Cap Chrome Outdoor Cabinet

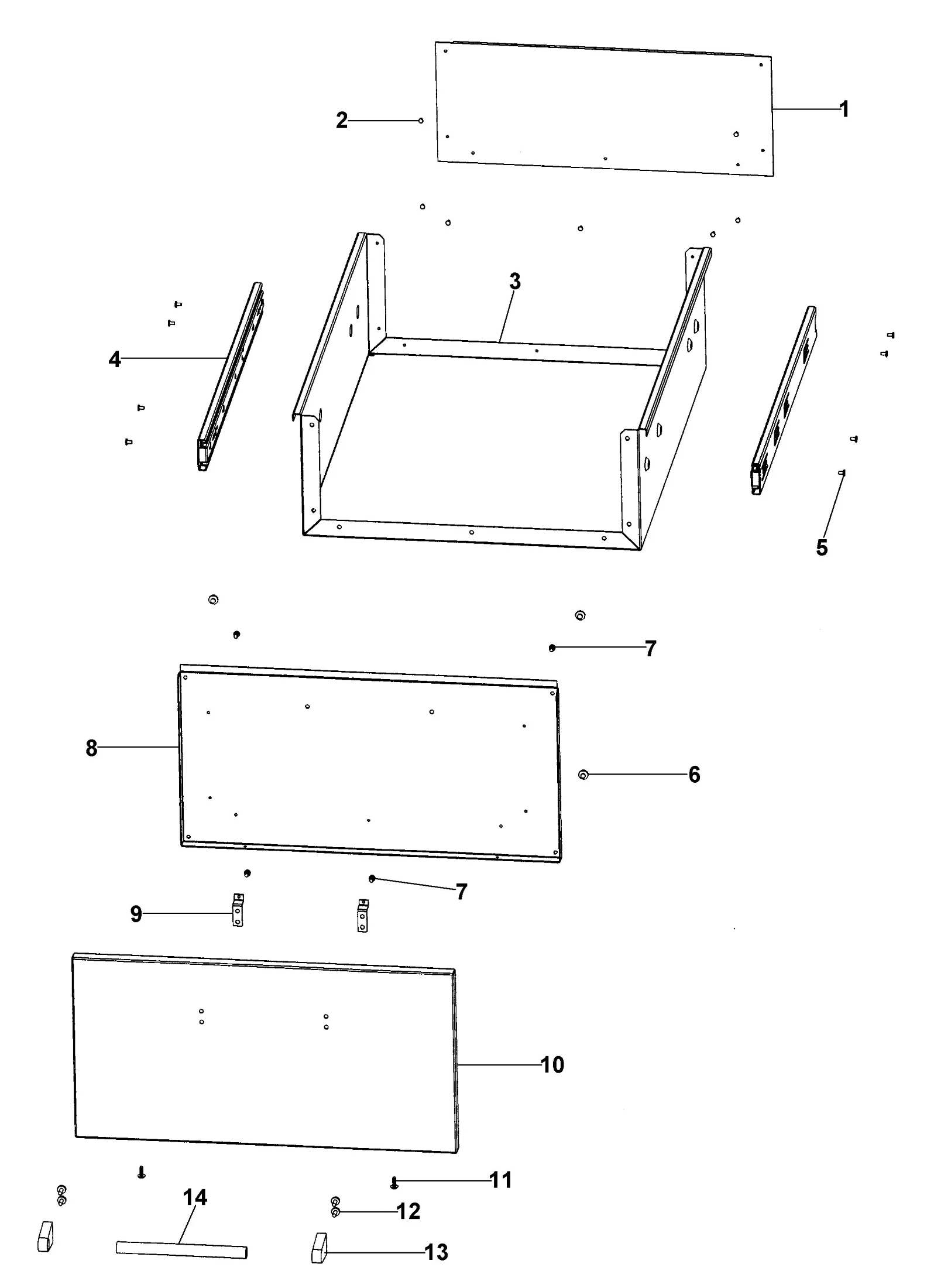

2 Drawer Assembly

−Fit+

14 · Cabinet Handle8 · Inner Drawer Door (VQBO4121)7 · 8 X 1/2 Tek Sheet Metal Screw6 · Grommet Bumper7 · 8 X 1/2 Tek Sheet Metal Screw4 · Slide3 · Drawer (VQBO4121)2 · Pop RIVOT-SS42 SS9 · Handle Bracket (VBO/VTPO18)10 · Outer Drawer Door (VQBO4121)11 · #8 X 1/2" P.H. Flat Top Truss U/c #2 Type Ab 30 Ss/ Bright Nickel Plate12 · #10-24 X 1/2" Ph.tr. M.s. SS13 · Handle End Cap Chrome Outdoor Cabinet1 · Drawer Rear (VQBO4121)5 · Pop Rivet ( 0.125 Gr X 0.156 Dia )

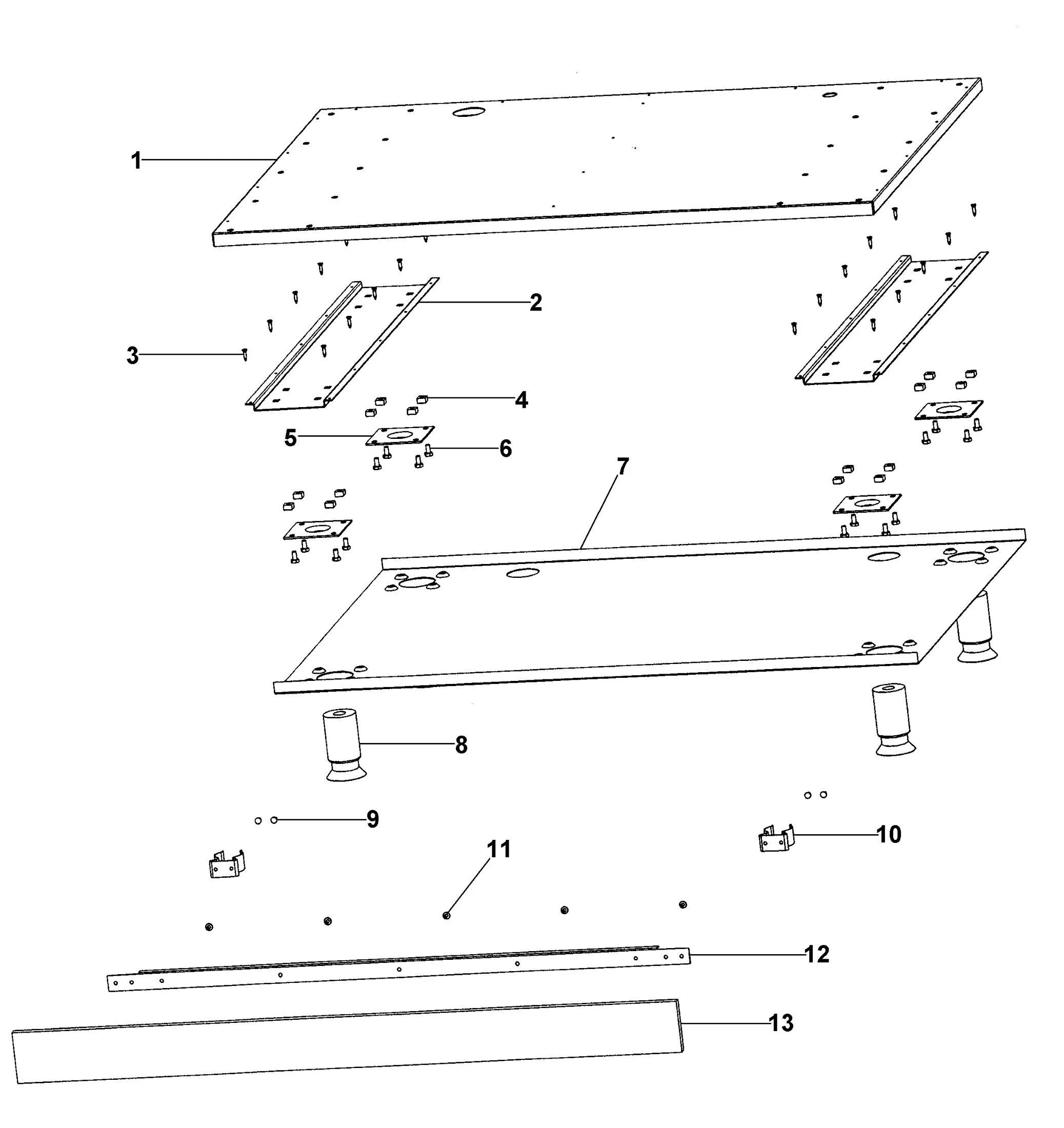

3 Lower Unit Area

−Fit+

11 · 10 X 1/2 Ph.tr.hd.sms.8 · Leg7 · Bottom Cover (VQWO4120)4 · 1/4-20 Cage Nut SS3 · #8 X 3/4 Flat HD Tek. SS2 · Leg Brace (VQBO3021)1 · Main Bottom (VQWO4120)5 · Leg Plate - 3/4" Threaded Hole6 · Hex HD. Bolt - 1/4-20 X 1/29 · Worktop Pop Rivet (Before 4/92)10 · Lower Acc Pan Spring Clamp (SYWE1)12 · Kick Plate Mount Brkt (VQWO4120)13 · Kick Plate (41") 42.000" X 3.250

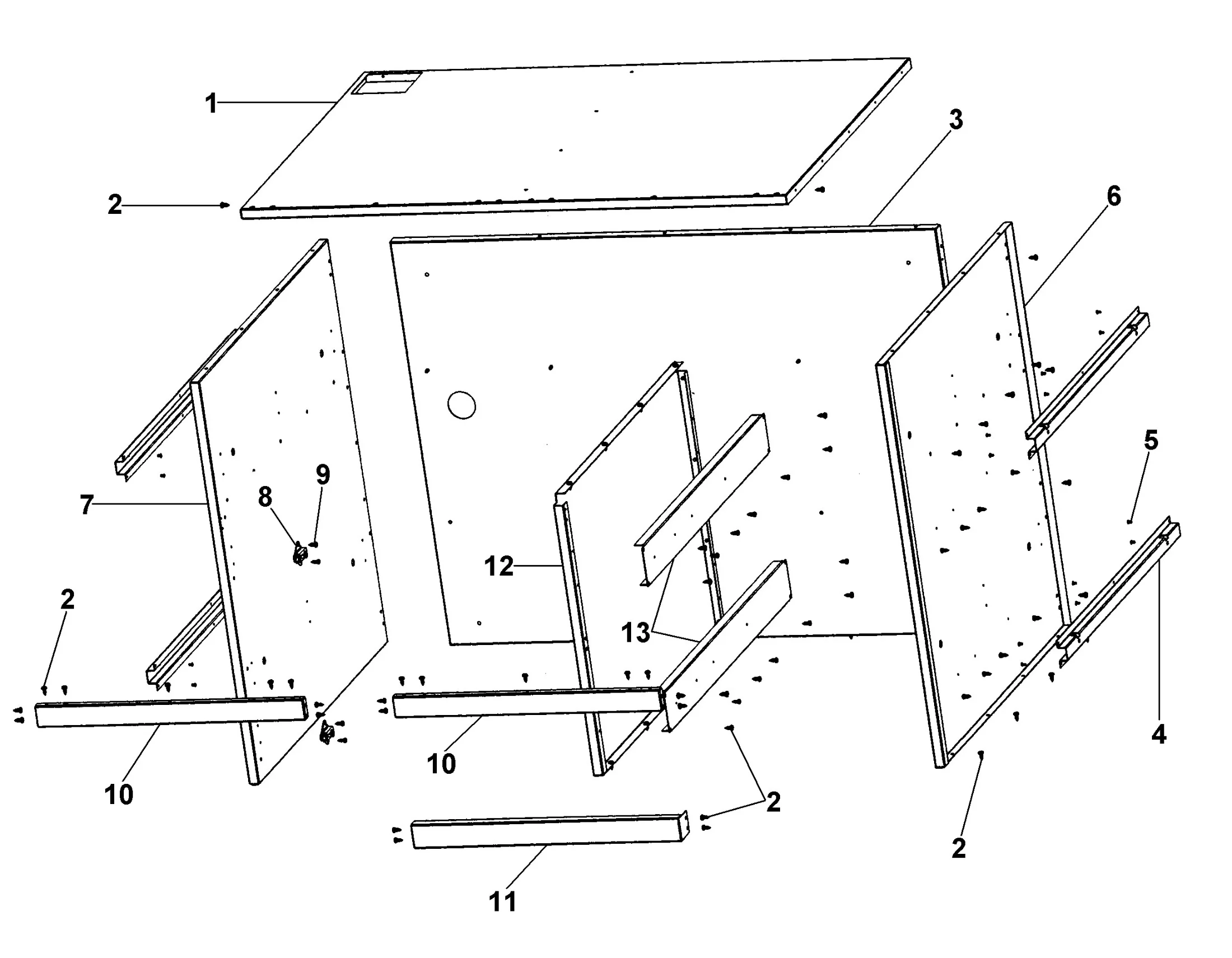

4 Main Cabinet Area

−Fit+

11 · Drawer Divider (VQBO4121)2 · #10 X 1/2" Pan Phil. Tek.ss2 · #10 X 1/2" Pan Phil. Tek.ss10 · Top Support (VQBO4121)10 · Top Support (VQBO4121)4 · Mount Bracket (Cabinets)2 · #10 X 1/2" Pan Phil. Tek.ss7 · LH I/s Side (VQBO3021)8 · Door Hinge Receiver (BBQ)2 · #10 X 1/2" Pan Phil. Tek.ss6 · RH I/s Side (VQBO3021)3 · Cabinet Rear (VQWO41)1 · Cabinet Top (VQWO4120)9 · 8 X 1/2 Tek Sheet Metal Screw5 · Pop RIVOT-SS42 SS12 · I/s Wall (VQBO3021)13 · Drawer Mount Bracket (VQBO3021)
