Viking VQGFS5361SS01 Grill Parts

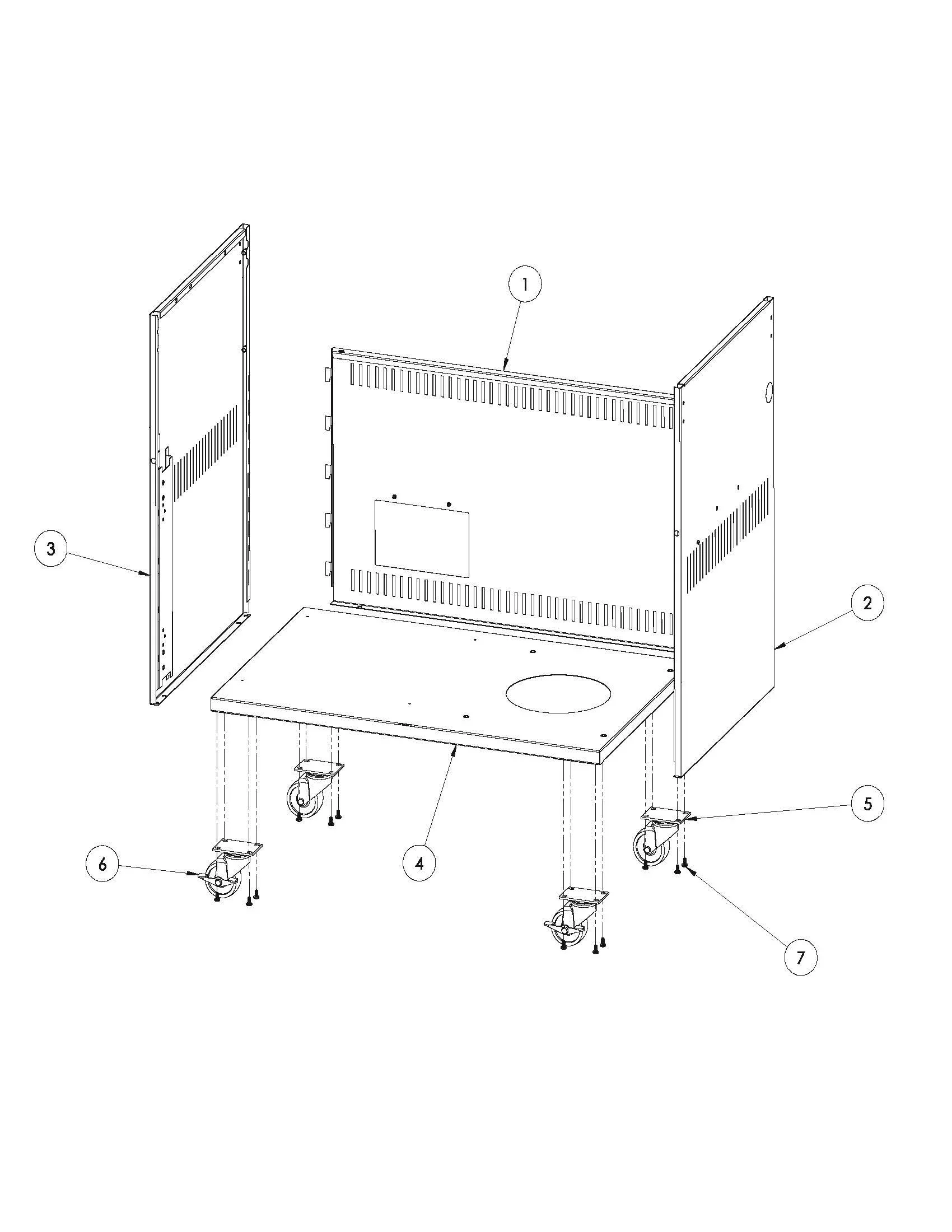

1 Cabinet Body

−Fit+

1 · Back Panel Assembly, L362 · Side Panel Assembly, RH, Pre3 · Side Panel Assembly, LH, L27 & L364 · Base Assembly, L365 · Caster, 3", W/o Brakes6 · Caster, 3" W/brake7 · Screw 1/4-20 X 1/2 Pan Head Torx Nylok

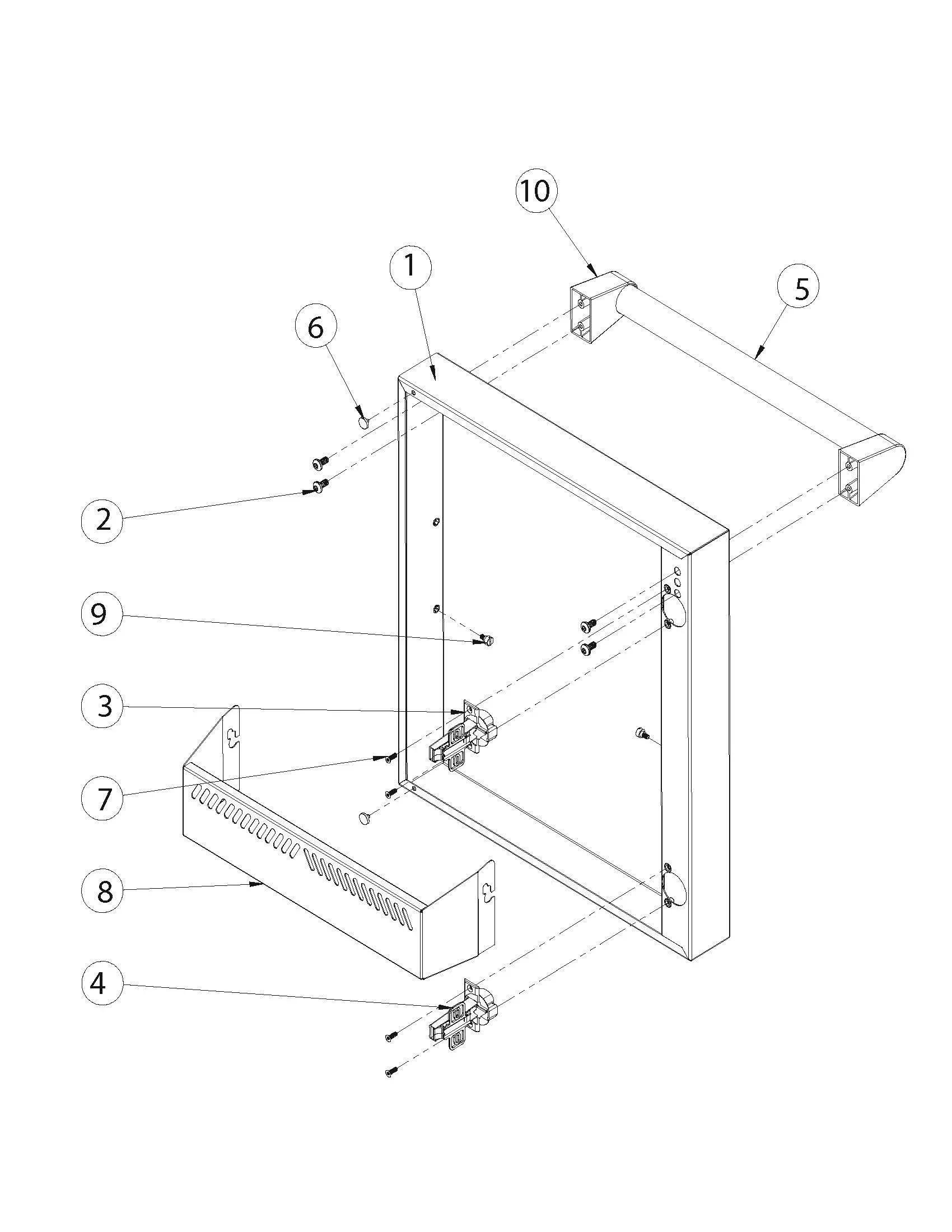

2 LH Door

−Fit+

1 · Door Weldment (LH), V54, V362 · Screw 1/4-20 X 1/2 Pan Head Torx Nylok3 · Hinge, Soft Close4 · Mounting Plate, Hinge, Soft Close5 · Cart, Handle, 36", 546 · Hood Bumper, .500 Dia7 · Screw, #8-32 X 1/2 Flat Head Torx, Nylok8 · Bottle Holder Ldr 369 · Screw, Shldr, #10-32 X 1/4, Sltd, SS, 1/4 Dia X 1/810 · End Cap, Assembly, Door Handle

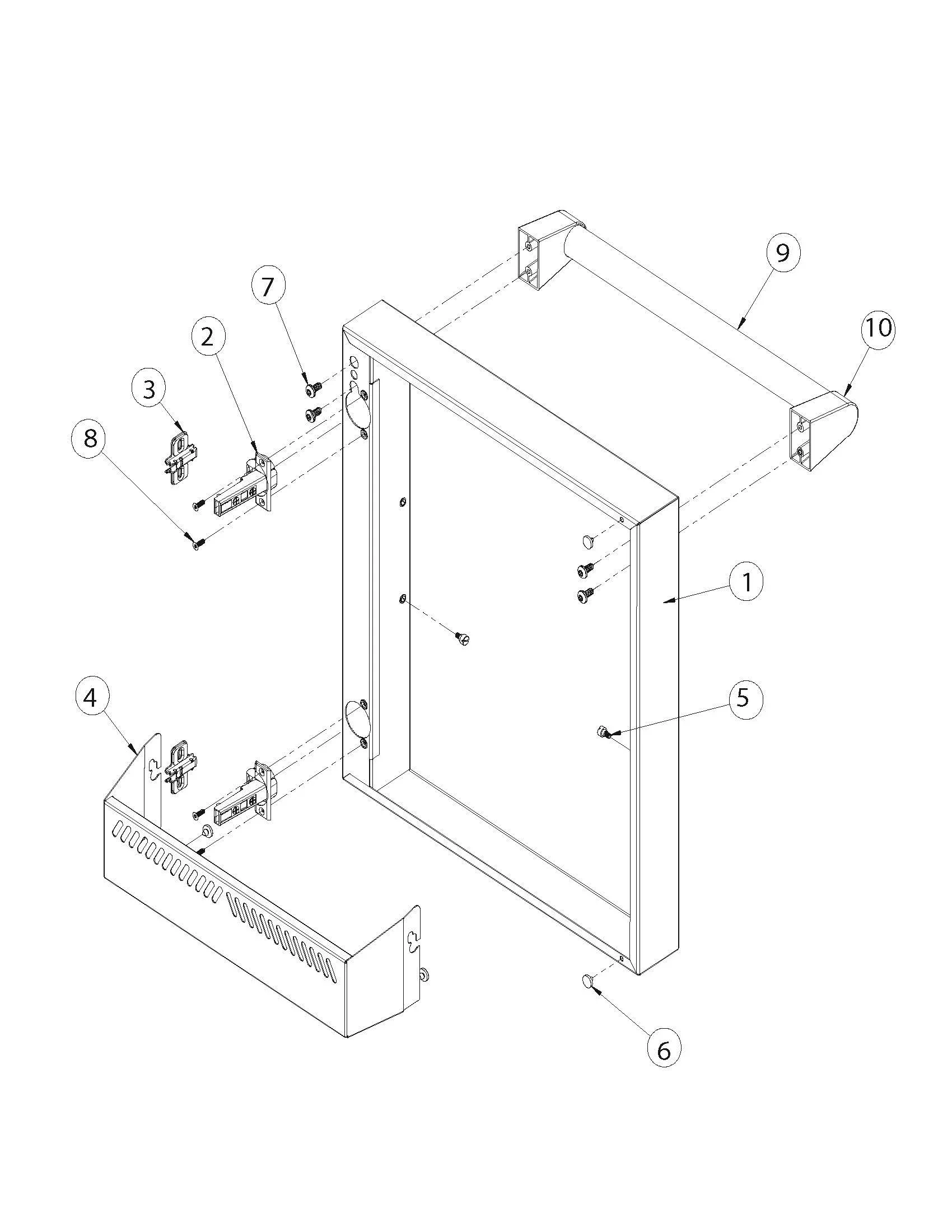

3 RH Door

−Fit+

1 · Door Weldment (RH), V54, V362 · Hinge, Soft Close3 · Mounting Plate, Hinge, Soft Close4 · Bottle Holder Ldr 365 · Screw, Shldr, #10-32 X 1/4, Sltd, SS, 1/4 Dia X 1/86 · Hood Bumper, .500 Dia7 · Screw 1/4-20 X 1/2 Pan Head Torx Nylok8 · Screw, #8-32 X 1/2 Flat Head Torx, Nylok9 · Cart, Handle, 36", 5410 · End Cap, Assembly, Door Handle

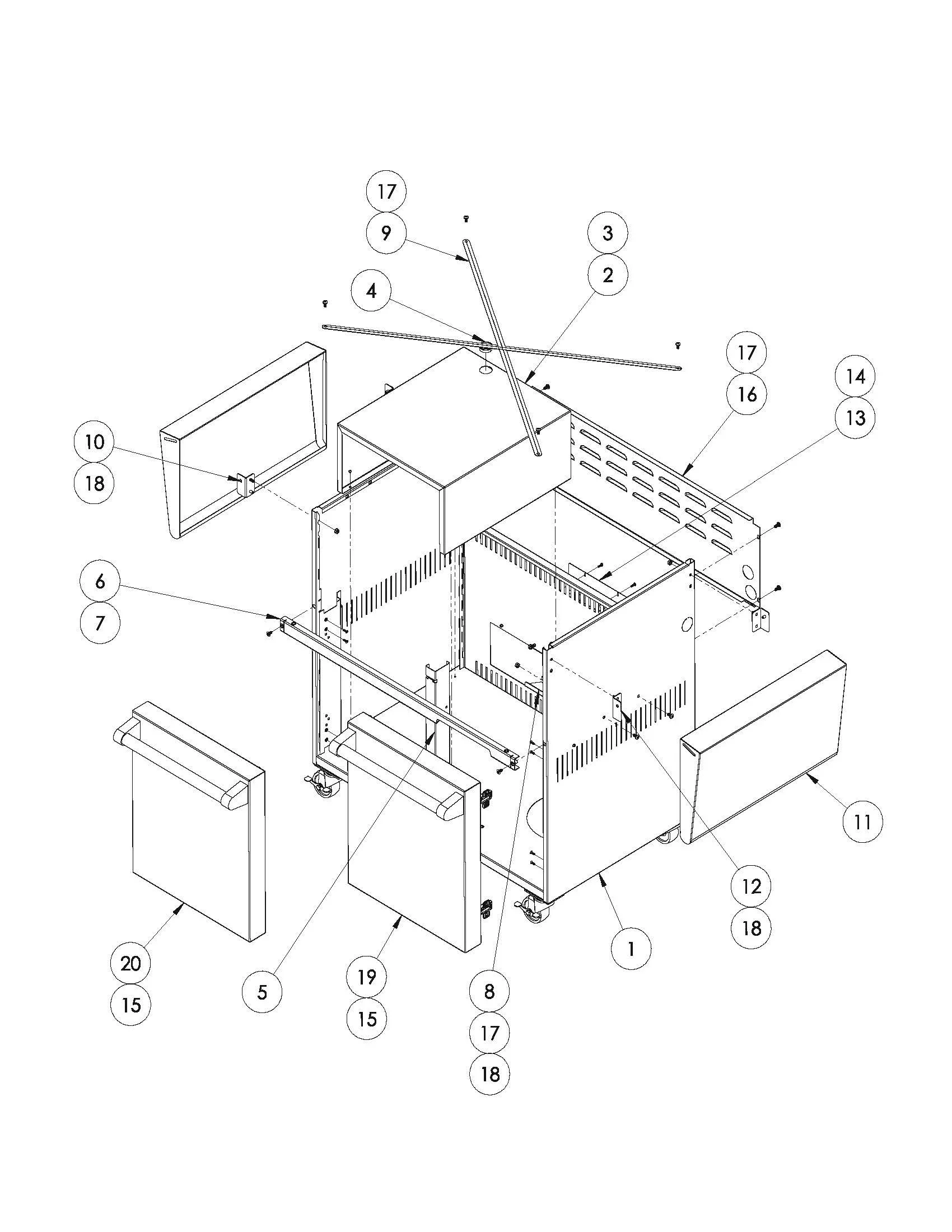

4 Cart Assembly

−Fit+

1 · Cabinet Body Sub-assy, L362 · Shelf, L36 Inner3 · Rivet, 5/32 x 3/8, Blind, SS4 · Grommet, Plastic, 1" ID x 1-3/8" OD5 · Brace, Front, LH6 · Cross Channel Assembly, L367 · Screw, 1/4-20 X 1/2 Flat Head Torx, Nylok8 · Tank Bracket Assembly9 · Brace, Cross, L3610 · Brkt, Shelf, RH, Movable, Wldmt11 · Side Shelf, Pro 36/27 '0712 · Brkt, Shelf, LH, Movable, Wldmt13 · Assembly, Mounted 5-AMP Power Supply14 · Screw, #8-32 X 1/2 Pan Head Torx, Nylok15 · Screw, #8-32 X 1/2 Flat Head Torx, Nylok15 · Screw, #8-32 X 1/2 Flat Head Torx, Nylok16 · Panel, Access Back, L3617 · Screw 1/4-20 X 1/2 Pan Head Torx Nylok17 · Screw 1/4-20 X 1/2 Pan Head Torx Nylok17 · Screw 1/4-20 X 1/2 Pan Head Torx Nylok18 · Nut, 1/4-20, Lkn, Steel, W/esl18 · Nut, 1/4-20, Lkn, Steel, W/esl18 · Nut, 1/4-20, Lkn, Steel, W/esl19 · Door Assembly (RH), V54, V3620 · Door Assembly, (LH), V54, V36

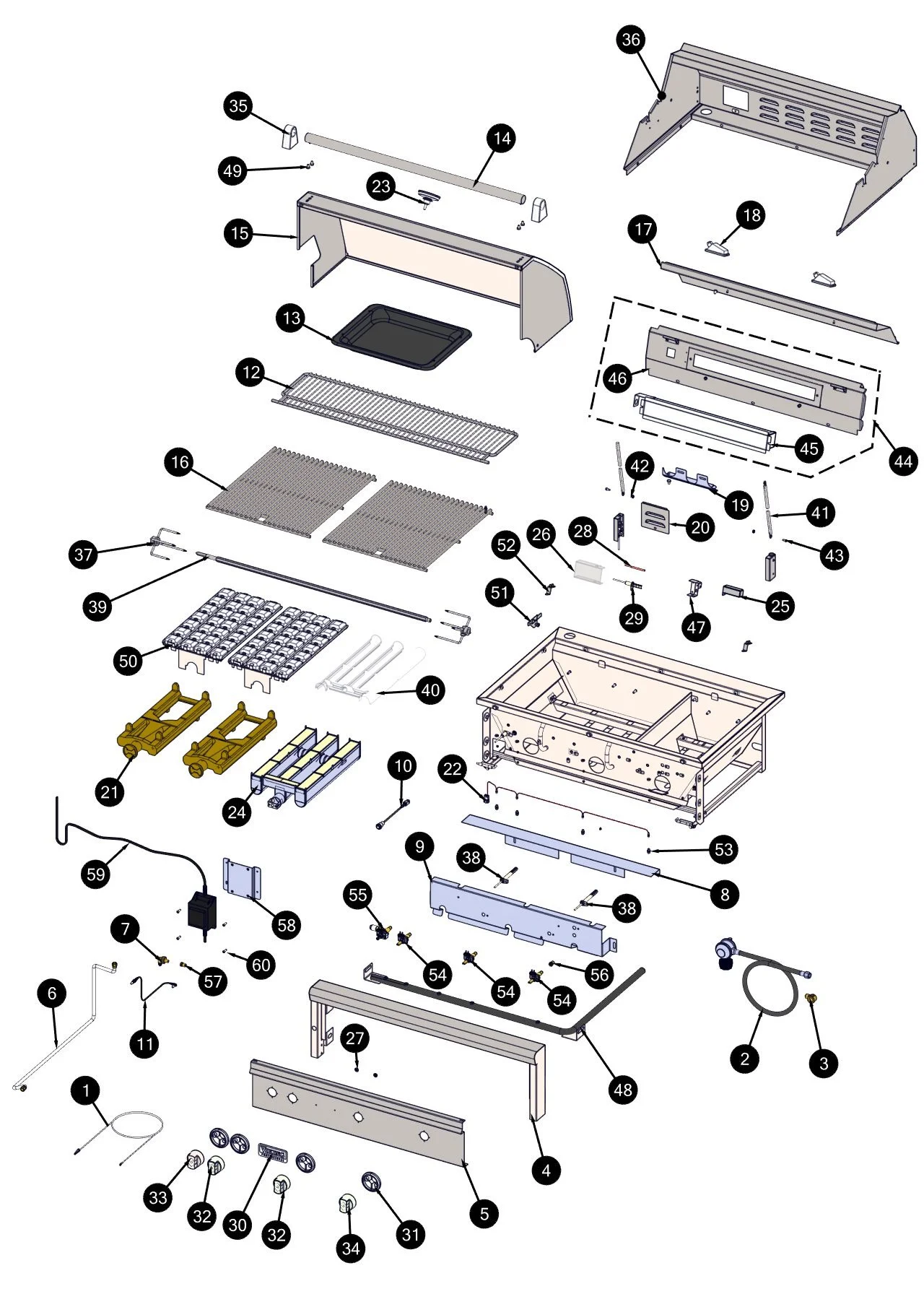

5 Grill

−Fit+

36 · Rear Hood Weld Assembly 36 (07-08)35 · End Cap, Assembly, Door Handle14 · Hood Handle, 3623 · Hood Thermometer, Sealed17 · Light Panel For Dual Lights, 3618 · Hood Light Assembly, Dual W/10W Bulb49 · Bolt, Hex Head, 1/4-20 X 3/8", S/S15 · Front Hood Assembly, 3613 · Drip Pan, porcelain12 · Warming Shelf, Pro 3616 · Grate- 16 1/2" X 18 1/237 · Spit Fork, Heavy Duty, All Sizes39 · Spit Rod, Pro 3650 · Complete Tray W/briquetties & Chips40 · Screen Replacement, Prosear 2 Burner, 3651 · Left Retaining Bracket, Warming Rack52 · Front Retaining Bkt, Warming Rack26 · IR Igniter Cover (36", 42", 54")28 · IR Thermocouple42 · Lock Nut, #8-32, S/S46 · IR Panel Weldment, L3645 · IR Burner, Small44 · IR Panel Assembly, 36" (Includes Burner)41 · Extension Spring, 3643 · Shoulder Screw25 · Gas Collector Box, IR Rotis19 · Burner Support, PROSEAR-2 3620 · IR Access Cover29 · IR Electrode, Hot Surface47 · IR Bracket - LH21 · H-burner (Brass)24 · Burner PS2, No Screen 27/3610 · Light Switch + Harness, Blue Lighted22 · LED Harness Assembly, 36"/42" (Includes The LED)9 · Heat Shield, Prosear 3638 · Igniter, All Sear38 · Igniter, All Sear55 · IR Burner Valve W/ Microswitch54 · Main Burner Valve W/microswitch54 · Main Burner Valve W/microswitch54 · Main Burner Valve W/microswitch56 · Orifice, Burner, LP (#54 Short) Prosear8 · Retainer, Insulation53 · LED Holder59 · Transformer, 5 Amp, All Pro7 · IR Brass Elbow, 7/16-20 Male Thread6 · Flex Hose, 9MM X 38" W/ 7/16 Fittings57 · Orifice, IR Rotis., LP (#57 Short)60 · Screw, #8-32 X 5/8 PH. Pan HD, S/S58 · Transformer Mounting Brkt B/i & F/s1 · Alternate Lighting Device, Match Holder11 · Rotiserie External Cord33 · Knob, Rotis, Stainless32 · Knob, Burner, Stainless30 · Logo (All Ranges) *Bk/chr 307997W32 · Knob, Burner, Stainless34 · Knob, Prosear, Stainless31 · Bezel, Knob5 · Front Panel, Pro 364 · Bullnose Assembly, Pro 3627 · Nut, 1/8, Speed, Steel, Self Threading48 · Manifold Pipe/brkt Assembly, 362 · Regulator W/30" Hose Double Stage-lp3 · Elbow, 3/8" Flare To 1/2" Fip-lp Only

Part numbers come from Viking’s own parts lists. When Viking has replaced a part, we show the new number. Don’t see what you need? Call (866) 348-4618 or text (888) 691-8046.
