Summerset Sizzler 32-Inch Gas Grill (SZR32) Parts Diagram

Diagram 32-inch Sizzler gas grill (current SZR model)

Check your rating plate first. This page is for the SZR32. Summerset has made two generations of each. Older grills say SIZ or SIZPRO, current grills say SZR or SZRPRO. Many parts changed, so match the letters exactly.
Plate says something else?SZR25SZR40SZRPRO32SZRPRO40SIZ26SIZ32SIZ40SIZPRO32SIZPRO40Help me pick

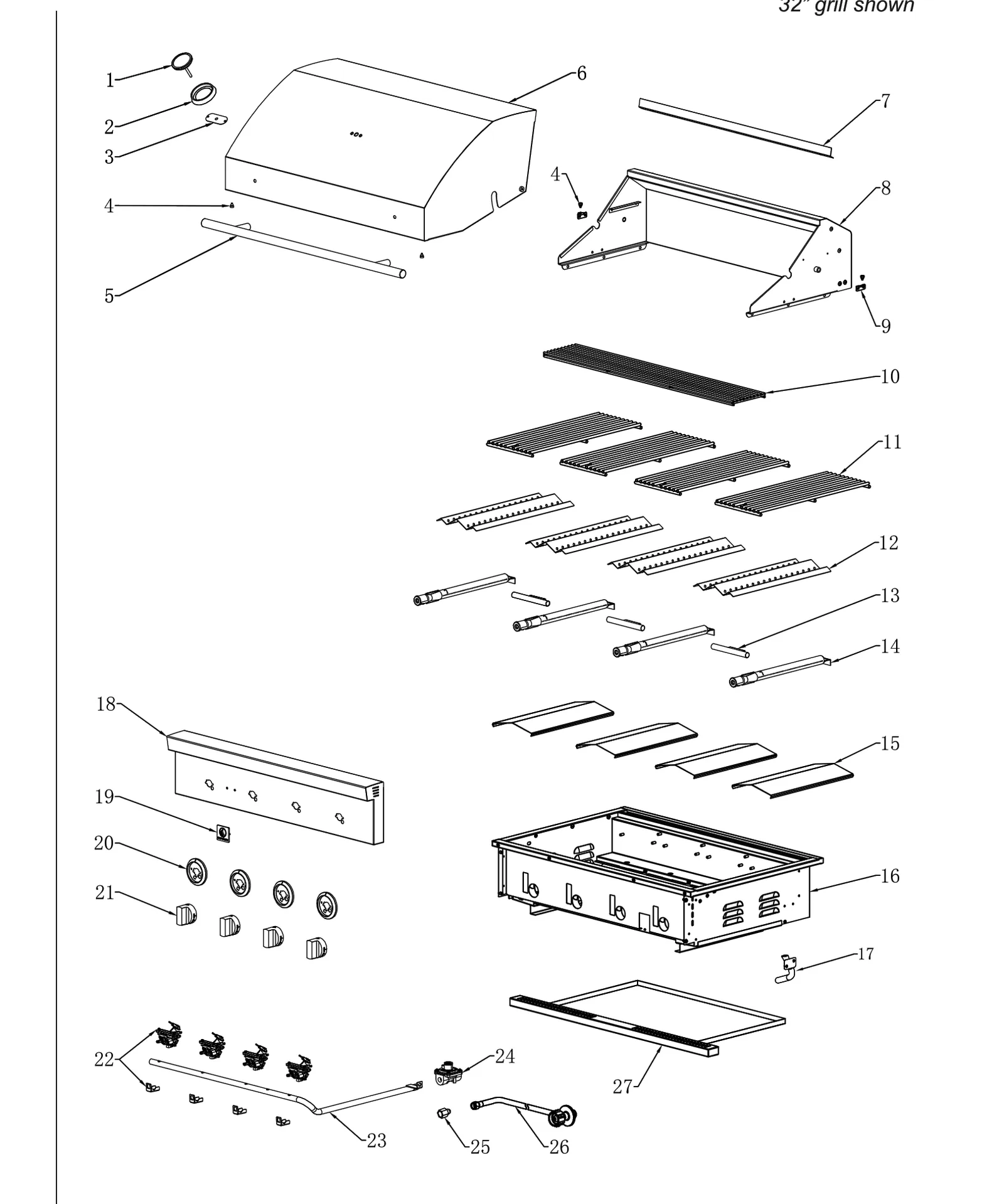

Summerset Sizzler 32-Inch Gas Grill (SZR32) exploded parts diagram

Drawing from the Summerset manual: 32" grill shown. Sizes not drawn use the same item numbers.

More SZR32 parts

These parts are on the official Summerset parts list for this model but are not drawn in the manual.

Hoods, Panels, Lights and Other Parts (2)

  • Summerset Temperature Gauge & Bezel - 12180/12181Temp gauge (black, oval)Part # 12180 · TEMPShop
  • Temp gauge bezelPart # 12181 · TEMP BZLShop

About the SZR32 parts

This page shows the exploded parts diagram and full parts list for the Summerset Sizzler 32-Inch Gas Grill (SZR32), a 32-inch sizzler gas grill (current szr model). It lists 29 replacement parts with the quantity the SZR32 uses, and 10 of them can be ordered online today. Tap a red dot or pick a part from the list to see its Summerset part number. Parts not in our store yet are marked call to check on availability.

Source: Summerset Sizzler (SZR25 / SZR32 / SZR40) Use and Care Manual, replacement parts list (rev. 073026).

Other Sizzler Series (SZR)

SZR25SZR40

Find your Summerset model number

  1. Find the rating plate. It lists the model, the gas type and the serial number.
  2. Look on the outside of the firebox (the grill basin). On some models it is also on the underside of the drip tray.
  3. No luck? The model number is also on the front of your owner’s manual.
  4. Text us a photo of the plate. We’ll tell you exactly which parts fit.
Text Us a Photo(888) 691-8046 Call Us(866) 348-4618

Reading a Summerset model number

The letters are the series and the number is the width in inches. TRLPRO32 is a 32 inch TRL Pro, SZR40 is a 40 inch Sizzler and QST36 is a 36 inch Quest.

The end of the model number is the gas type. -NG is natural gas. -LP or a trailing L (like SZR32L) is propane. Valves, orifices and regulators are different for each gas.

Old or new Sizzler and Sizzler Pro?

The original grills are model SIZ and SIZPRO. The current ones are SZR and SZRPRO. Many parts changed, so check the letters on your plate before you order.

TRL or TRL Pro?

The original TRL came in 26, 32, 38 and 44 inch sizes. The TRLPRO comes in 32 and 40 inch. The TRLD is a separate line.
