Summerset TRL Pro 32-Inch Gas Grill (TRLPRO32) Parts Diagram

Diagram 32-inch TRL Pro gas grill with infrared rear burner, interior lights and LED-lit knobs

Check your rating plate first. This page is for the TRLPRO32. These are three different grills and most of their parts do not swap. Read the letters on your plate right before the size number and match them exactly.
Plate says something else?TRLPRO40TRLD32TRLD44TRL26TRL32TRL38TRL44Help me pick

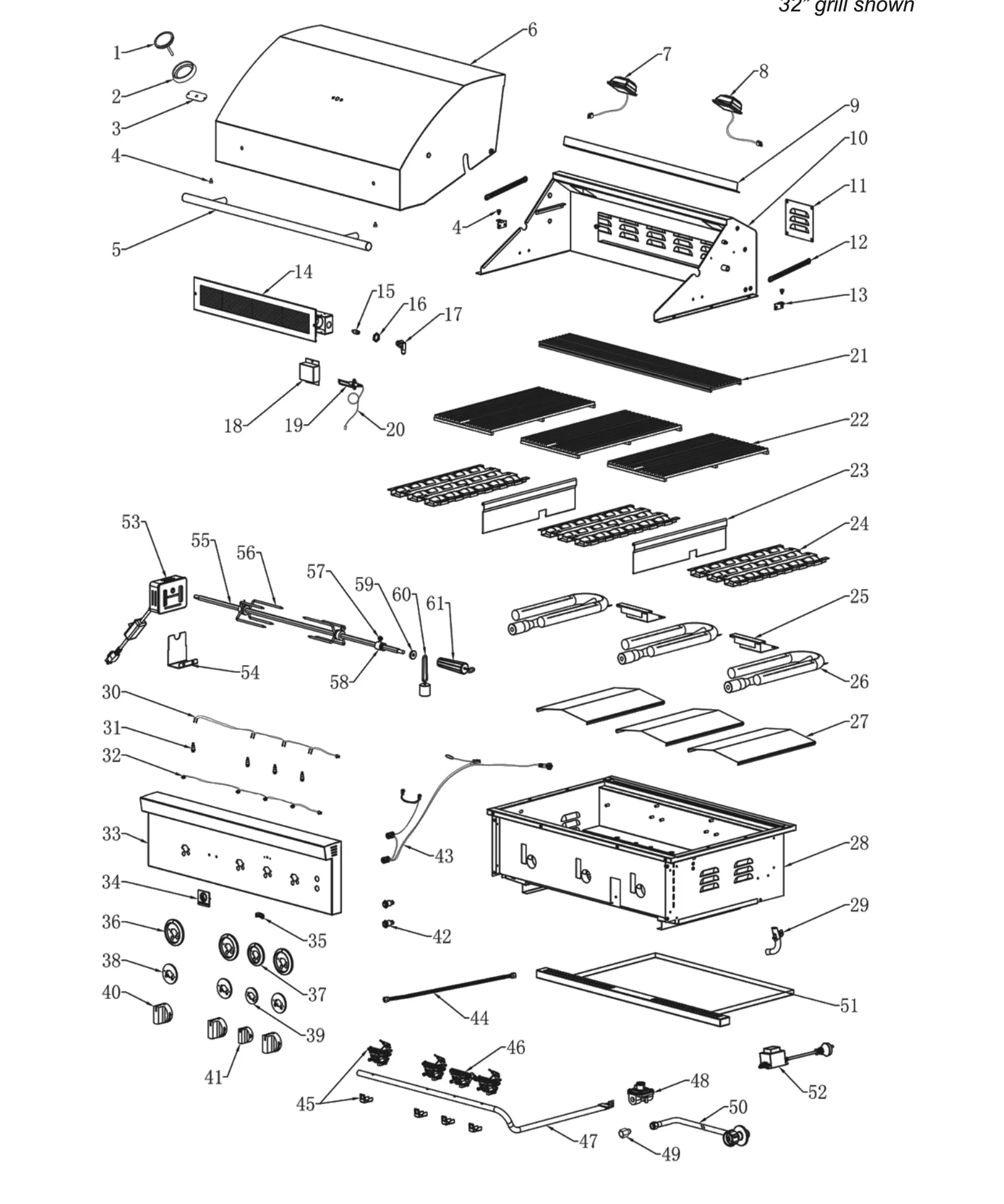

Summerset TRL Pro 32-Inch Gas Grill (TRLPRO32) exploded parts diagram

Drawing from the Summerset manual: 32" grill shown. Sizes not drawn use the same item numbers.

More TRLPRO32 parts

These parts are on the official Summerset parts list for this model but are not drawn in the manual.

Valves, Orifices, Manifolds and Regulators (1)

  • IR back burner flex tube (l=1050mm)Part # 11886 · FLEX TUBE-BB-TRL38Shop

Knobs (1)

  • 32" back-lit knob wire kitPart # 12333Call to check on availabilityTextCall

Hoods, Panels, Lights and Other Parts (3)

  • 32" LED wire kitPart # 12330Call to check on availabilityTextCall
  • Summerset Temperature Gauge & Bezel - 12180/12181Temp gauge (black, oval)Part # 12180 · TEMPShop
  • Temp gauge bezelPart # 12181 · TEMP BZLShop

About the TRLPRO32 parts

This page shows the exploded parts diagram and full parts list for the Summerset TRL Pro 32-Inch Gas Grill (TRLPRO32), a 32-inch trl pro gas grill with infrared rear burner, interior lights and led-lit knobs. It lists 64 replacement parts with the quantity the TRLPRO32 uses, and 15 of them can be ordered online today. Tap a red dot or pick a part from the list to see its Summerset part number. Parts not in our store yet are marked call to check on availability.

Source: Summerset TRL Pro (TRLPRO32 / TRLPRO40) Use and Care Manual, replacement parts list (rev. 073026).

Other TRL Pro Series

TRLPRO40

Find your Summerset model number

  1. Find the rating plate. It lists the model, the gas type and the serial number.
  2. Look on the outside of the firebox (the grill basin). On some models it is also on the underside of the drip tray.
  3. No luck? The model number is also on the front of your owner’s manual.
  4. Text us a photo of the plate. We’ll tell you exactly which parts fit.
Text Us a Photo(888) 691-8046 Call Us(866) 348-4618

Reading a Summerset model number

The letters are the series and the number is the width in inches. TRLPRO32 is a 32 inch TRL Pro, SZR40 is a 40 inch Sizzler and QST36 is a 36 inch Quest.

The end of the model number is the gas type. -NG is natural gas. -LP or a trailing L (like SZR32L) is propane. Valves, orifices and regulators are different for each gas.

Old or new Sizzler and Sizzler Pro?

The original grills are model SIZ and SIZPRO. The current ones are SZR and SZRPRO. Many parts changed, so check the letters on your plate before you order.

TRL or TRL Pro?

The original TRL came in 26, 32, 38 and 44 inch sizes. The TRLPRO comes in 32 and 40 inch. The TRLD is a separate line.
