Viking DVGBQ5323RT-REV1-APRIL2010 Grill Parts

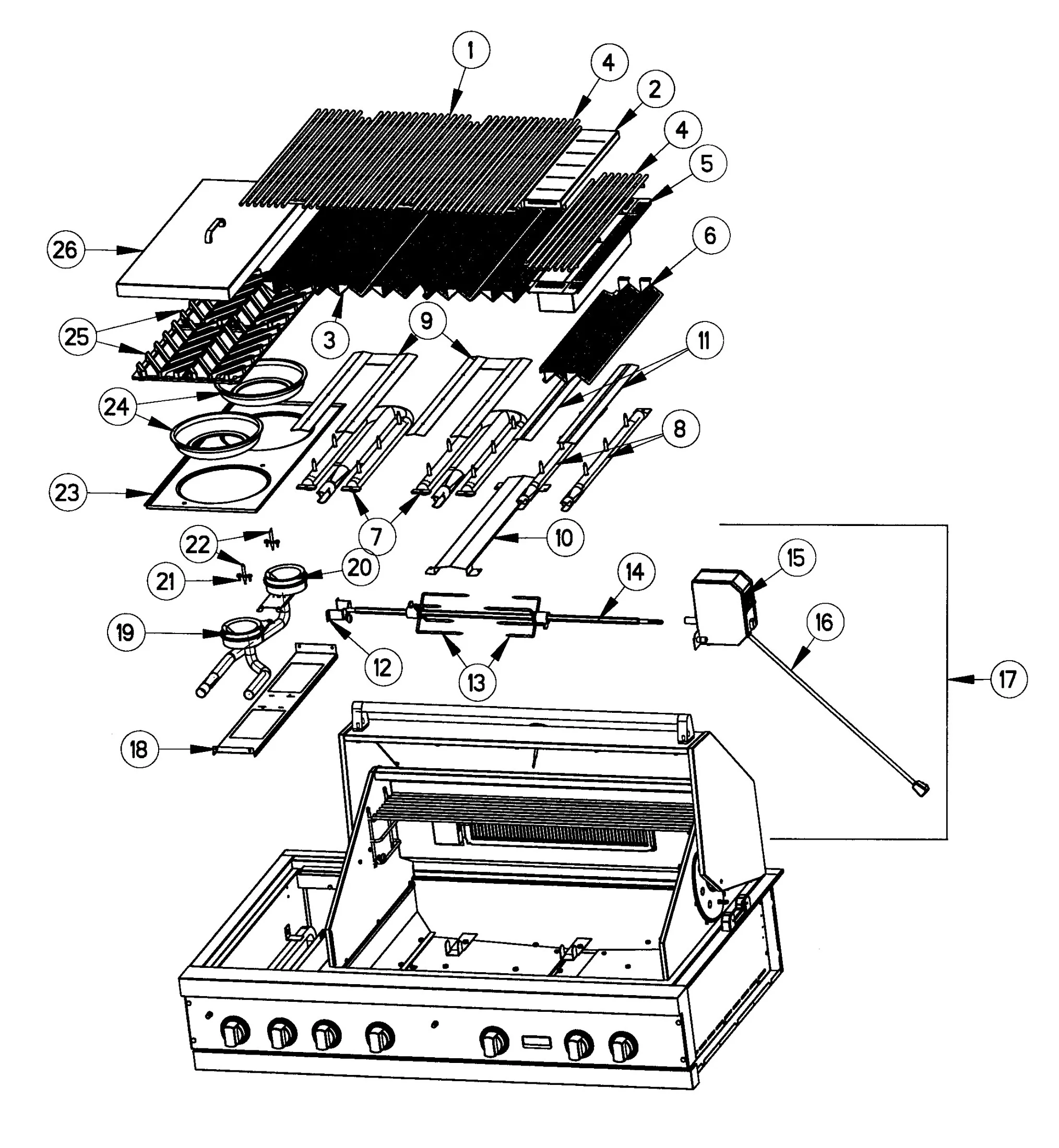

1 Burner-grate Assembly

−Fit+

18 · Phase II Burner Support13 · Spit Fork17 · Rotis Motor Assembly Ce12 · Rotis. Roller Bracket19 · Front Side Burner16 · Intl. 10 Amp Contl. Euro Powercord21 · #10 X 1/2" Pan Phil. Tek.ss14 · Spit Rod20 · Rear Side Burner15 · Rotis Motor (Dvgbq Motor)22 · Spark Igniter10 · Burner Box Shield (Phase 2)7 · Thermocouple Brkt Weld Assembly23 · VGIQ30 Cover Handle8 · PA080051 W/thermocouple Brkt24 · Burner Bowl (VGBQ) SS11 · Smoker Drip Shield3 · Flavor Grids9 · Burner Drip Shield26 · Side Burner Cover Assembly5 · Smoker Box Bottom4 · 1/2 Grill Gate2 · Smoker Box Top4 · 1/2 Grill Gate1 · Full Grill Gate25 · Side Burner Grates6 · Half Flavor Grid Phase 2

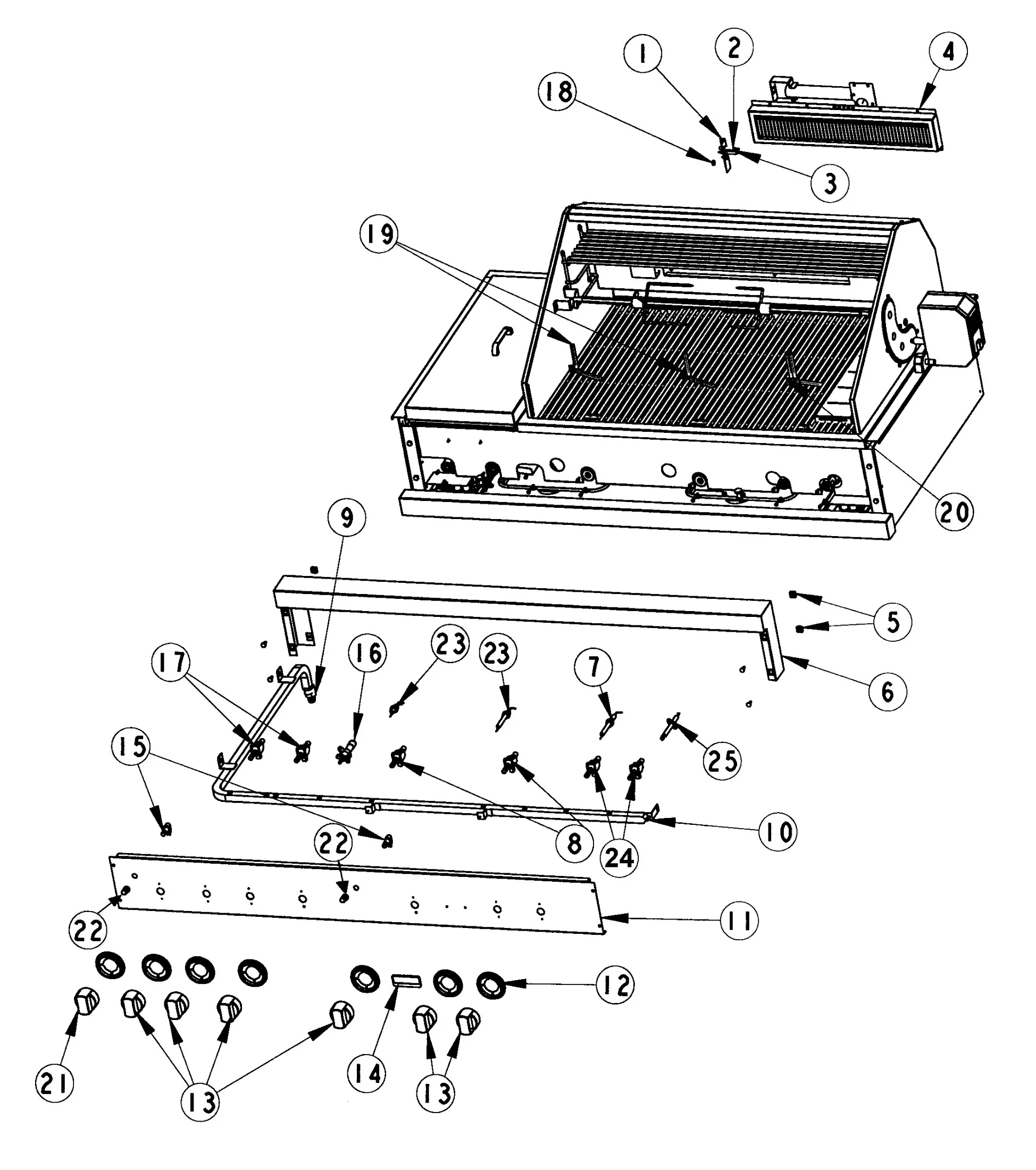

2 Control-valve Assembly

−Fit+

13 · Ce Grill Burner Knob (Dvgbq)14 · 3" Logo Bkchrome12 · Bezel, Knob22 · Oven Light Switch Knob Bk (Veso/d24 · PA010133 Valve And Bolt Kit8 · PA010133 Valve And Bolt Kit22 · Oven Light Switch Knob Bk (Veso/d10 · 53 In Manifold, Dvgbq15 · Sparker Switch (Phase 2)6 · Landing Ledge (VGBQ53) T Series7 · PB040288 Ignitor Kit16 · LP Rotis Valve - Knob Kit23 · PB040287 Ignitor Kit23 · PB040287 Ignitor Kit5 · 10-24 Cage Nut SS9 · Nipple-Coupler Assy20 · Smoker Flash Tube3 · Flexible Rotisserie Ignitor18 · Thermcouple Nut M08-VGBQ-87433000071 · IR Ignitor Bracket (Phase 2)4 · I/r Burner Assembly2 · Thermocouple21 · Rotis. Burner Knob Dvgbq13 · Ce Grill Burner Knob (Dvgbq)11 · 53" Control Panel17 · PA010133 Valve And Bolt Kit19 · Flash Tube (VGBQ3002T)

3 Functional Parts

Viking doesn’t publish a drawing for this section. The parts are listed here.

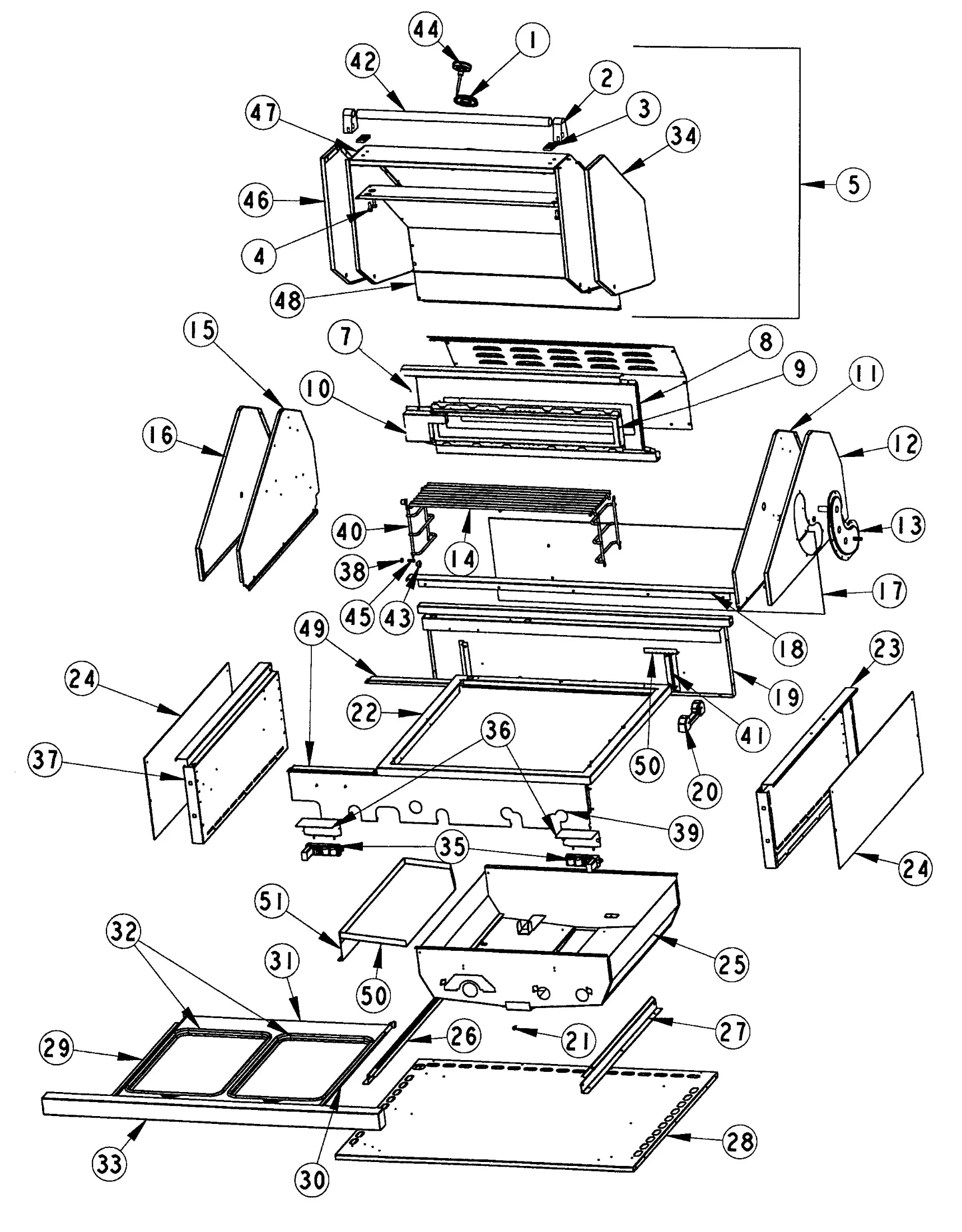

4 Grill Subassembly

−Fit+

30 · Drip Tray Runner RH33 · 53" Drip Tray Handle28 · Grill Box Bottom 5329 · Drip Tray Runner LH (Phase 2)21 · #10 X 1/2" Pan Phil. Tek.ss26 · Drip Tray Slide - LH27 · Drip Tray Slide - RH50 · Grease Diverter (Phase 2)25 · 41 In Burner Box Assembly No Side (D)32 · Grease Pan51 · Side Burner Drip Shield24 · Side Heat Shield35 · Spark Module39 · 53" Grill Box Front (With Side)20 · Rotis. Mount Casting50 · Grease Diverter (Phase 2)37 · Grill Box Side - LH36 · Spark Module Bracket (Phase 2)22 · Grill Frame24 · Side Heat Shield18 · Grill Box Trim - 5323 · Grill Box Side - RH49 · Grate Support Bracket43 · Drip Tray Wheel45 · 10 X 24 Countersunk S.S Screw17 · Rear Heat Shield - 5338 · 10-24 Keps Nut SS40 · Warming Rack Support Service Kit (Includes LH And RH Support)13 · Rotis. Gear Box Assembly10 · I/R Igniter Cover11 · I/S Windshield - RH9 · Infrared Frame8 · Front Housing Assembly7 · Front Housing Top Weld Assy - NLA15 · I/S Windshield - LH48 · Canopy Heat Shield 41/534 · Cap Screw 1/4-20 X 3/4 SS46 · Canopy End LH (Phase 2)5 · Canopy Assembly 41 (P2 Grill) Fg34 · Canopy End RH (Phase 2)47 · Grill Canopy - 41" (Phase 2)3 · Door Handle Spacer2 · Handle End Cap Assembly42 · Door/cnpy Hndle - Rplcs PE93009044 · Grill Thermoeter (Phase II Grills)31 · Drip Tray 4114 · Warming Rack16 · O/S Windshield Assy - LH41 · Heat Shield Bracket19 · Grill Box Back (VGBQ5323RT)12 · O/S Windshield Assy - RH1 · Thermostat Bezel

Part numbers come from Viking’s own parts lists. When Viking has replaced a part, we show the new number. Don’t see what you need? Call (866) 348-4618 or text (888) 691-8046.
