Viking VGBQ3002RT2 Grill Parts

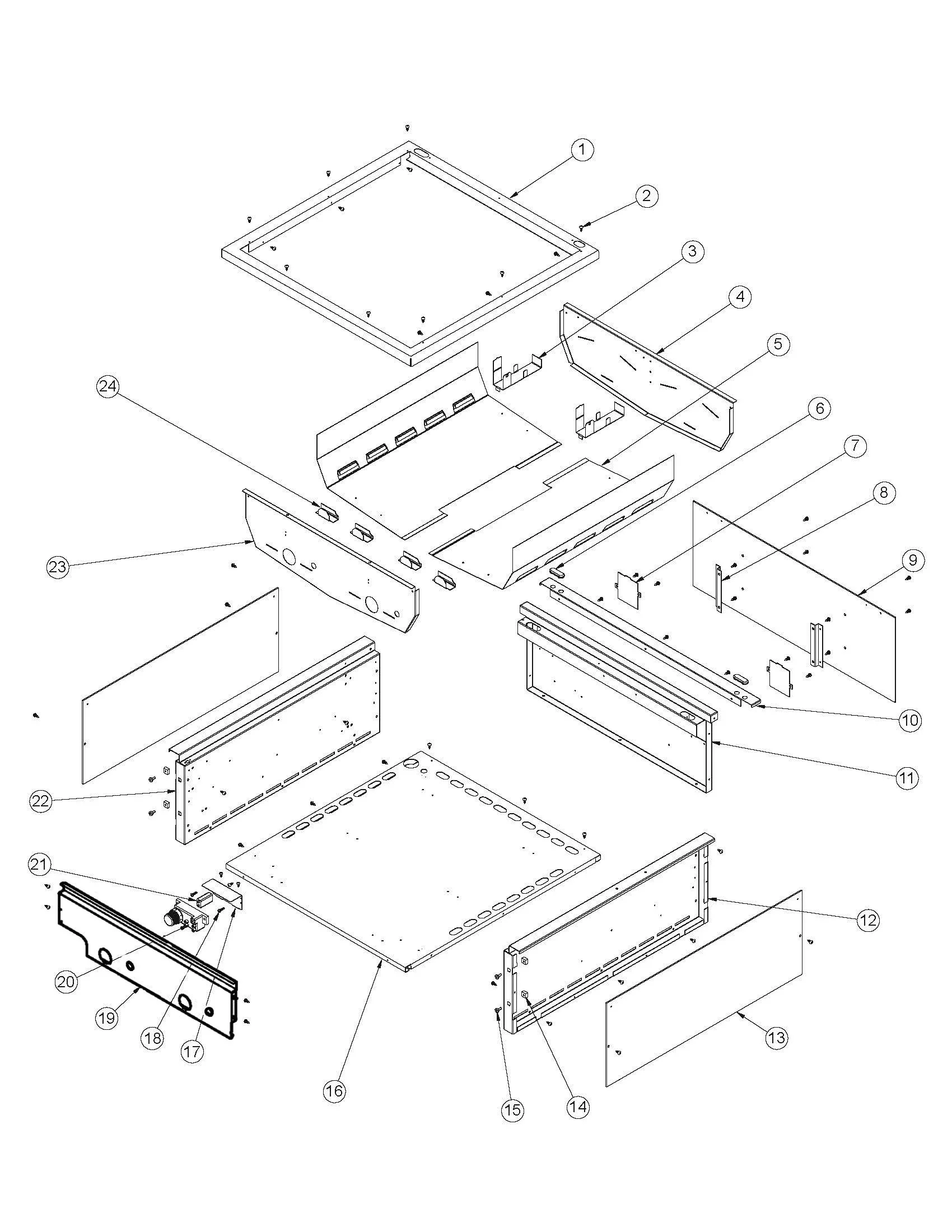

1 Burner Box Area

−Fit+

1 · Grill Frame 302 · #10 X 1/2" Pan Phil. Tek.ss3 · Grill Burner Rear Bracket4 · Box, Bnr, Back, 305 · Box, Brn, Bot, 306 · Rubber Door Bumper7 · Grill Plug Plate8 · Heat Shield Bracket9 · Rear Heat Shield 3010 · 30" Grill Rear Trim11 · Grill Box Back 3012 · Grill Box Side - RH13 · Side Heat Shield14 · 10-24 Cage Nut SS15 · #10-24 X 1/2" Ph.tr. M.s. SS16 · Grill Box Bottom 3017 · Spark Module Bracket (Phase 2)18 · Screw, #10 x 3/4", PH Panhd, Self-drilling, SS19 · Support, Grl, Fr, VGBQ3002RE220 · Spark Module21 · Spark Module Battery Phase II22 · Grill Box Side - LH23 · Box, Bnr, Fr, 3024 · Grill Burner Front Bracket

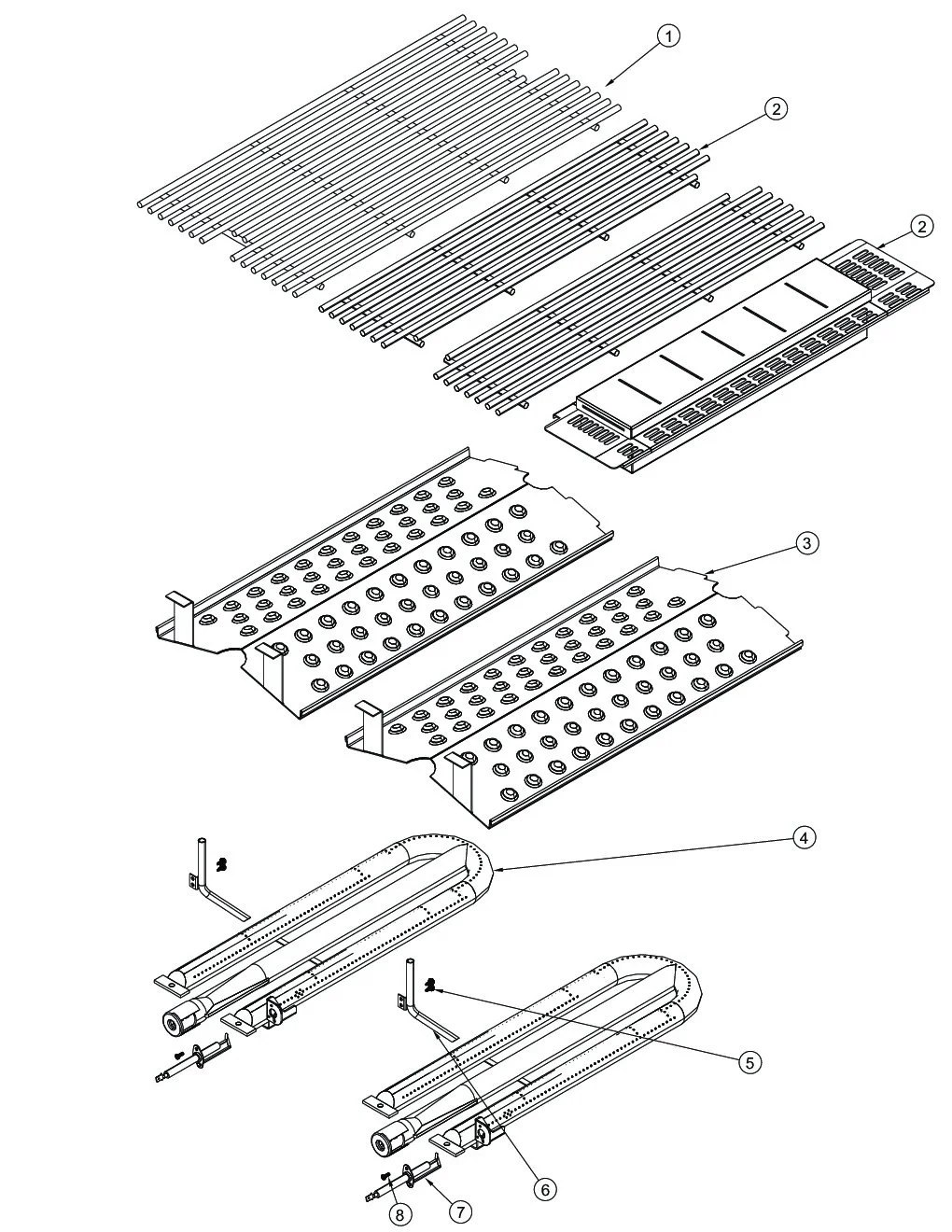

2 Burner Grate Area

−Fit+

2 · 1/2 Grill Gate1 · Full Grill Gate3 · Smoker Box Assembly4 · Shield, Grs5 · Burner, Grl, Assembly, U6 · #6-20 Hex Washer SS Screw7 · Flash Tube (VGBQ3002T)8 · PB040288 Ignitor Kit9 · Machine Screw, 6-32 x 3/8, Pan HD, Phillips

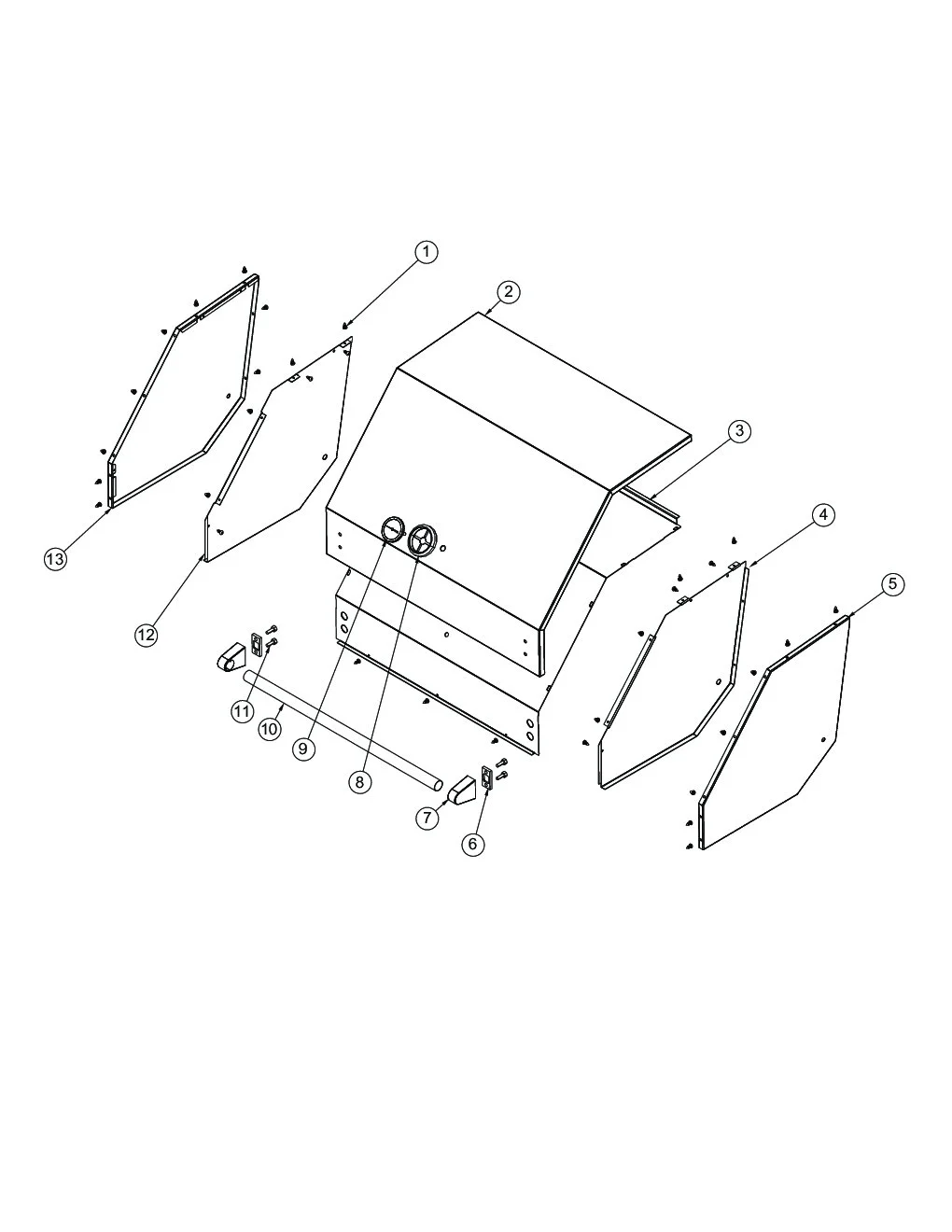

3 Canopy Area

−Fit+

7 · Handle End Cap Assembly8 · Bezel, Knob10 · Door Handle (Canopy) SS (VGBQ30)11 · Cap Screw 1/4-20 X 3/4 SS5 · Grill Canopy Outside RH4 · Grill Canopy Inside LH2 · Shield, Canopy, Fr1 · #10 X 1/2" Pan Phil. Tek.ss13 · Grill Canopy Outside LH12 · Grill Canopy Inside RH9 · Gauge, Bmtl, Temperature6 · Door Handle Spacer3 · 30" Canopy Heat Shield

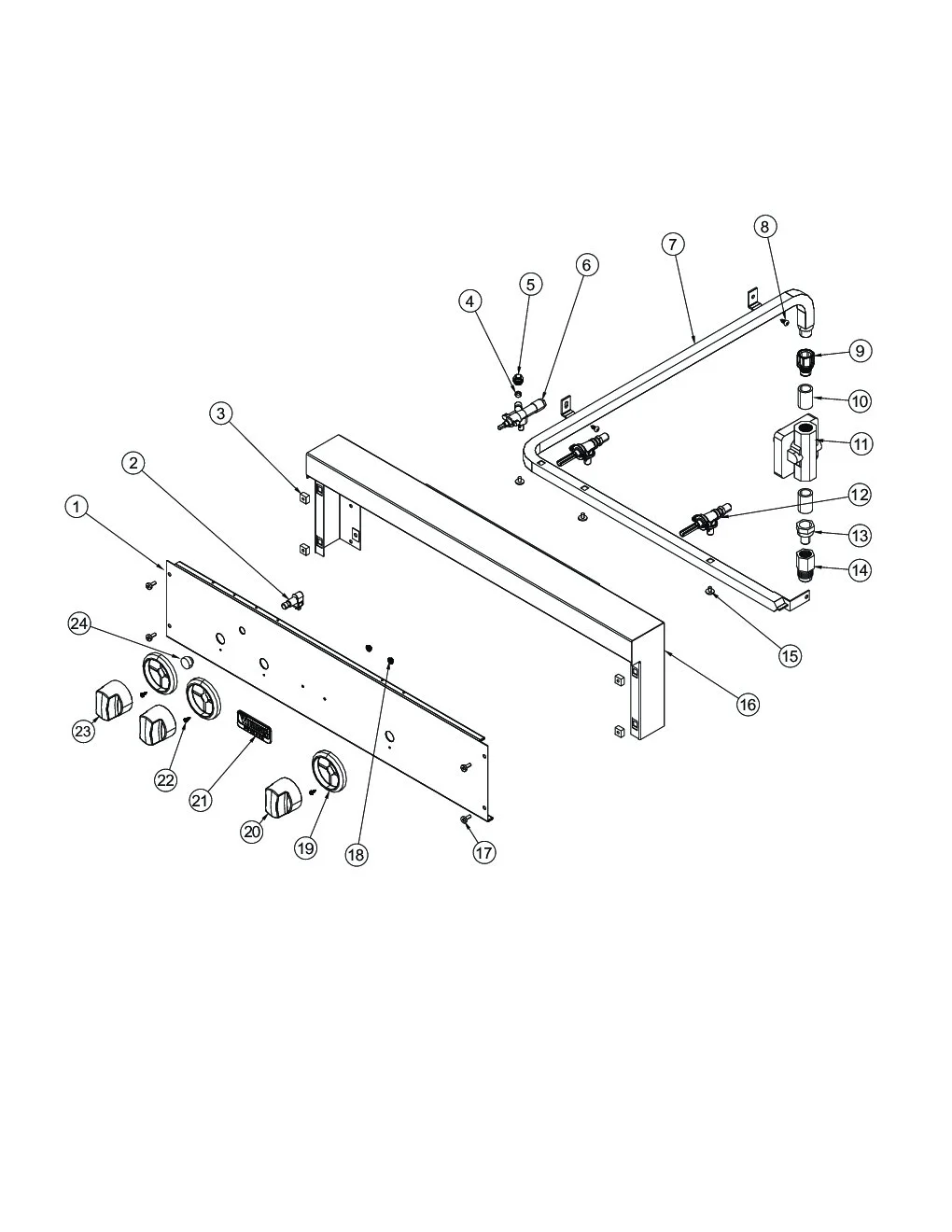

4 Control Panel

−Fit+

18 · Capped Washer Pal Nut17 · #10-24 X 1/2" Ph.tr. M.s. SS19 · Bezel, Knob16 · Landing Ledge Assembly 30 (Phase 2)15 · Valve Bolt 1/4-20 UNC-2B 5/16" M.s.14 · 7/8 Flare To 1/2 Female Connector1 · Control Panel, VGBQ3002RT22 · Sparker Switch (Phase 2)3 · 10-24 Cage Nut SS9 · Nipple-Coupler Assy4 · 5/16 Ferrule5 · Fitting Brass Compression Nut6 · Natural Rotis Valve - Knob Kit7 · Manifold, Grl, 3024 · Oven Light Switch Knob Bk (Veso/d23 · Rotis Burner Knob22 · Scr, Dr, PH, Pnh, 410 SS, Nplt, 6-20 x 3/821 · Outdoor Logo - 3" Chrome20 · Outdoor Grill Knob13 · Nipple-Coupler Assy12 · Valve, Gas, Assembly, U Bnr #4011 · Pressure Reg.(nat.)10 · 1/2" Close Nipple8 · #10 X 1/2" Pan Phil. Tek.ss

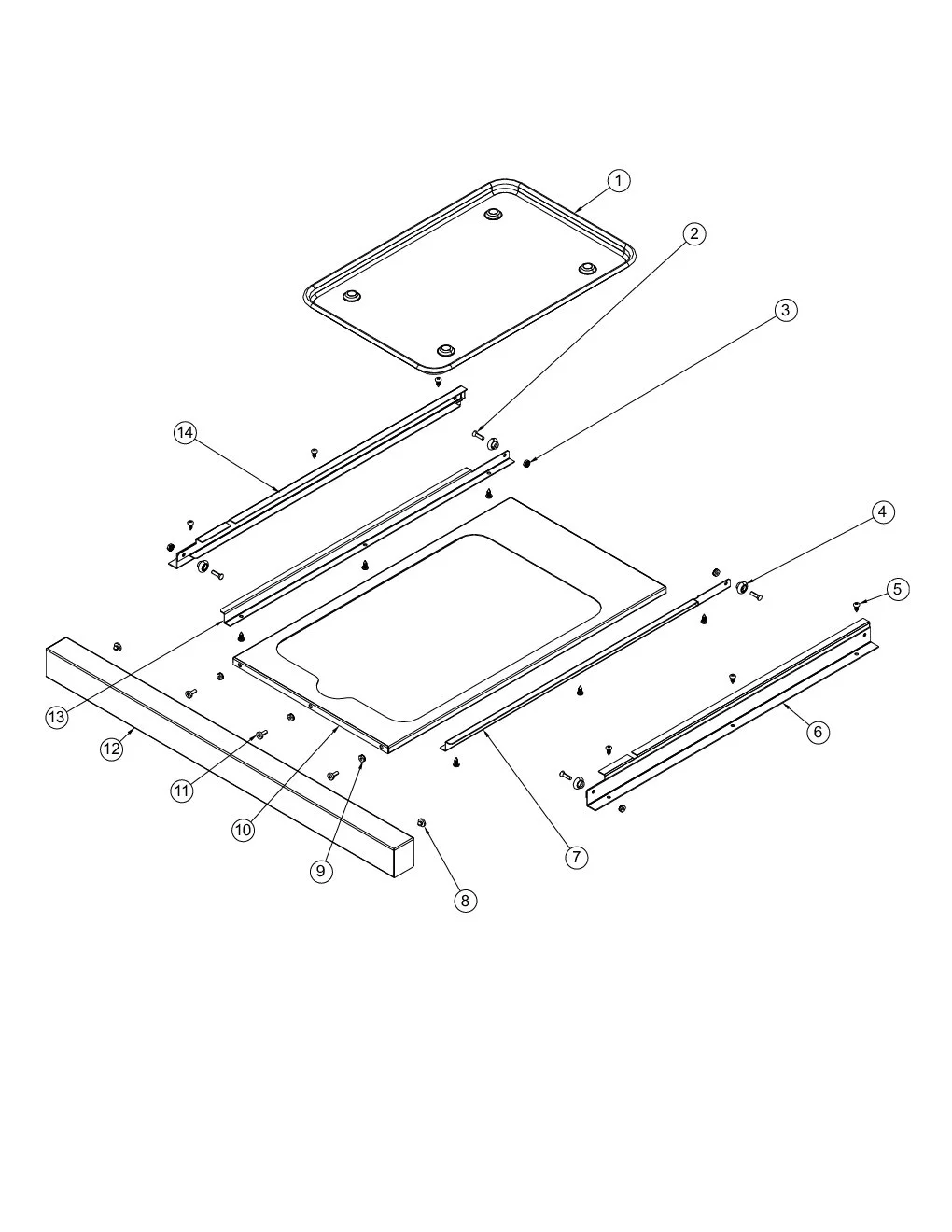

5 Drip Tray

−Fit+

8 · Grommet Bumper11 · #10-24 X 1/2" Ph.tr. M.s. SS13 · Drip Tray Slide - LH5 · #10 X 1/2" Pan Phil. Tek.ss4 · Drip Tray Wheel2 · 10 X 24 Countersunk S.S Screw1 · Grease Pan12 · 30 Inch Drip Tray Handle (Phase 2)10 · Drip Tray 30 (Phase 2)9 · 10-24 Keps Nut SS7 · Drip Tray Runner RH6 · Drip Tray Slide - RH3 · 10-24 Keps Nut SS14 · Drip Tray Runner LH (Phase 2)

6 LP Connection Service Kit

−Fit+

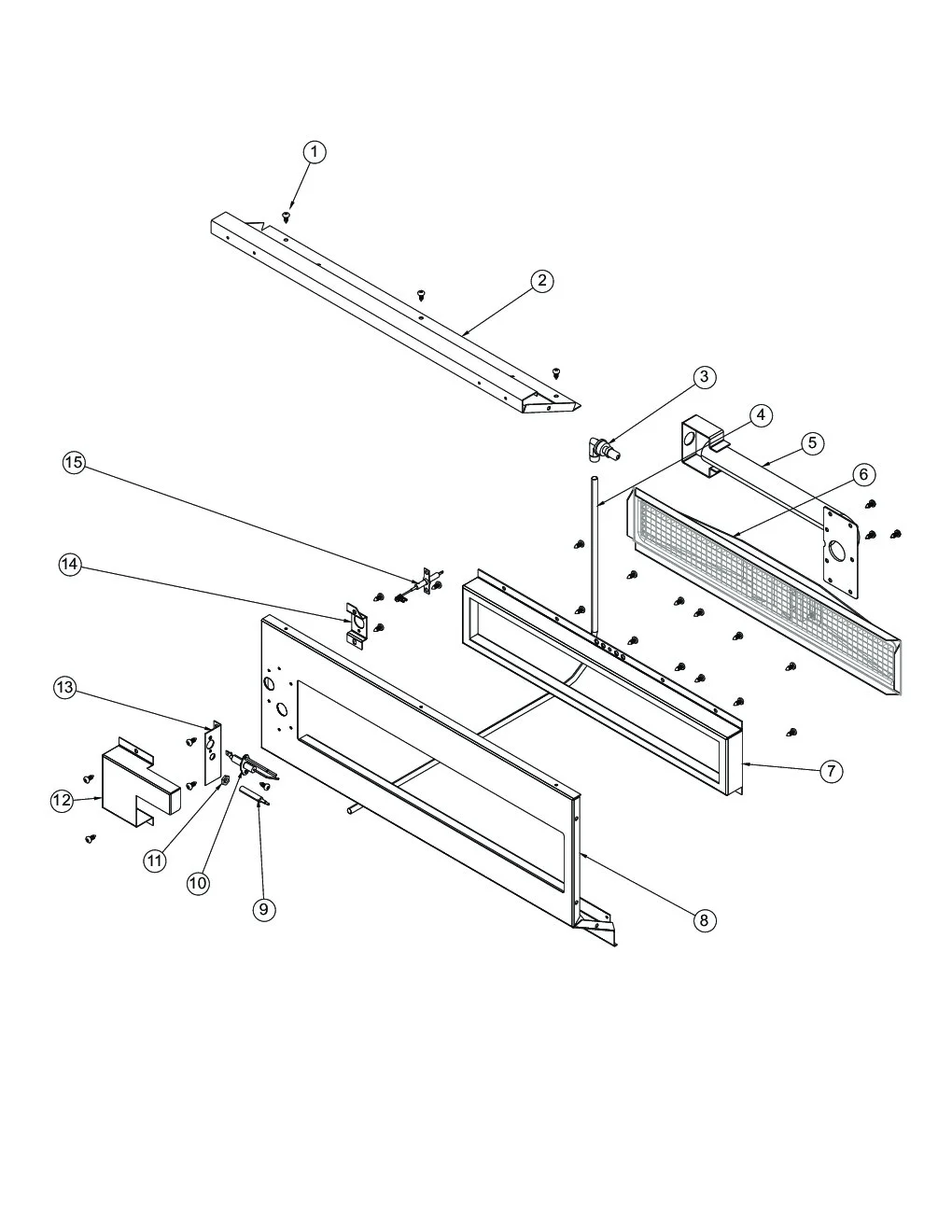

7 Rotisserie Burner Area

−Fit+

9 · Thermocouple11 · Thermcouple Nut M08-VGBQ-87433000077 · Infrared Frame5 · I/r Venturi (Phase 2 BBQ)4 · 48" 5/16 S.S. Flex Tubing Repl F20035052 · 30"" Front Housing Top1 · #10 X 1/2" Pan Phil. Tek.ss15 · Flexible Rotisserie Ignitor14 · Flex Igniter Stand Off13 · IR Ignitor Bracket12 · I/r Ignitor Cover LH10 · Wok Igniter8 · Front Housing Assembly (VGIQ3002RT)6 · I/r Burner Assembly3 · 90 Deg. Orifice Fitting

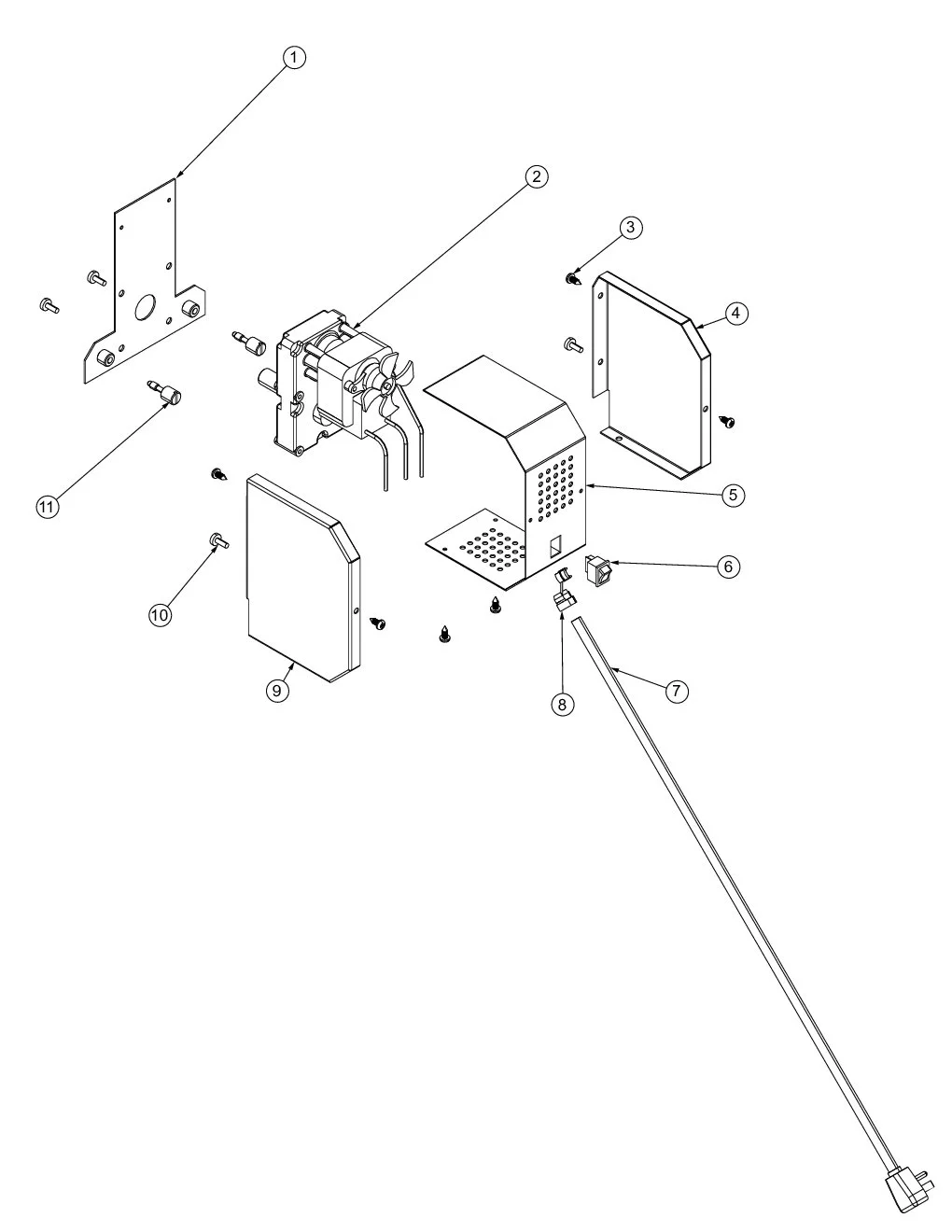

8 Rotisserie Motor Assembly

−Fit+

8 · Snap Thru Bushing 1/4"DIA Cord9 · Phase II Rotis Box Front11 · Rotis. Fastener Knob4 · Phase II Rotis Box Front2 · Rotis. Motor1 · Rot Motor Mounting Plate Assembly3 · #10 X 1/2" Pan Phil. Tek.ss5 · Phase II Rotis Cover6 · Rotis Switch7 · Electrical Power Cord10 · #10-24 X 1/2" Ph.tr. M.s. SS

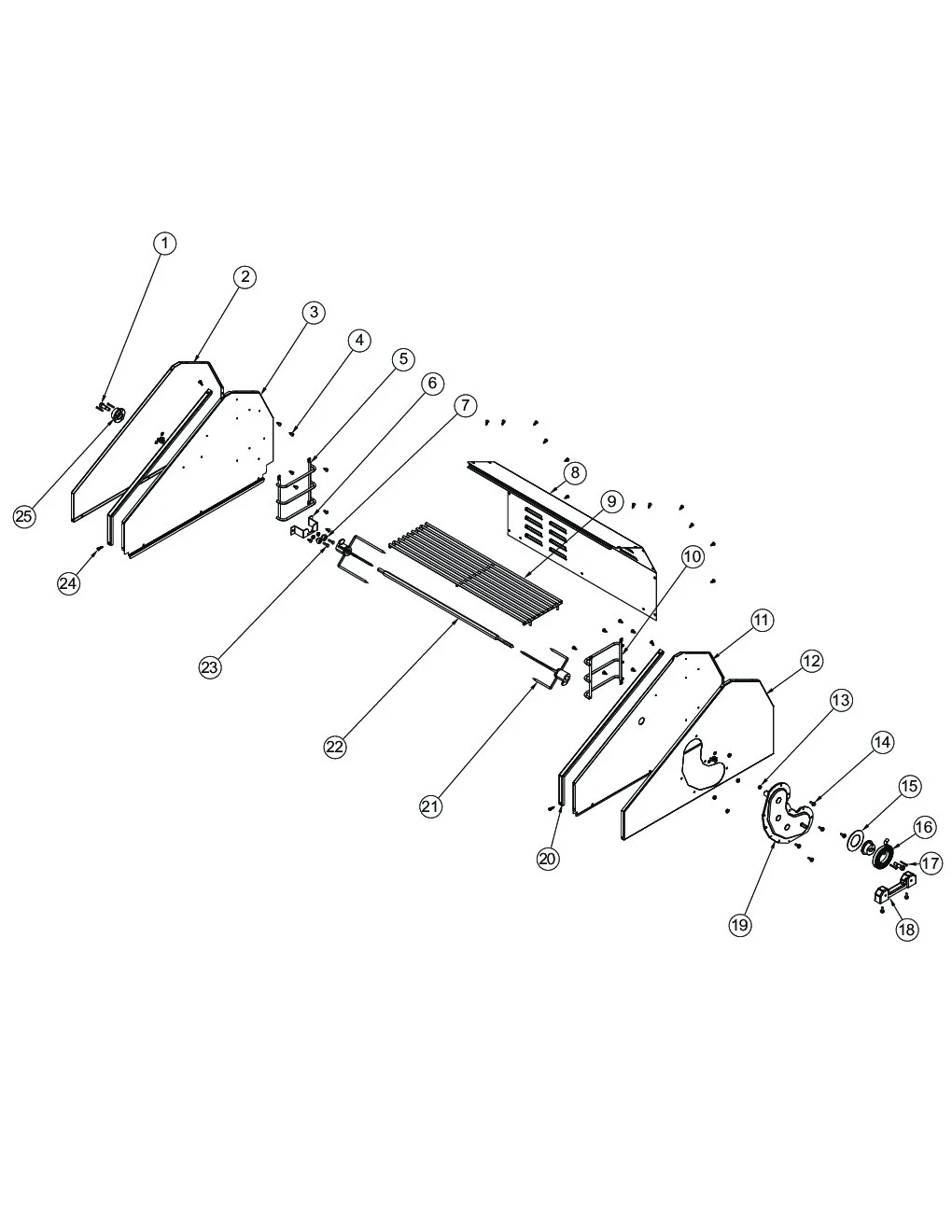

9 Upper Grille Area

−Fit+

18 · Rotis. Mount Casting19 · Rotis. Gear Box Assembly14 · #10-24 X 1/2" Ph.tr. M.s. SS12 · O/S Windshield Assy - RH11 · Inside Windshield RH9 · Warming Rack 308 · 30" Grill Rear Cover7 · Drip Tray Wheel4 · #10 X 1/2" Pan Phil. Tek.ss3 · Inside Windshield LH2 · O/S Windshield Assy - LH1 · Fastener, Bolt, 5/16 - 1-1/225 · Spring Index24 · Scr, Dr, Fcskhp, 410 SS, Nplt, 8-18 x 3/423 · 10 X 24 Countersunk S.S Screw22 · Spit Rod21 · Spit Fork20 · Grill Windshield Trim17 · #6-32 x 1.0 SS Flat HD Screw16 · Canopy, Spring, Assist- Light15 · Retainer, Canopy Spring13 · 10-24 Keps Nut SS10 · Warming Rack Support RH6 · Rotis. Roller Bracket5 · Warming Rack Support LH

10 Wiring

−Fit+

Part numbers come from Viking’s own parts lists. When Viking has replaced a part, we show the new number. Don’t see what you need? Call (866) 348-4618 or text (888) 691-8046.
