Viking VGBQ33002RE Grill Parts

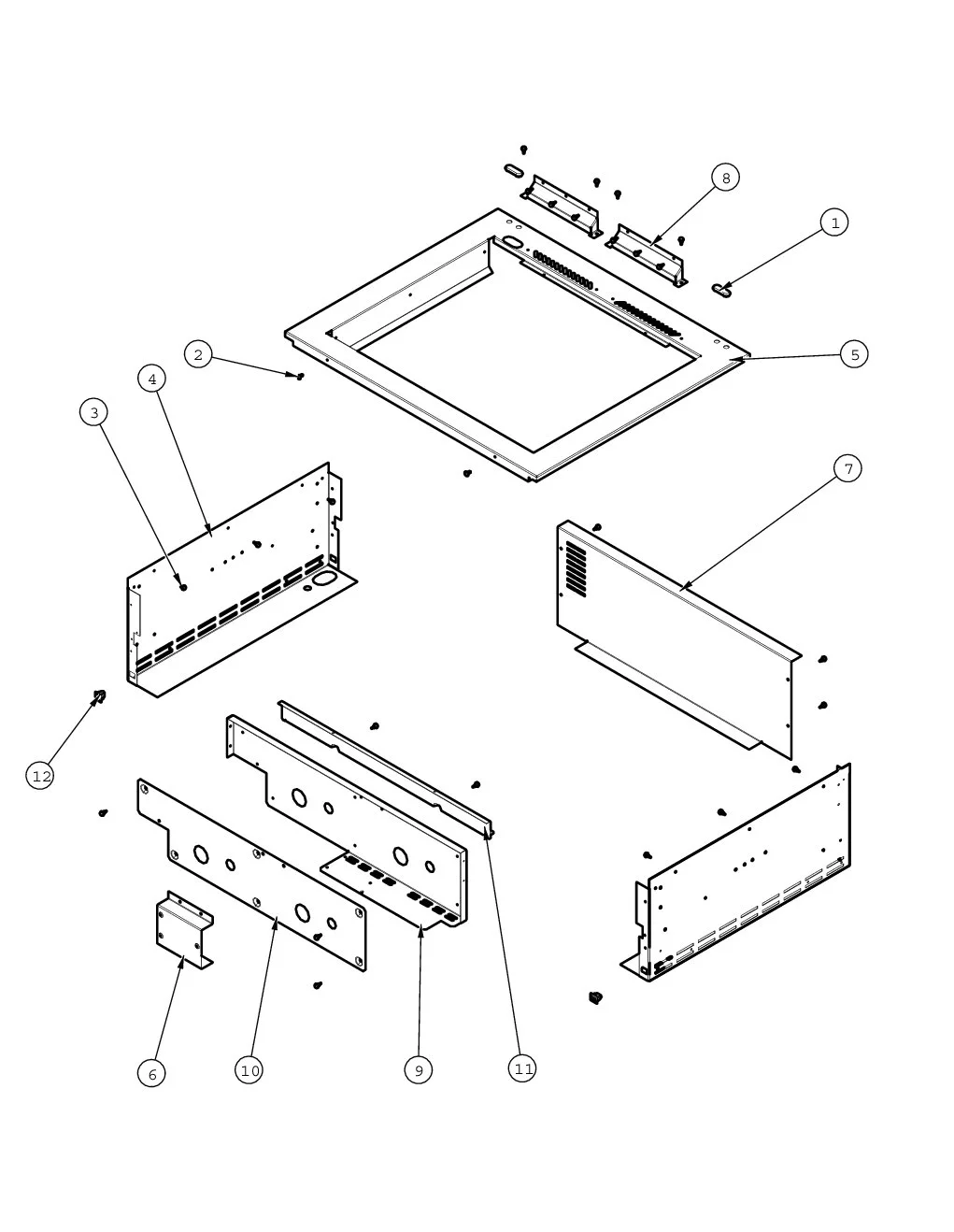

1 Base

−Fit+

6 · Bracket, Mounting, Module7 · Bracket, Back Support3 · #10 X 1/2" Pan Phil. Tek.ss4 · Panel, Lwr Side2 · Scr 10-12 A Shld Trp 1/2 S Zn Blue8 · Flue Diverter, 301 · Rubber Door Bumper5 · Frame, Grl, Top12 · Latch Panel Access10 · Panel, Front, Heat Shield9 · Panel, Support, Heat Shield11 · Support, Tray, Briquette, 30

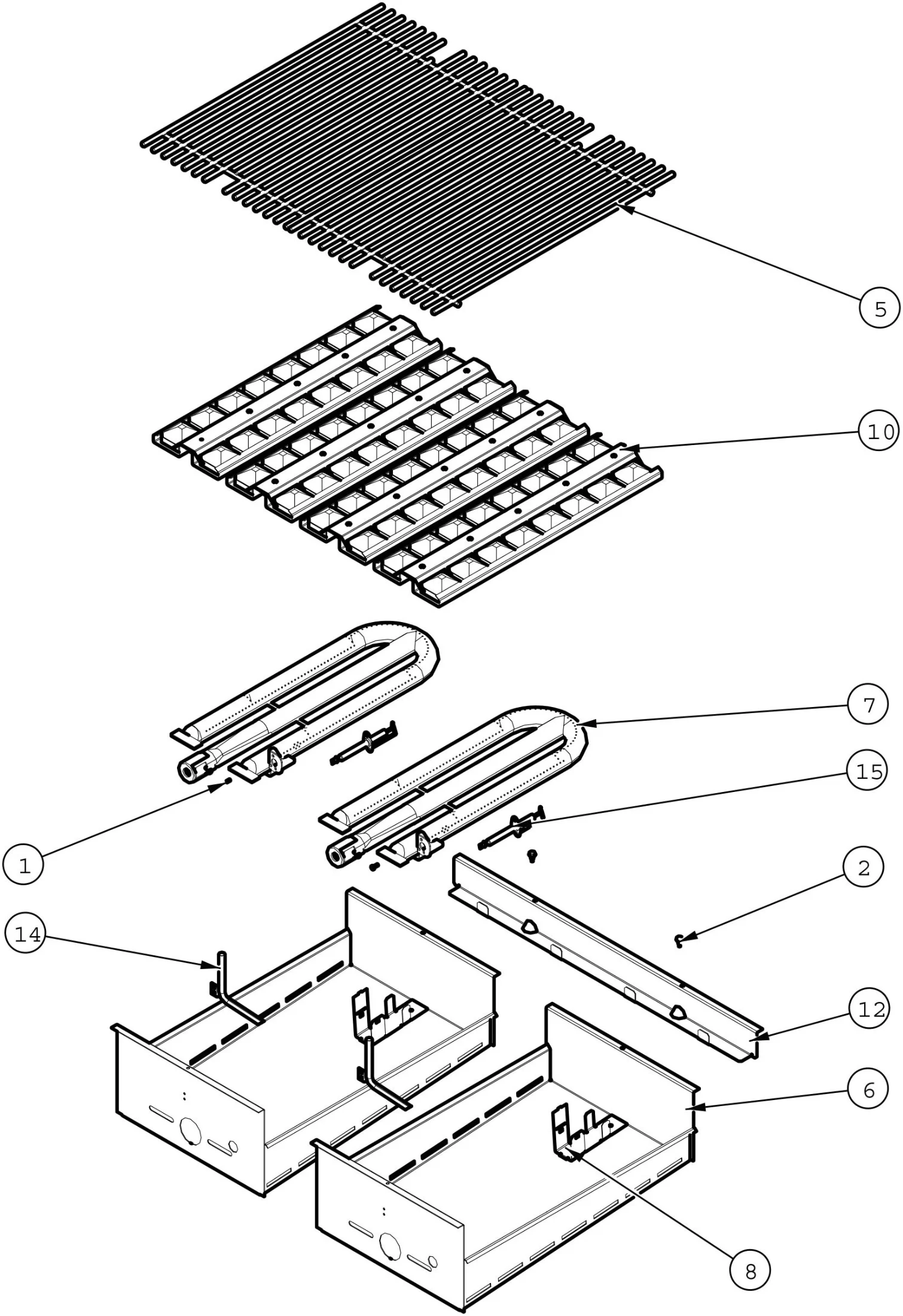

2 Burner Base

−Fit+

8 · Bracket, Rear Grill Burner6 · Box, U Burner, 3012 · Support, Tray, Briquette, 3014 · Flash Tube (VGBQ3002T)2 · #10 X 1/2" Pan Phil. Tek.ss1 · Machine Screw, 6-32 x 3/8, Pan HD, Phillips15 · PB040288 Ignitor Kit7 · U-burner, Bq Assembly10 · Tray, Crmc, Briquette, Assembly5 · Grate, Bq Grill

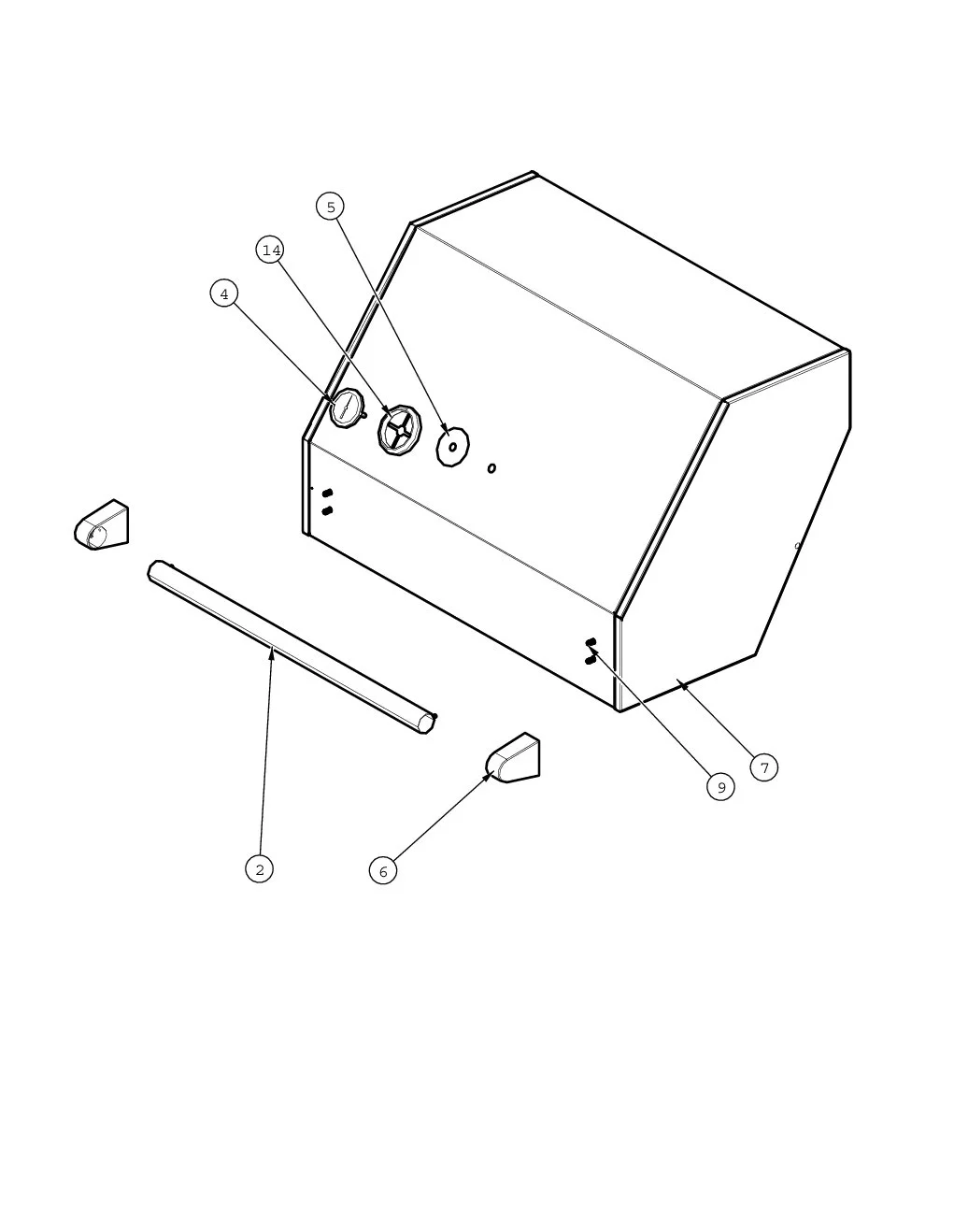

3 Canopy

−Fit+

2 · Door Handle, 247 · Hood, Bq, 30" Assembly4 · Gauge, Bmtl, Temperature14 · Bezel, Knob5 · Spacer, Wshr6 · End Cap, Assembly, Door Handle9 · Bolt, Fastener, Hxh, Sst

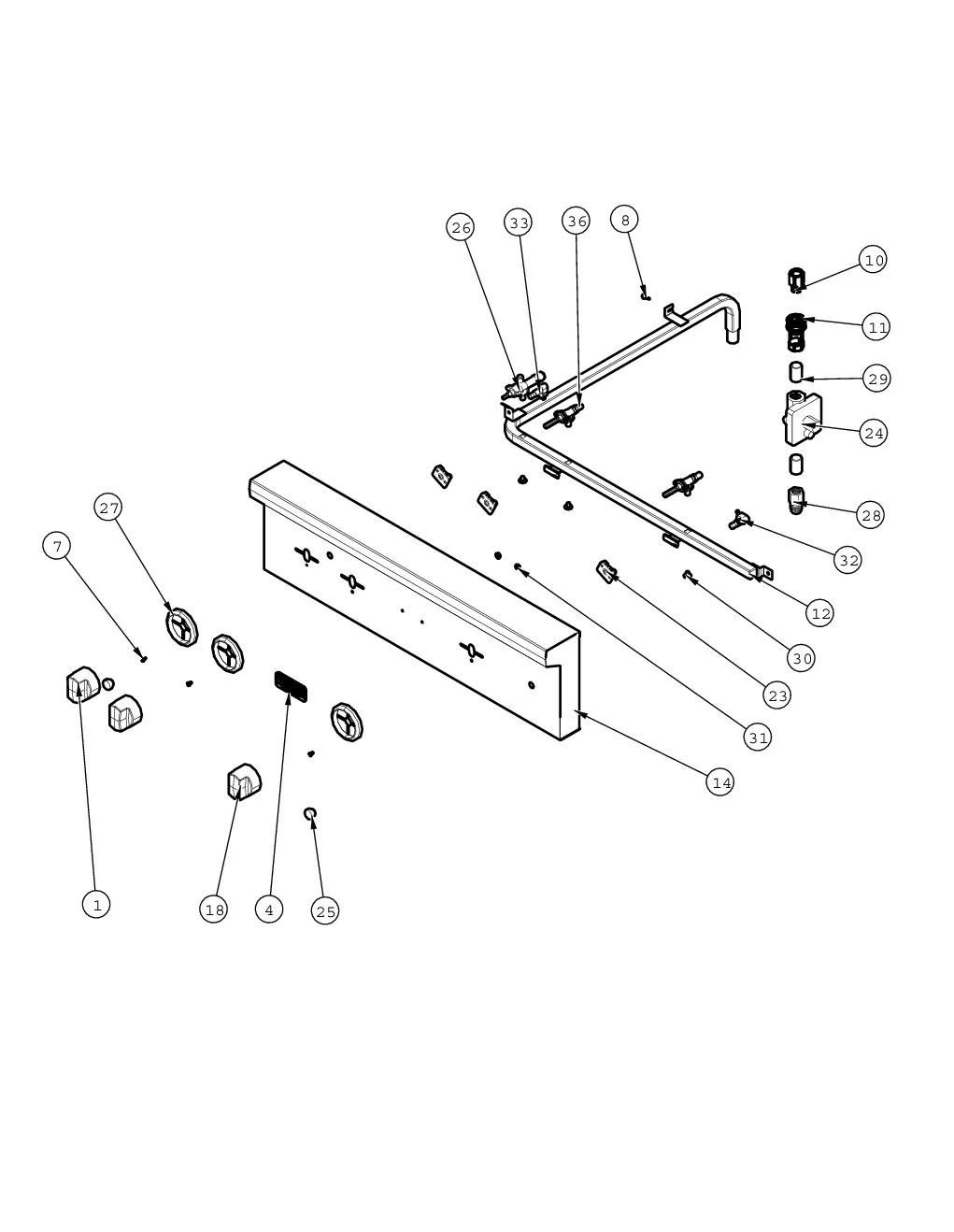

4 Control Panel

−Fit+

4 · Outdoor Logo - 3" Chrome23 · Ignitor Switch30 · Valve Bolt 1/4-20 UNC-2B 5/16" M.s.32 · Oven Light Switch (VGSO166) 90-DEG.7 · Scr, Dr, PH, Pnh, 410 SS, Nplt, 6-20 x 3/828 · 7/8 Flare To 1/2 Female Connector27 · Bezel, Knob24 · Pressure Regulator (L.P.)33 · Sparker Switch (Phase 2)26 · LP Rotis Valve - Knob Kit36 · Valve, Gas, Assembly, U Bnr LP8 · #10 X 1/2" Pan Phil. Tek.ss1 · Rotis Burner Knob18 · Outdoor Grill Knob10 · Nipple-Coupler Assy11 · Nipple-Coupler Assy29 · 1/2" Close Nipple12 · Manifold, Assembly31 · Capped Washer Pal Nut14 · Panel, Cntrl Weld W/graphics, BQ13002R25 · Oven Light Switch Knob Bk (Veso/d

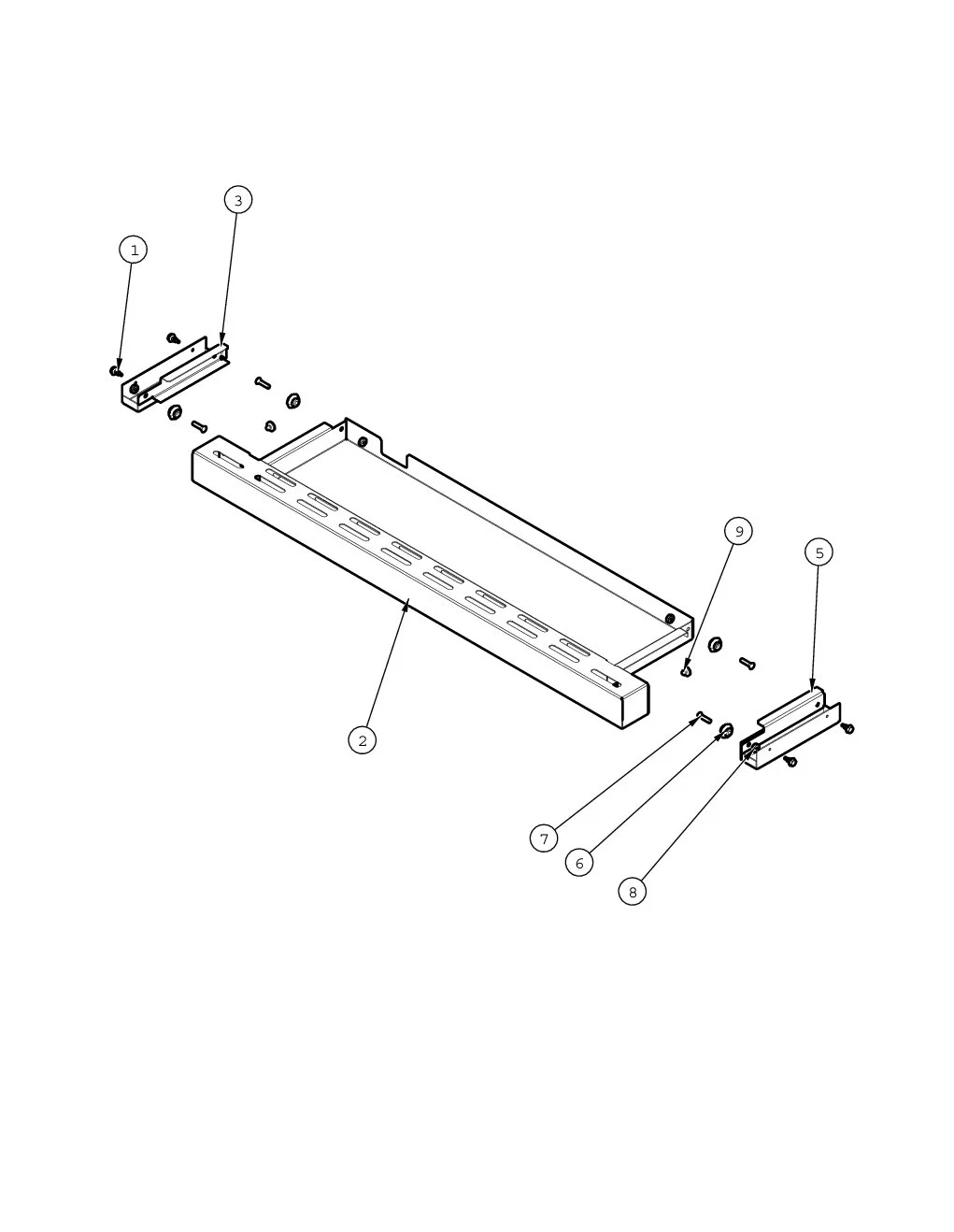

5 Drip Tray

−Fit+

7 · 10 X 24 Countersunk S.S Screw2 · Drip Tray Assembly, Bq, 309 · Grommet Bumper1 · #10 X 1/2" Pan Phil. Tek.ss3 · Drip Tray Guide, LH5 · Drip Tray Guide, RH6 · Drip Tray Wheel8 · 10-24 Keps Nut SS

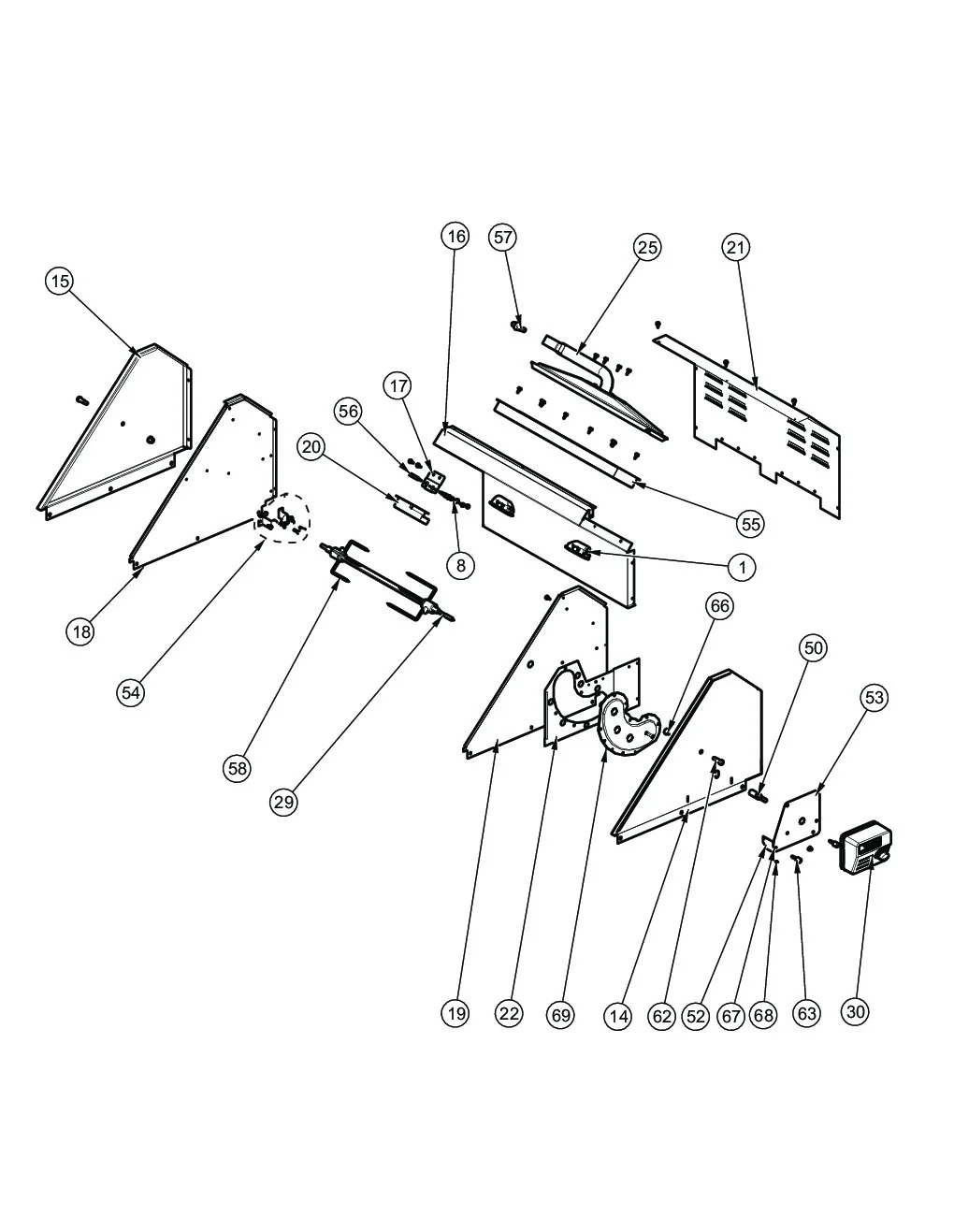

6 Upper Burner

−Fit+

67 · Capture Nut 1/4" #2052 · Support Bracket, Mtg, Rtsr62 · Fastener, Bolt, 5/16 - 1-1/214 · Windshield, Bq, Os, RH68 · Grommet Bumper69 · Rotis. Gear Box Assembly63 · Rotis. Fastener Knob22 · Support, Gear19 · Windshield, Bq, Is, RH30 · Motor, Rotis29 · Spit Rod58 · Spit Fork53 · Support Bracket, Mtg, Rtsr Mtr50 · Adapter, Hex, Rotis Motor18 · Windshield, Bq, Is, LH66 · 10-C05-HC 5/16-18 Flange Nut1 · 120V Halogen Light Assembly8 · Ignitor, W/wire55 · Infrared Frame20 · Cover, Rotis Ignitor56 · Thermocouple15 · Windshield, Bq, Os, LH21 · Panel, Rear Bq25 · I/r Burner Assembly16 · Backplate, Bq, Int54 · Roller, Brkt, Rotis, Assembly17 · Bracket, Rotis Ignitor, Mtg57 · I/r Venturi (Phase 2 BBQ)

7 Wiring

−Fit+

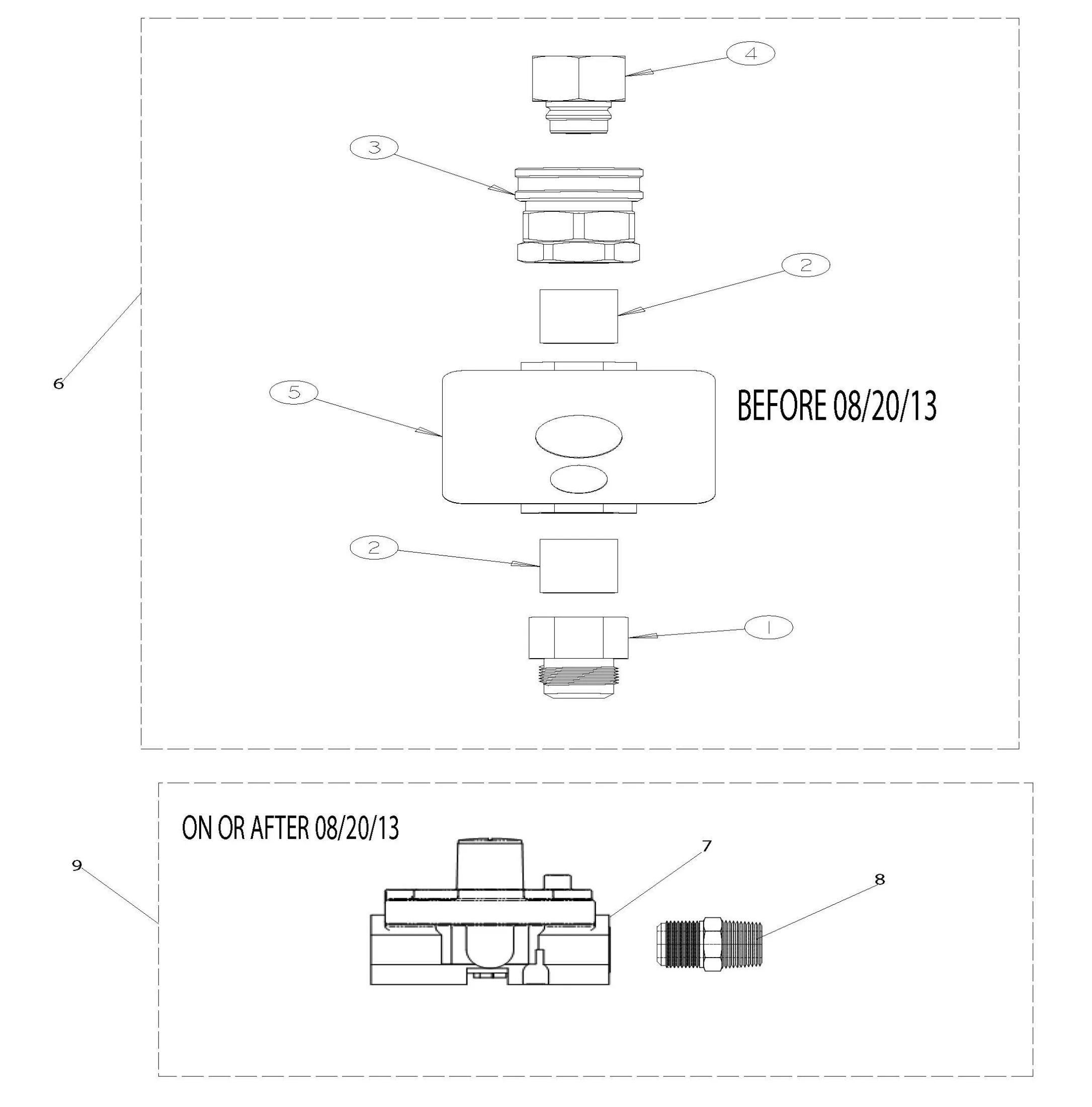

8 Natural Gas Asm

−Fit+

4 · Nipple-Coupler Assy5 · Pressure Reg.(nat.)3 · Nipple-Coupler Assy2 · 1/2" Close Nipple6 · Regulator Assembly Nat2 · 1/2" Close Nipple1 · 7/8 Flare To 1/2 Female Connector9 · Regualator, Nat Assembly7 · Pressure Reg.(nat.)8 · Fitting, Flare, Brass

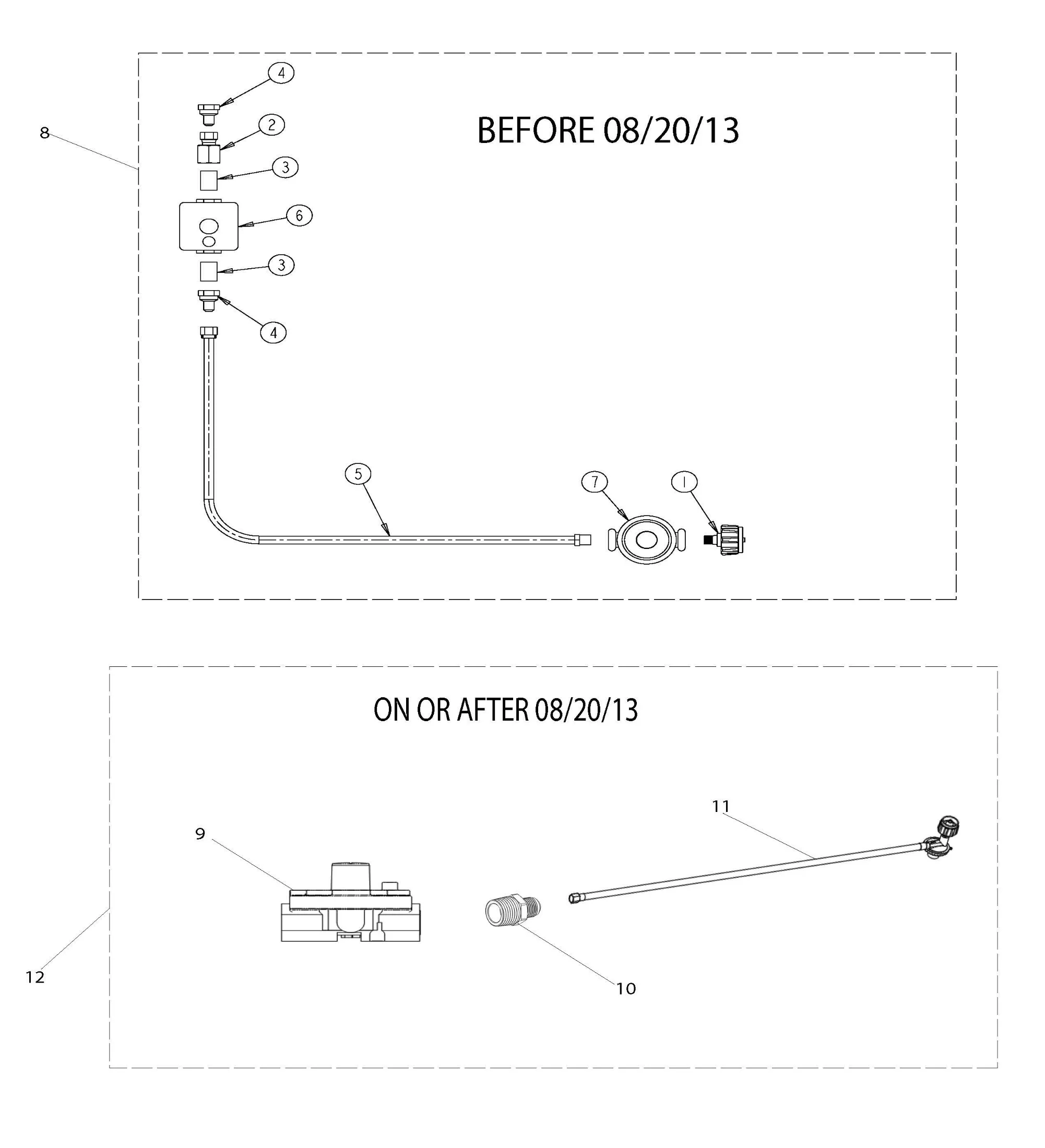

9 LP Gas Asm

−Fit+

8 · Regulator Assembly - L.P. W/hose6 · Pressure Regulator (L.P.)4 · 1/2" X 3/8" Flare Adapter (VGBQ)4 · 1/2" X 3/8" Flare Adapter (VGBQ)3 · 1/2" Close Nipple3 · 1/2" Close Nipple2 · 1/2"NPT To 3/8" Flare Coupling1 · Cylinder Connection5 · High Pressure LP Hose7 · LP Tank Regulator (VGBQ)12 · Regulator, Hose, LP Assembly11 · Regualtor, LP, High Pressure, Assembly10 · Adpt, Str, Male, Cmpn, Flre, Brs, 45 Deg9 · Pressure Regulator (L.P.)
