Viking VGBQ5304RT Grill Parts

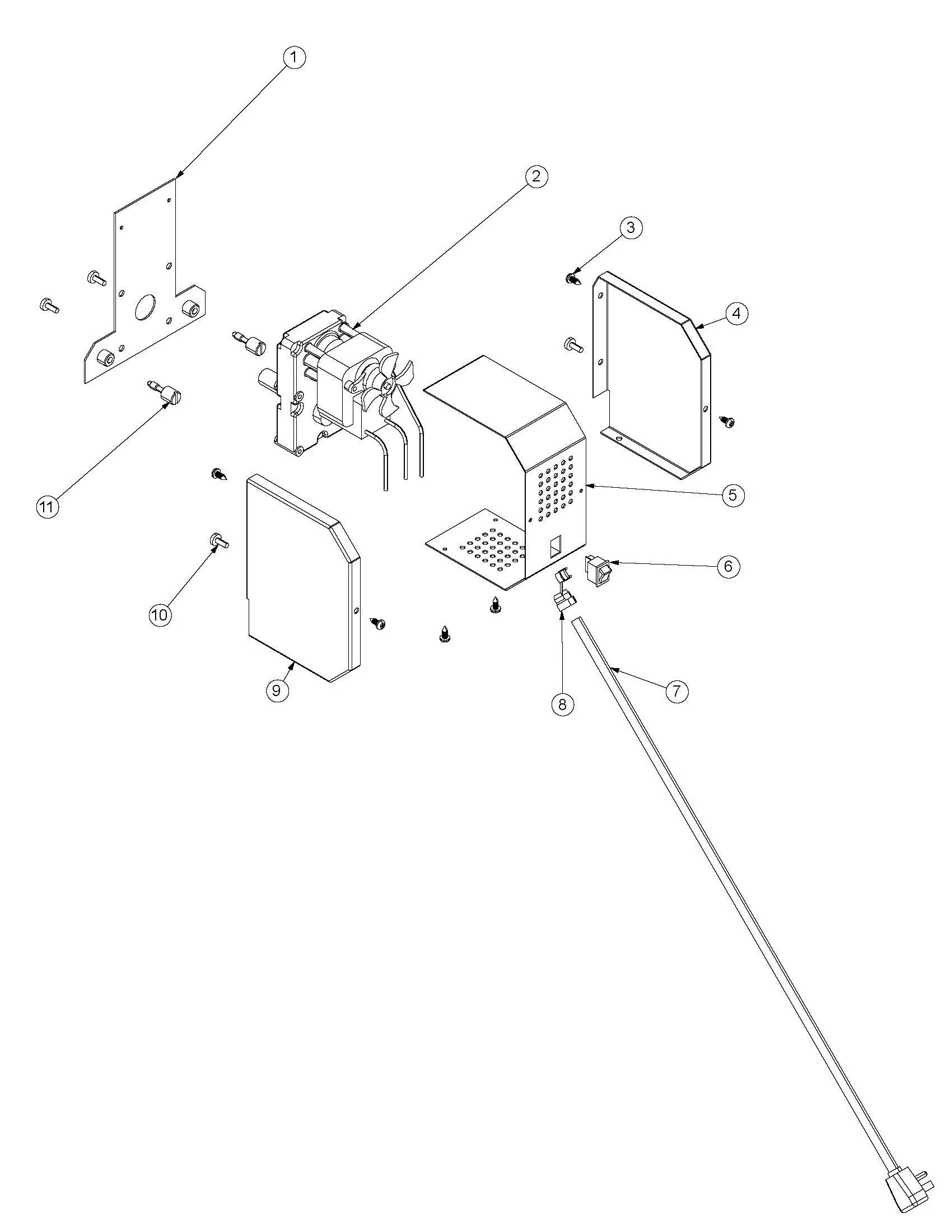

1 Rotisserie Motor Assembly

−Fit+

1 · Rot Motor Mounting Plate Assembly2 · Rotis. Motor3 · #10 X 1/2" Pan Phil. Tek.ss4 · Phase II Rotis Box Front5 · Phase II Rotis Cover6 · Rotis Switch7 · Electrical Power Cord8 · Snap Thru Bushing 1/4"DIA Cord9 · Phase II Rotis Box Front10 · #10-24 X 1/2" Ph.tr. M.s. SS11 · Rotis. Fastener Knob

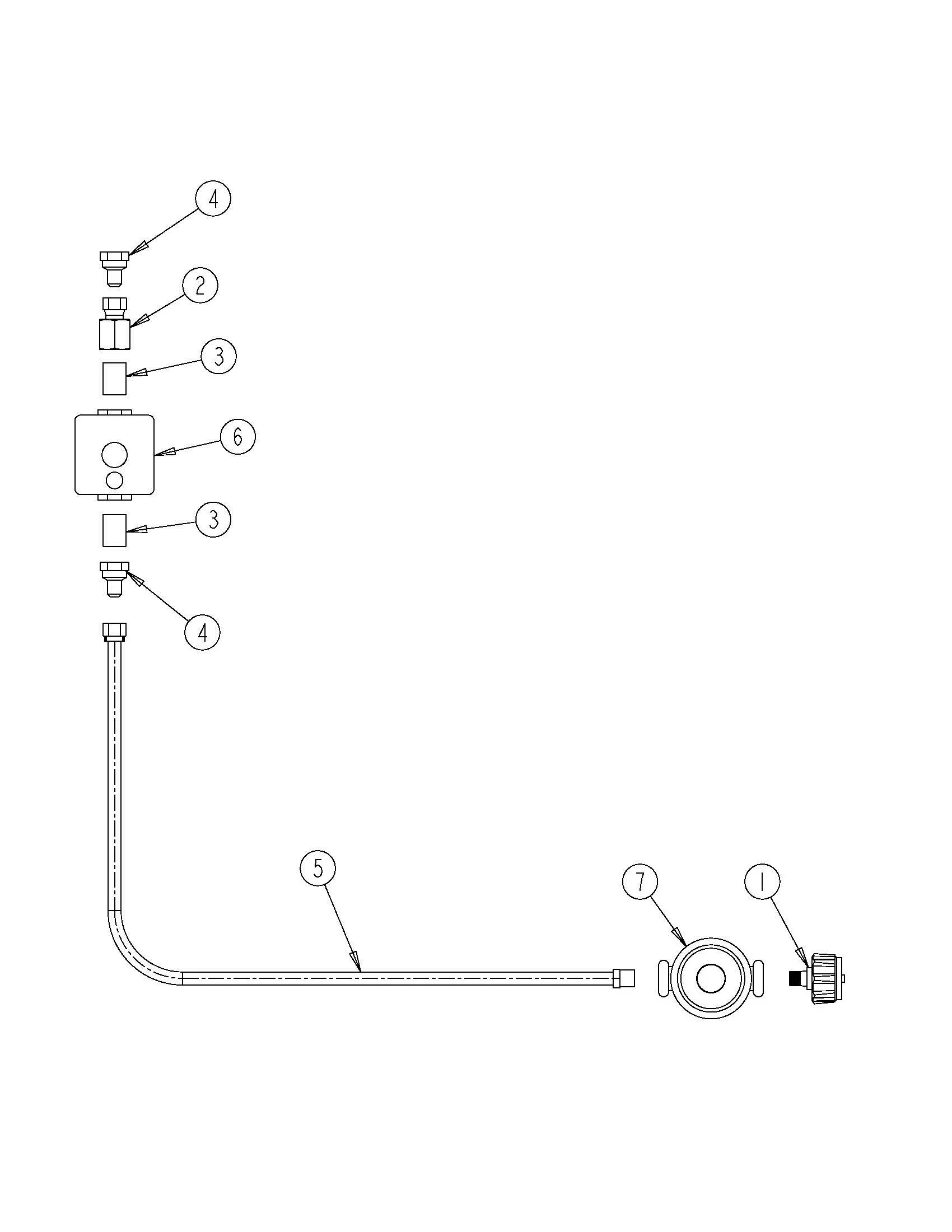

2 LP Regulator Assembly

−Fit+

1 · Cylinder Connection2 · 1/2"NPT To 3/8" Flare Coupling3 · 1/2" Close Nipple4 · 1/2" X 3/8" Flare Adapter (VGBQ)3 · 1/2" Close Nipple5 · High Pressure LP Hose4 · 1/2" X 3/8" Flare Adapter (VGBQ)6 · Pressure Regulator (L.P.)7 · LP Tank Regulator (VGBQ)

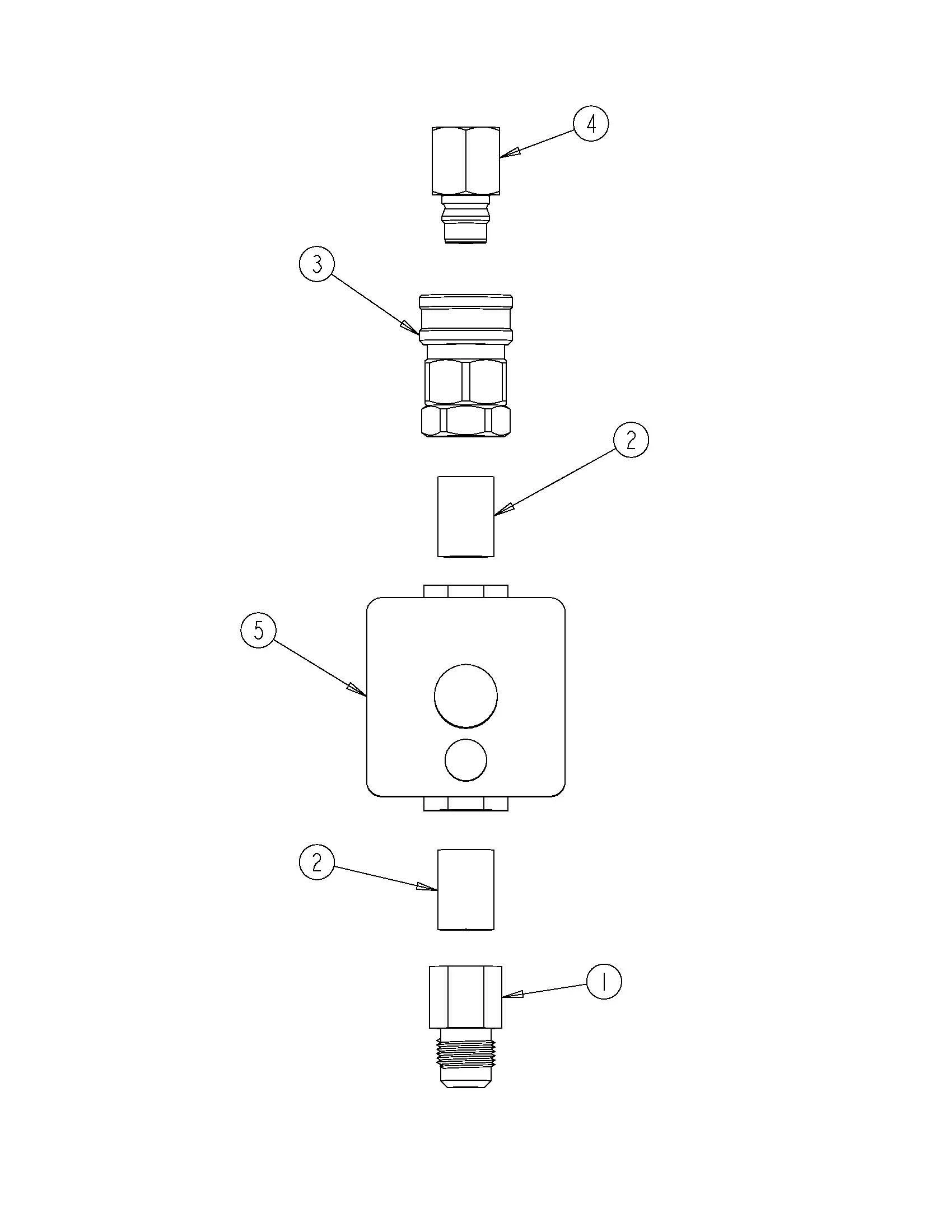

3 Natural Regulator Assembly

−Fit+

1 · 7/8 Flare To 1/2 Female Connector2 · 1/2" Close Nipple2 · 1/2" Close Nipple3 · Nipple-Coupler Assy4 · Nipple-Coupler Assy5 · Pressure Reg.(nat.)

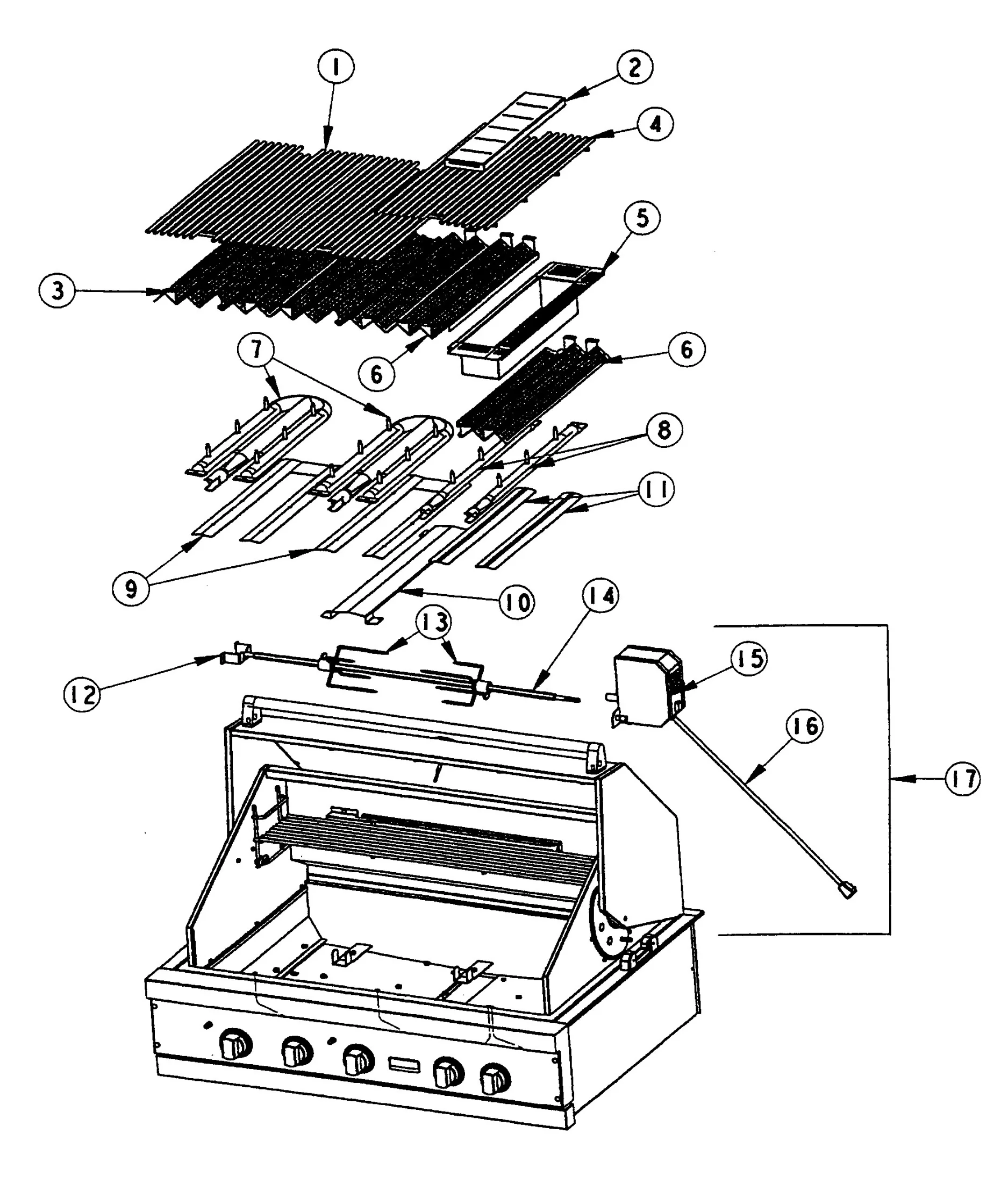

4 Burner-grate Assembly

−Fit+

17 · Rotis. Motor Assembly16 · Electrical Power Cord12 · Rotis. Roller Bracket15 · Rotis. Motor13 · Spit Fork10 · Burner Box Shield (Phase 2)14 · Rotis Spit Rod 539 · Burner Drip Shield11 · Smoker Drip Shield8 · Smoker / Grill Burner6 · Half Flavor Grid Phase 23 · 1/2 Flavor Grid Kit (2 Half Flavor Grids)5 · Smoker Box Bottom2 · Smoker Box Top1 · Full Grill Gate7 · Grill Burner6 · Half Flavor Grid Phase 24 · 1/2 Grill Gate

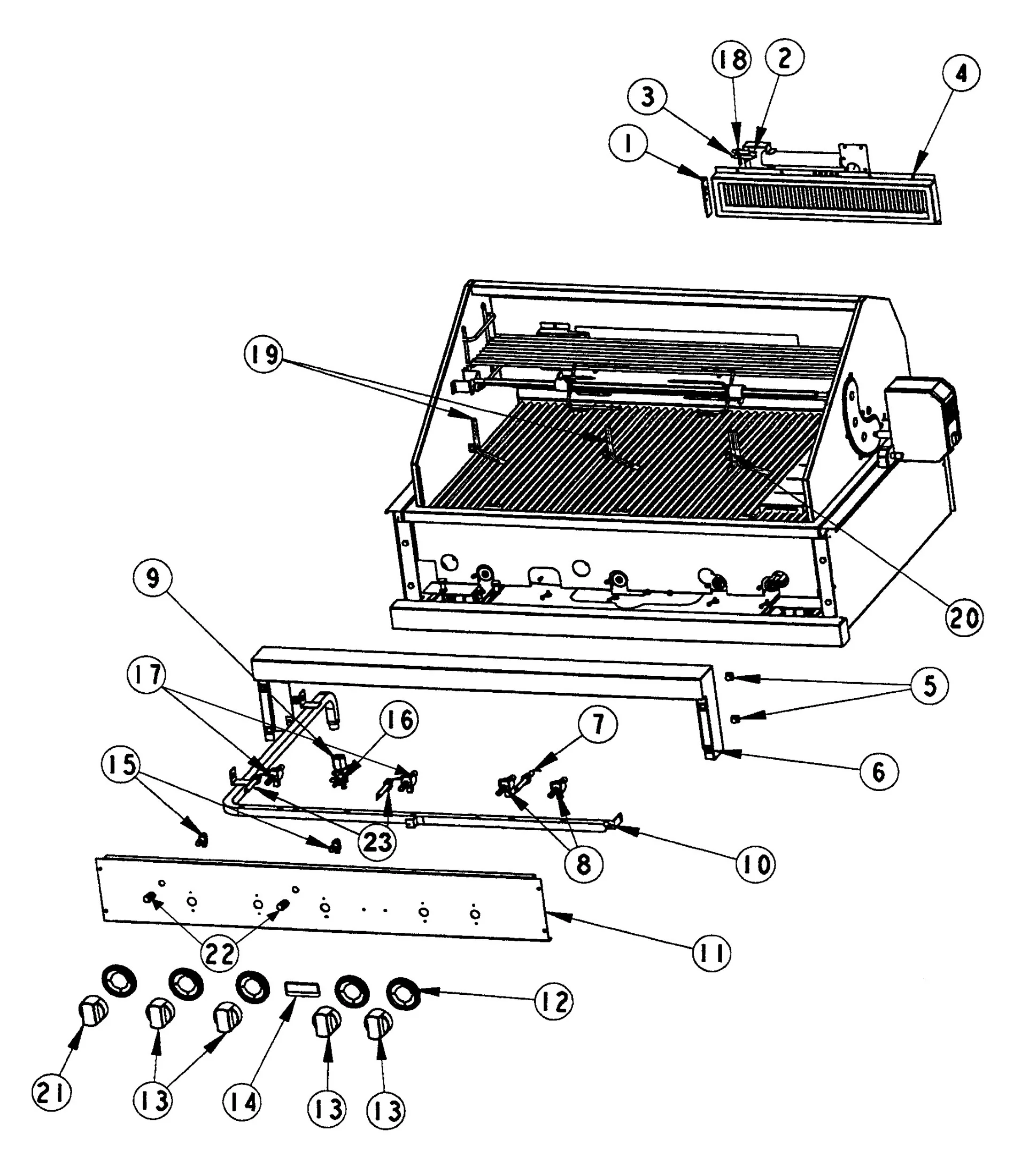

5 Control Valve Assembly

−Fit+

13 · Grill Burner Knob13 · Grill Burner Knob14 · 3" Logo Bkchrome13 · Grill Burner Knob21 · Rotis. Burner Knob11 · Ctrl Panel 53 Full Grill (Phase 2)22 · Oven Light Switch Knob Bk (Veso/d10 · PHASE2 53" Manifold8 · Grill Valve Nat. (5,000-12,500 BTU)23 · PB040287 Ignitor Kit6 · Landing Ledge (VGBQ53) T Series15 · Sparker Switch (Phase 2)7 · PB040288 Ignitor Kit5 · 10-24 Cage Nut SS17 · Grill Valve Nat. (7,600-25,000 BTU)20 · Smoker Flash Tube9 · Nipple-Coupler Assy19 · Flash Tube (VGBQ3002T)1 · IR Ignitor Bracket (Phase 2)3 · Ignitor For (BBQ Grill) (1647-89)4 · I/r Burner Assembly18 · Thermcouple Nut M08-VGBQ-87433000072 · Thermocouple12 · Bezel - Chrome16 · Natural Rotis Valve - Knob Kit

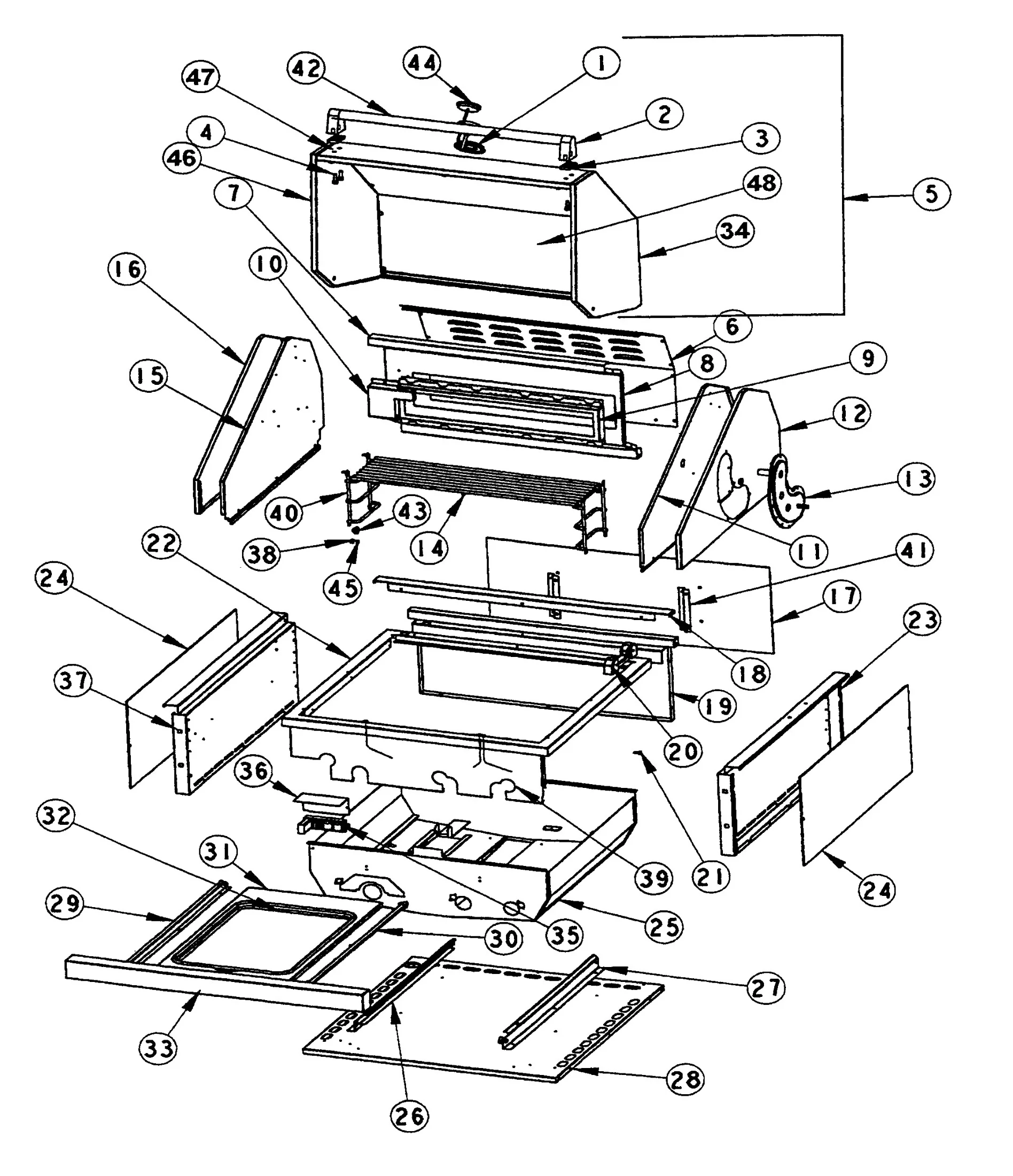

6 Grill Subassembly

−Fit+

26 · Drip Tray Slide - LH35 · Spark Module Kit29 · Drip Tray Runner LH (Phase 2)23 · Grill Box Side - RH40 · Warming Rack Support Service Kit (Includes LH And RH Support)43 · Drip Tray Wheel10 · I/R Igniter Cover5 · Canopy Assembly 53 (P2 Grill) Fg47 · Grill Canopy - 53"" (Phase 2)42 · Door/cnpy Hndle - Rplcs PE93009044 · Grill Thermometer1 · Thermostat Bezel2 · Handle End Cap Assembly3 · Door Handle Spacer48 · Canopy Heat Shield 53 Full34 · Canopy End RH (Phase 2)7 · 53 Front Housing Top Weld Assembly46 · Canopy End LH (Phase 2)4 · Cap Screw 1/4-20 X 3/4 SS16 · O/S Windshield Assy - LH15 · I/S Windshield - LH22 · Grill Frame 5324 · Side Heat Shield38 · 10-24 Keps Nut SS45 · 10 X 24 Countersunk S.S Screw14 · Warming Rack 53" Full6 · Rear Cover 53 (Phase 2)8 · Front Housing Assembly - 53 Full9 · Infrared Frame12 · O/S Windshield Assy - RH13 · Rotis. Gear Box Assembly41 · Heat Shield Bracket11 · I/S Windshield - RH17 · Rear Heat Shield - 5318 · Grill Box Trim - 5319 · Grill Box Back (VGBQ5323RT)20 · Rotis. Mount Casting36 · Spark Module Bracket (Phase 2)37 · Grill Box Side - LH24 · Side Heat Shield21 · #10 X 1/2" Pan Phil. Tek.ss39 · Grill Box Front - Full 53 (Phase 2)25 · Burner Box Assembly 53RH (Phase 2)27 · Drip Tray Slide - RH30 · Drip Tray Runner RH31 · Drip Tray 4132 · Grease Pan33 · 53" Drip Tray Handle28 · Grill Box Bottom 53

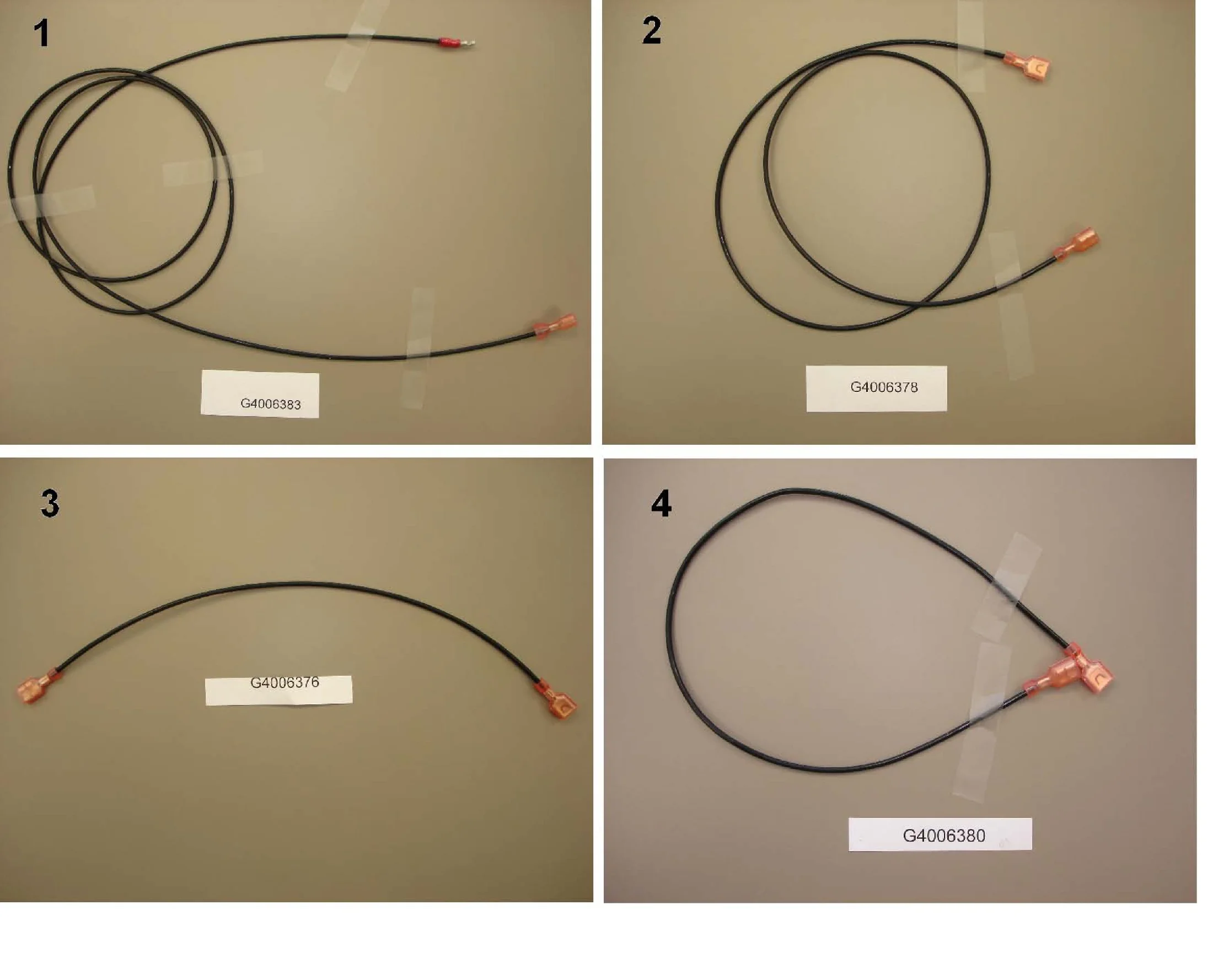

7 Wiring

−Fit+

1 · Wire Assembly (Vgbq-t Series) 502 · Wire Assembly (Vgbq-t Series) 254 · Wire Assembly (Vgbq-t Series) 153 · Wire Assembly (Vgbq-t Series) 10

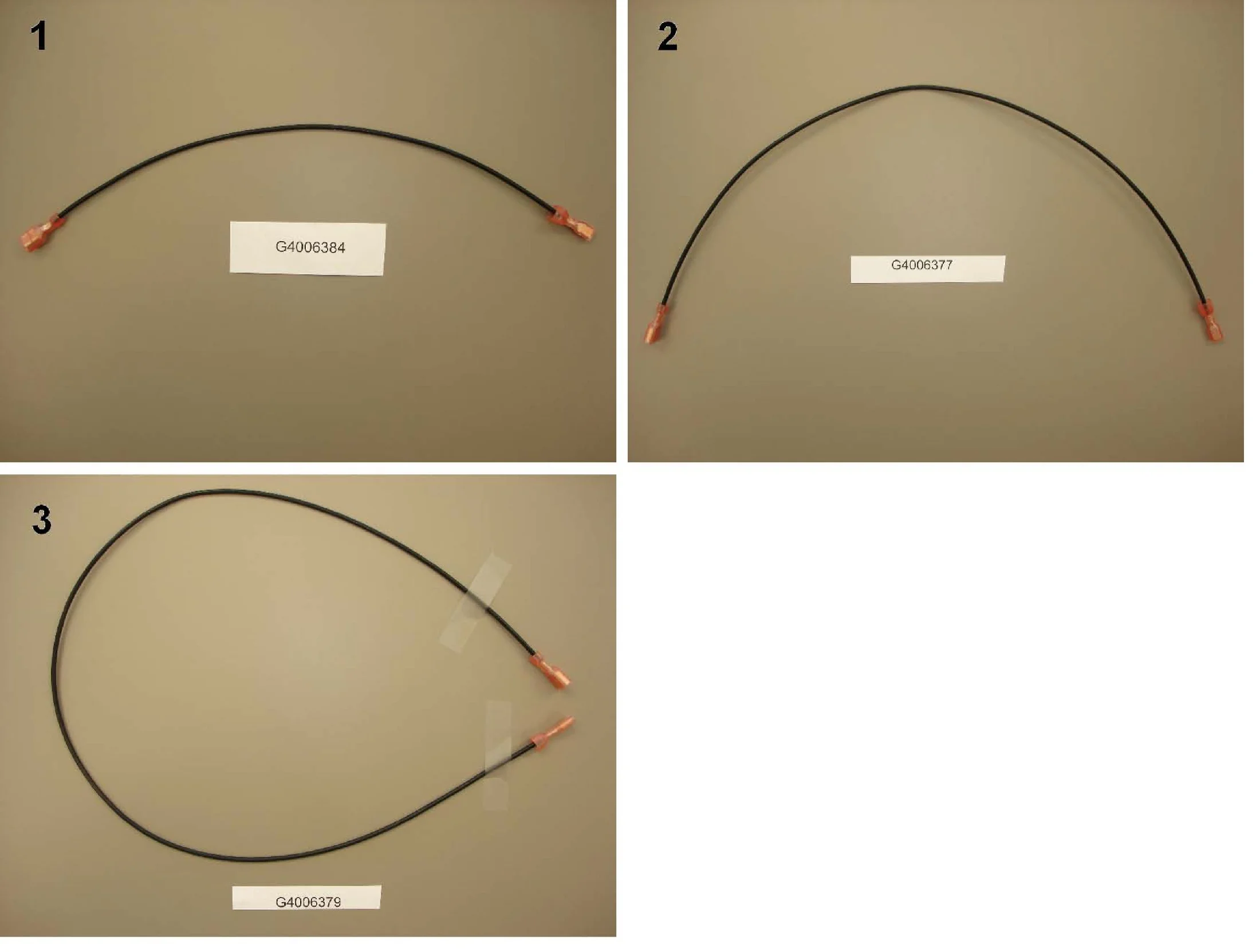

8 Wiring - Cont.

−Fit+

1 · Wire Assembly (Vgbq-t Series) 72 · Wire Assembly (Vgbq-t Series) 153 · Wire Assembly (Vgbq-t Series) 25

Part numbers come from Viking’s own parts lists. When Viking has replaced a part, we show the new number. Don’t see what you need? Call (866) 348-4618 or text (888) 691-8046.
