Viking VGIB242T Side Burner Parts

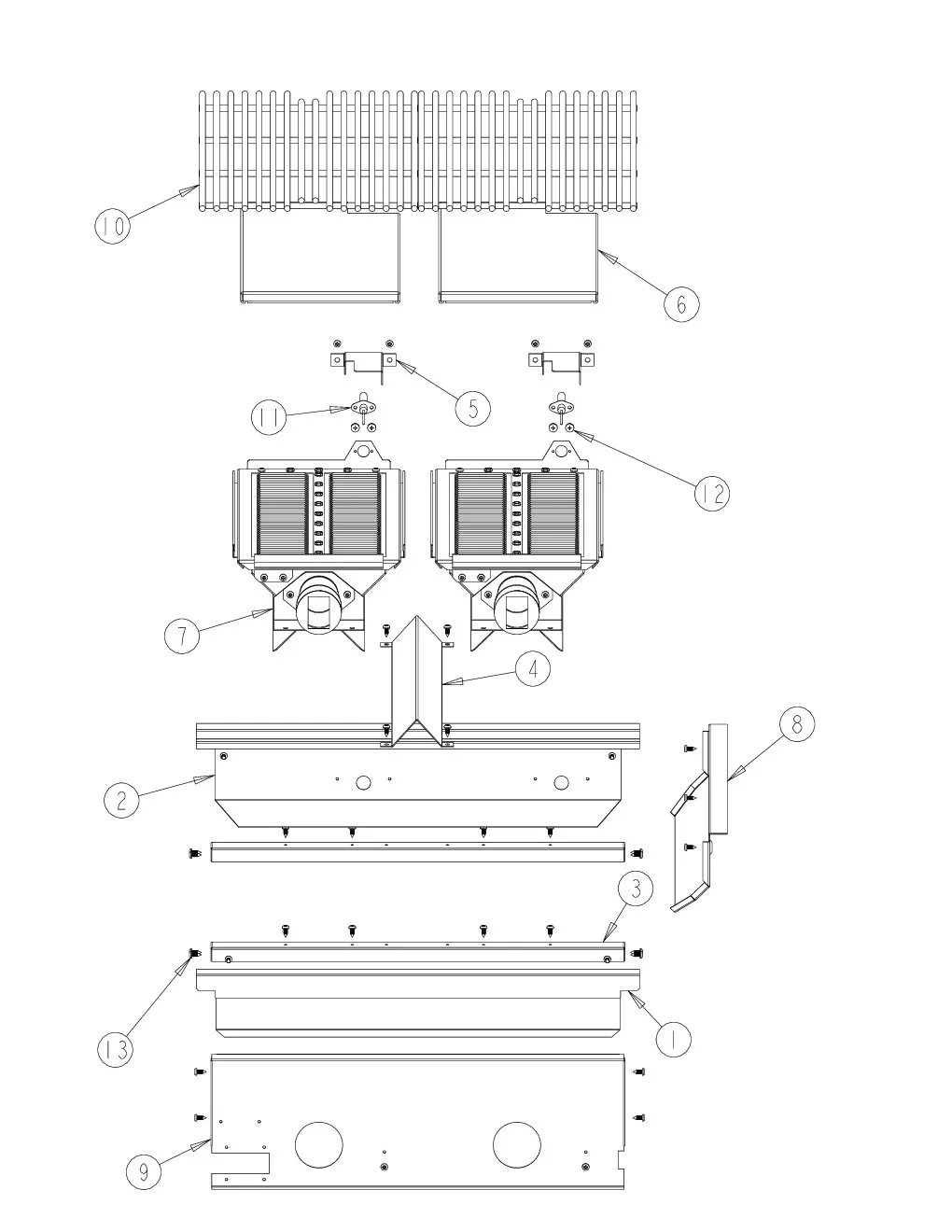

1 Burner Grate Area

−Fit+

10 · Full Grill Gate11 · PB040287 Ignitor Kit5 · IR Spark Ignitor Cover6 · Grease Screen12 · #10-24 X 1/2" Ph.tr. M.s. SS8 · Grease Diverter4 · Center Heat Shield7 · IR Burner Assembly, Vgib2 · Rear Grease Diverter3 · Burner Support Bracket1 · Front Grease Diverter9 · Grill Box Front13 · #10 X 1/2" Pan Phil. Tek.ss

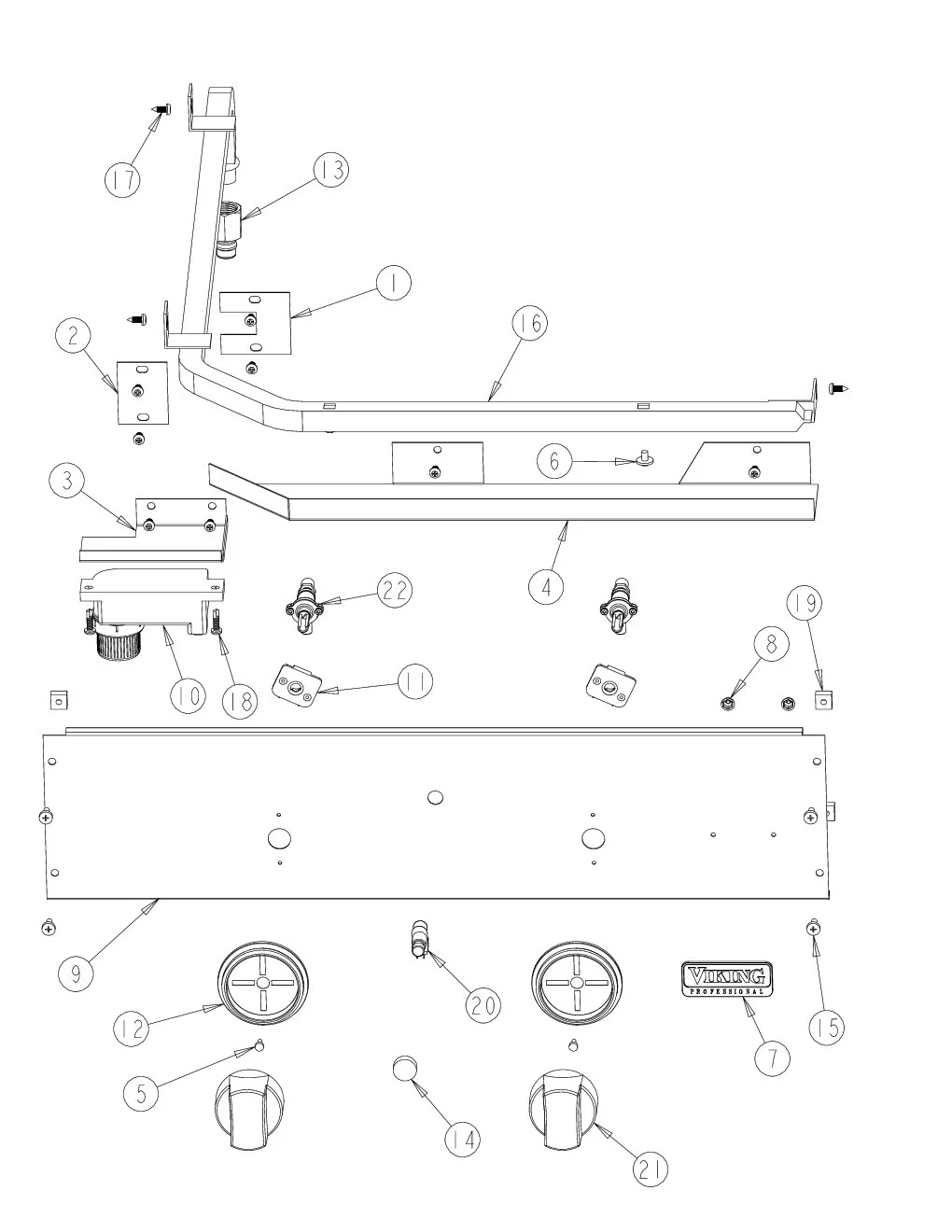

2 Control Cover

−Fit+

6 · Valve Bolt 1/4-20 UNC-2B 5/16" M.s.1 · Manifold Cover17 · #10 X 1/2" Pan Phil. Tek.ss2 · Manifold Cover3 · Bracket, Spark Module10 · Spark Module11 · Ignitor Switch22 · I/r Burner Valve (Nat)16 · 24" Trusear Griller Manifold13 · Nipple-Coupler Assy4 · Venturi Cover8 · Capped Washer Pal Nut19 · 10-24 Cage Nut SS18 · Screw, #10 x 3/4", PH Panhd, Self-drilling, SS12 · Bezel, Knob9 · Control Panel (VGIB241T)5 · #6 X 3/8" Pan Phil. Tek SS14 · Oven Light Switch Knob Bk (Veso/d20 · Sparker Switch (Phase 2)21 · Outdoor IR Grill Knob7 · 3" Logo Bkchrome15 · #10-24 X 1/2" Ph.tr. M.s. SS

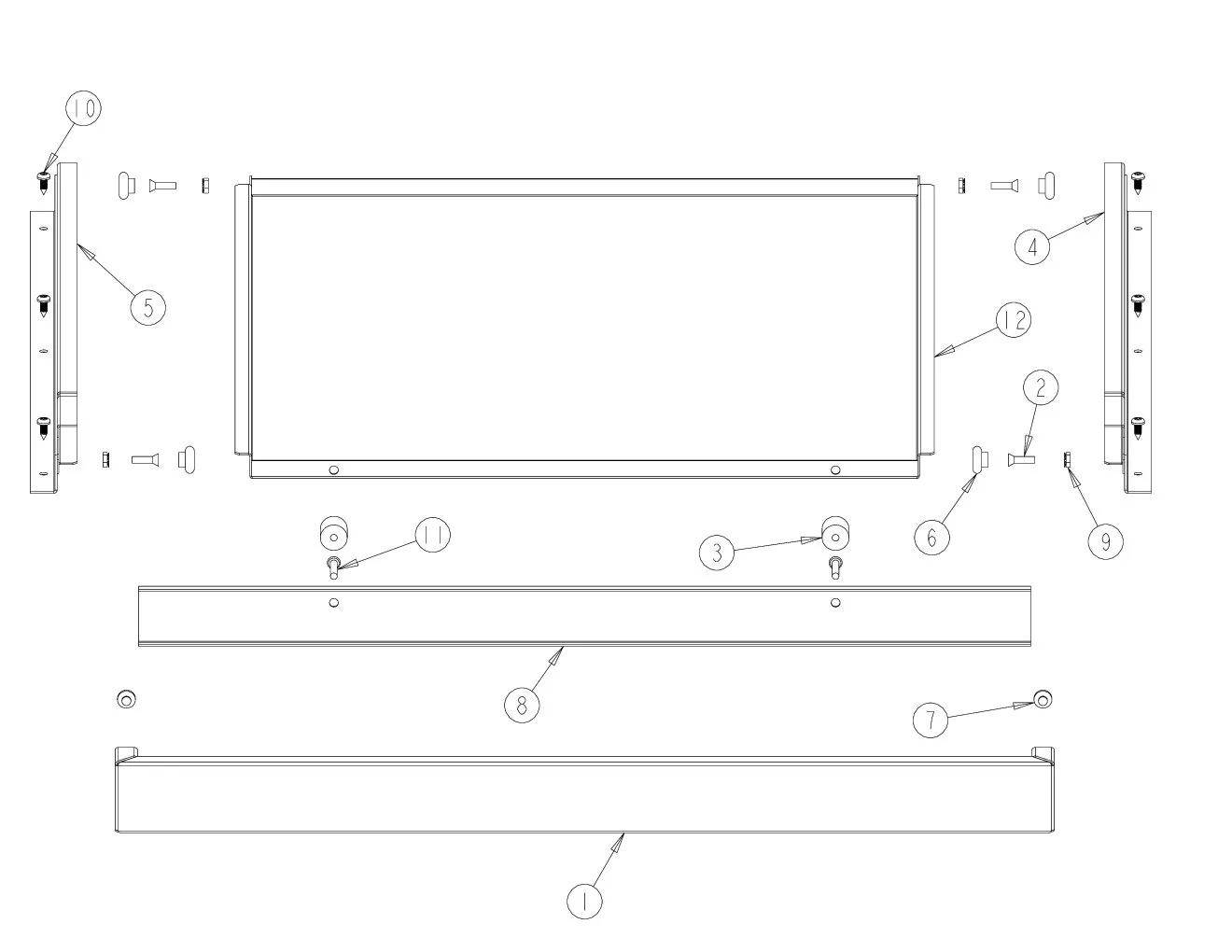

3 Drip Tray

−Fit+

10 · #10 X 1/2" Pan Phil. Tek.ss5 · Drip Tray Slide - LH11 · #10 X 1 1/4 PH. Pan HD. T(a) Nylok8 · Handle Back (VGIB241)3 · BUSHING(.194ID/.750OD/.750LONG)6 · Drip Tray Wheel7 · Grommet Bumper9 · 10-24 Keps Nut SS2 · 10 X 24 Countersunk S.S Screw12 · Drip Tray (VGIB241)4 · Drip Tray Slide - RH1 · Drip Tray Handle

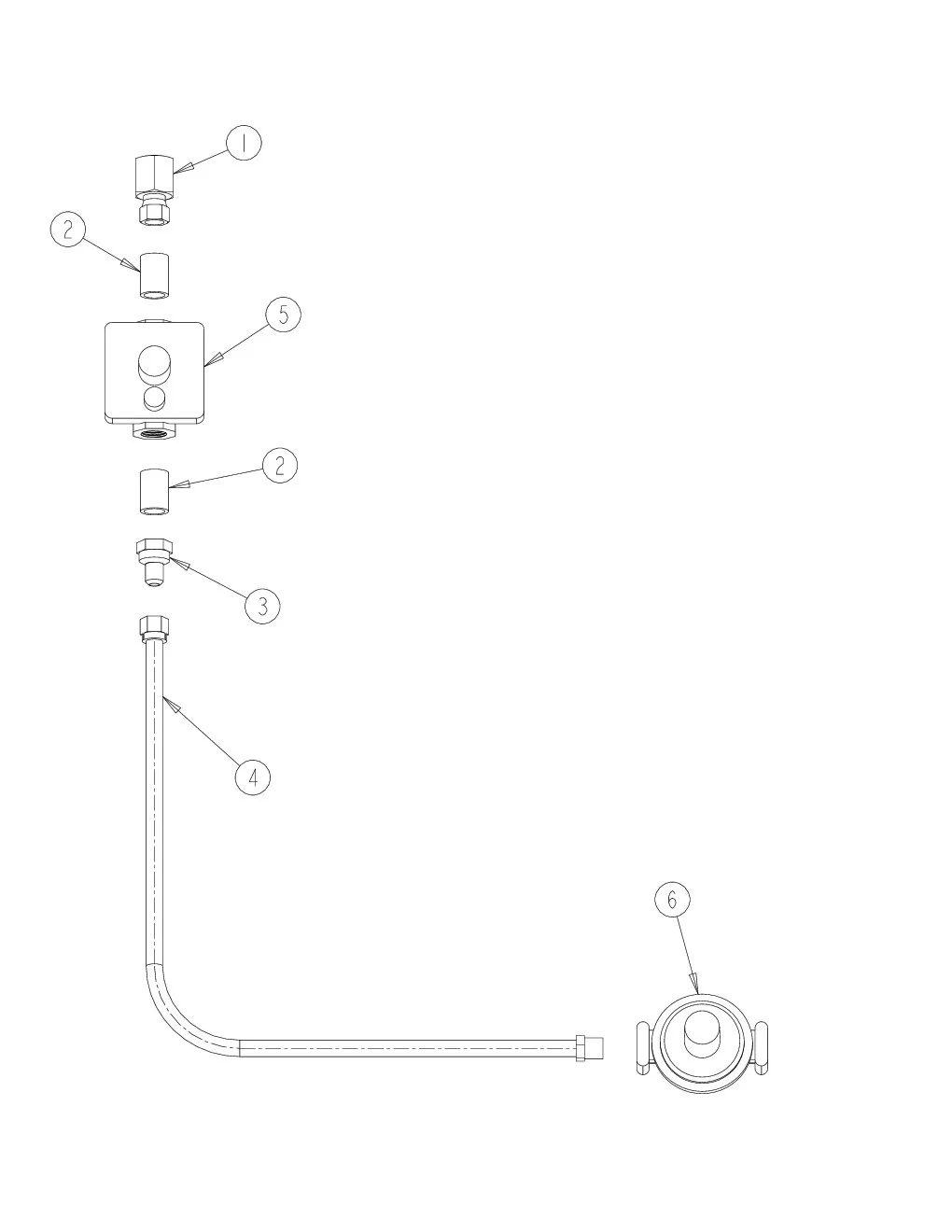

4 LP Gas Connections

−Fit+

1 · 1/2"NPT To 3/8" Flare Coupling2 · 1/2" Close Nipple5 · Pressure Regulator (L.P.)2 · 1/2" Close Nipple3 · 1/2" X 3/8" Flare Adapter (VGBQ)4 · High Pressure LP Hose6 · LP Tank Regulator (VGBQ)

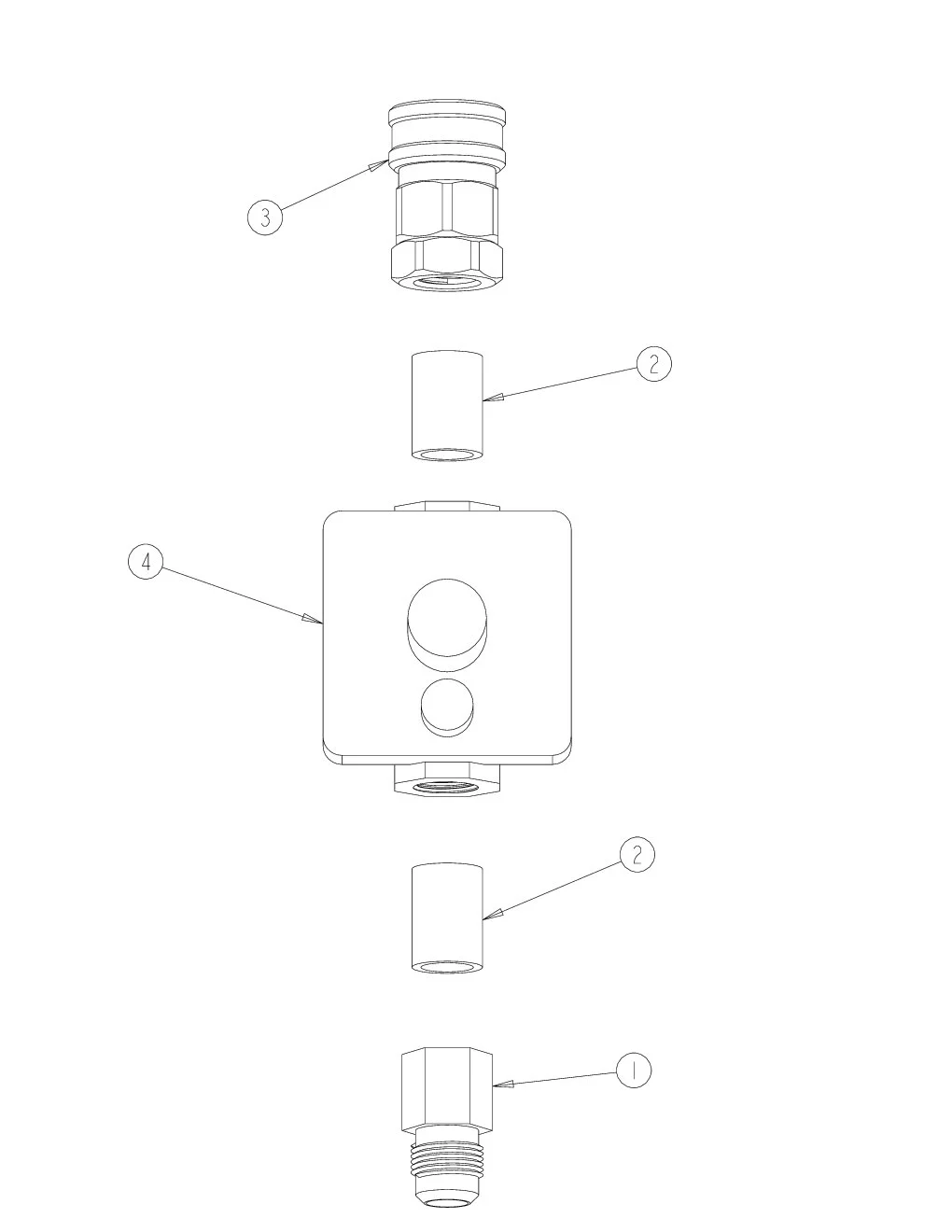

5 Natural Gas Connections

−Fit+

1 · 7/8 Flare To 1/2 Female Connector4 · Pressure Reg.(nat.)3 · Nipple-Coupler Assy2 · 1/2" Close Nipple2 · 1/2" Close Nipple

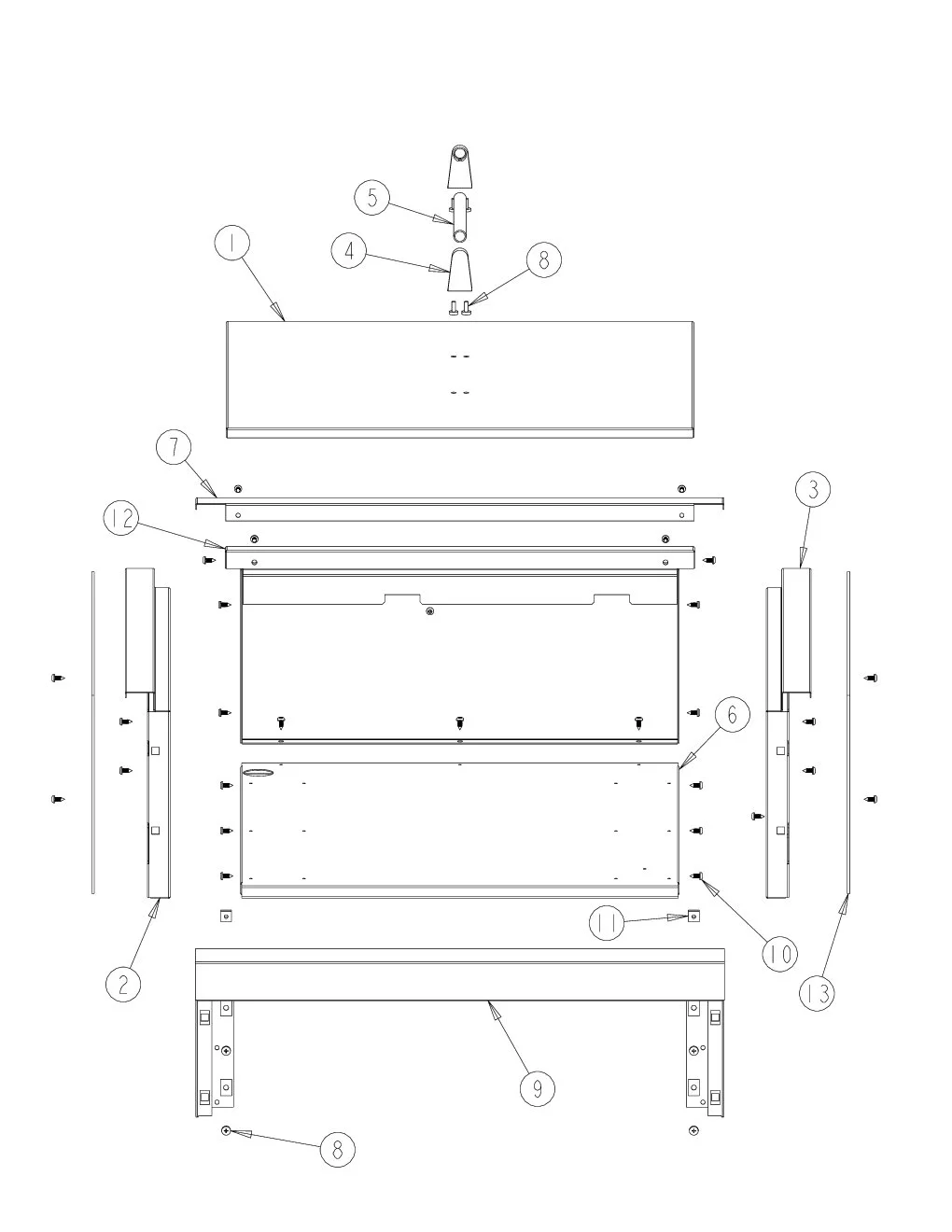

6 Unit Exterior

−Fit+

3 · Grill Box Side, RH1 · Cover (VGIB241T)4 · Handle End Cap Chrome Outdoor Cabinet5 · VGIQ30 Cover Handle8 · #10-24 X 1/2" Ph.tr. M.s. SS7 · Outdoor Wok Cabinet Rear Trim P212 · Side Burner Box Back (VGWT241T)6 · Outdoor Wok Bottom (VGWT241T)2 · Grill Box Side, LH8 · #10-24 X 1/2" Ph.tr. M.s. SS9 · Outdoor Wok Landing Ledge Phase II11 · 10-24 Cage Nut SS10 · #10 X 1/2" Pan Phil. Tek.ss13 · Side Heat Shield

Part numbers come from Viking’s own parts lists. When Viking has replaced a part, we show the new number. Don’t see what you need? Call (866) 348-4618 or text (888) 691-8046.
