Viking VGIQ55404RE Grill Parts

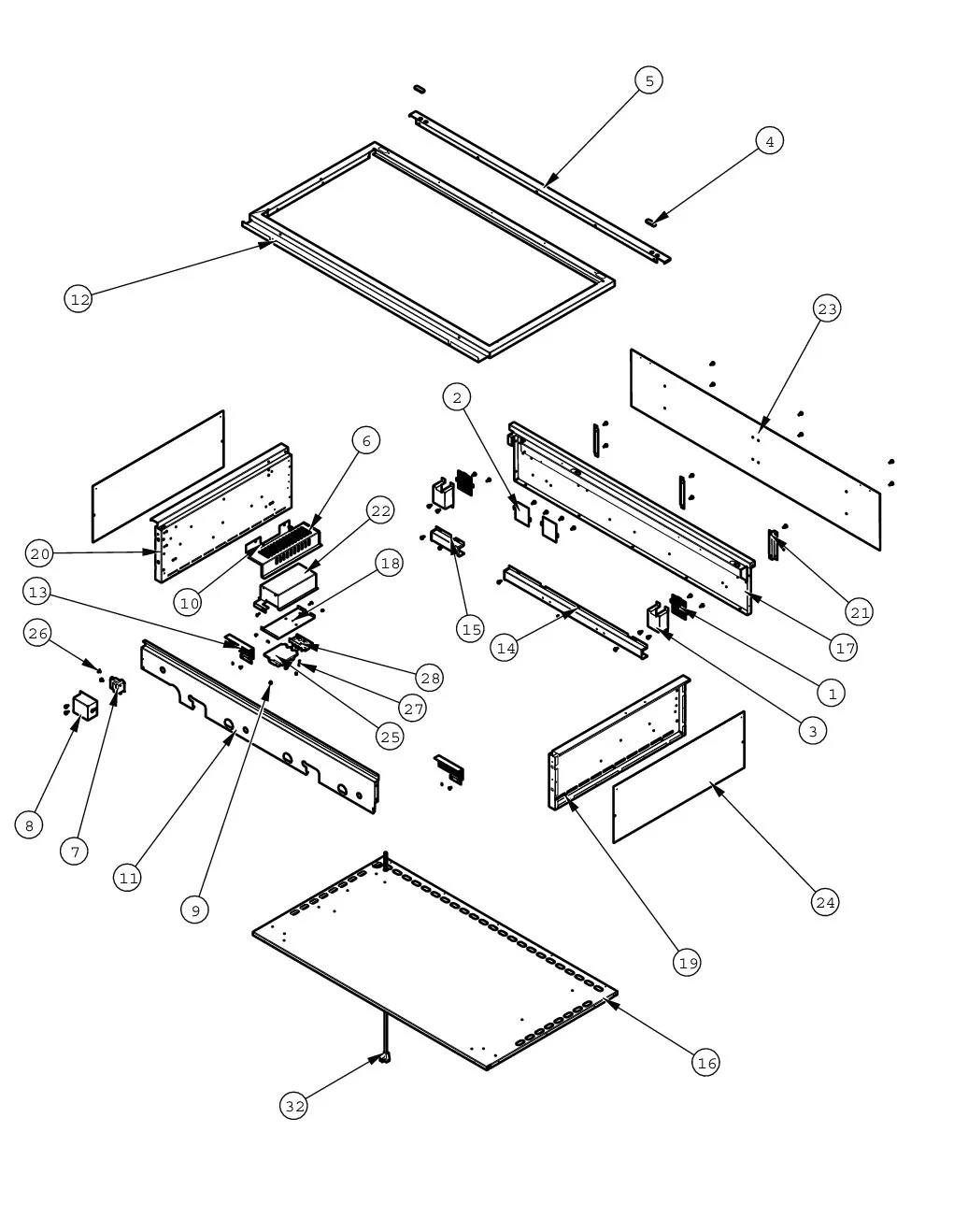

1 Base

−Fit+

32 · Grill Power Supply Cord (8 Ft)24 · Side Heat Shield7 · Sce, Pwr, LED, 12VAC3 · Grill Receptacle Box27 · Screw, #10 x 3/4", PH Panhd, Self-drilling, SS28 · E Series Terminal Block26 · Srw #10 X 24 X 3/8 Wafer HD TYPE2318 · 0+6 Sm/tb Housing Bottom20 · Grill Box Side - LH22 · 0+6 Spark Module Terminal Housing6 · Power Cord Shield2 · Grill Plug Plate23 · Rear Heat Shield - 534 · Rubber Door Bumper10 · #10 X 1/2" Pan Phil. Tek.ss12 · Frame, Grill, 535 · 5304 Grill Rear Trim15 · Grill Wire Channel - 42" Short14 · Grill Wire Channel - 53" Rear1 · Grill Plug Vent17 · Grill Box Back 5321 · Heat Shield Bracket25 · Spark Module (6B /6G/ 4Q)11 · Support, Grl, Fr, 539 · #10 X 1/2" Pan Phil. Tek.ss8 · Prot. Cover16 · Grill Box Bottom 5319 · Grill Box Side - RH13 · Plate, Guard

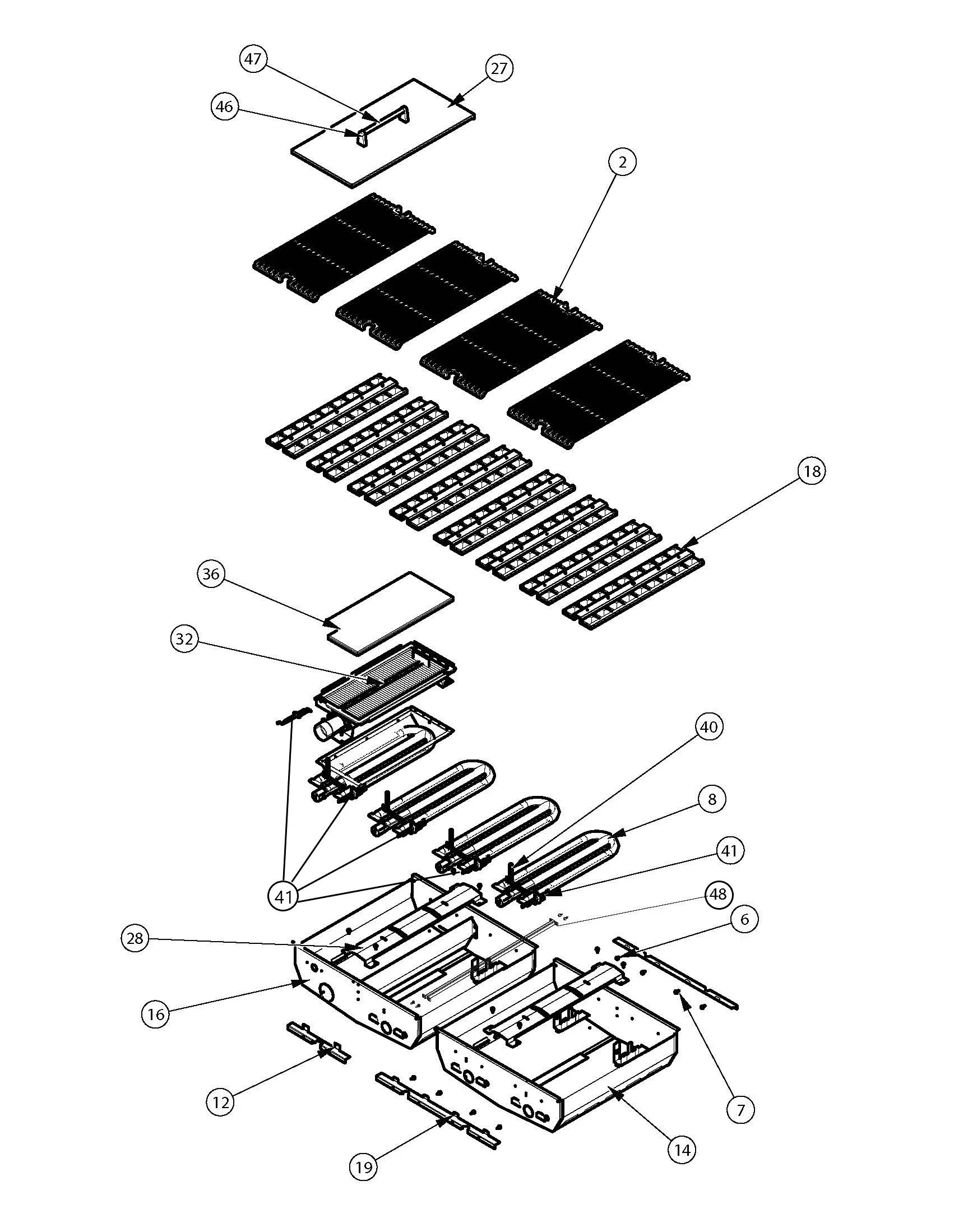

2 Burner Box

−Fit+

2 · Redesign BBQ Grate - Full (Grate Is Nla, Can Use 2 X 002370-000 As Replacement)6 · #10 X 1/2" Pan Phil. Tek.ss7 · #6-20 Hex Washer SS Screw8 · Burner, Grl, Assembly, U12 · Support, Tray, Briquette 30" Iq14 · Box, Bnr, Assembly, 3016 · Box, Bnr, Assembly, 30", Iq18 · Tray, Crmc, Briquette, Assembly19 · Bracket, Spacer, Briquette27 · VGIB151/VGIQ Cover28 · Burner Box Shield (Phase 2)32 · IR Burner Assembly36 · Grease Screen40 · Flash Tube (VGBQ3002T)41 · PB040288 Ignitor Kit41 · PB040288 Ignitor Kit46 · Handle End Cap Chrome Outdoor Cabinet47 · VGIQ30 Cover Handle48 · Burner Box Center Trim

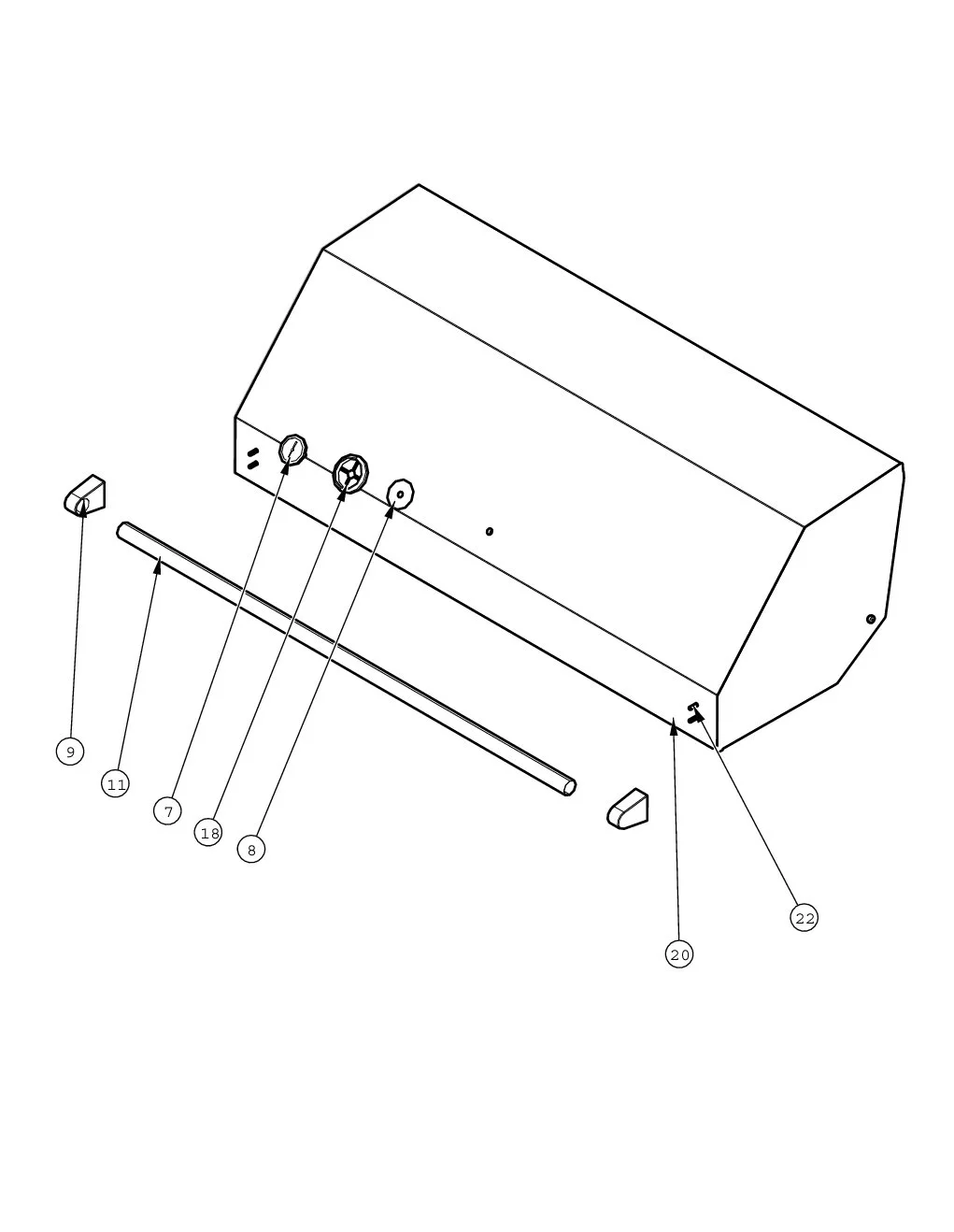

3 Canopy

−Fit+

20 · Hood, Outer Welded Assembly, BQ55422 · 1/4-20 X .625 Hex 316 SS7 · Gauge, Bmtl, Temperature9 · End Cap, Assembly, Door Handle11 · Handle, Canopy, BQ55418 · Bezel, Knob8 · Spacer, Wshr

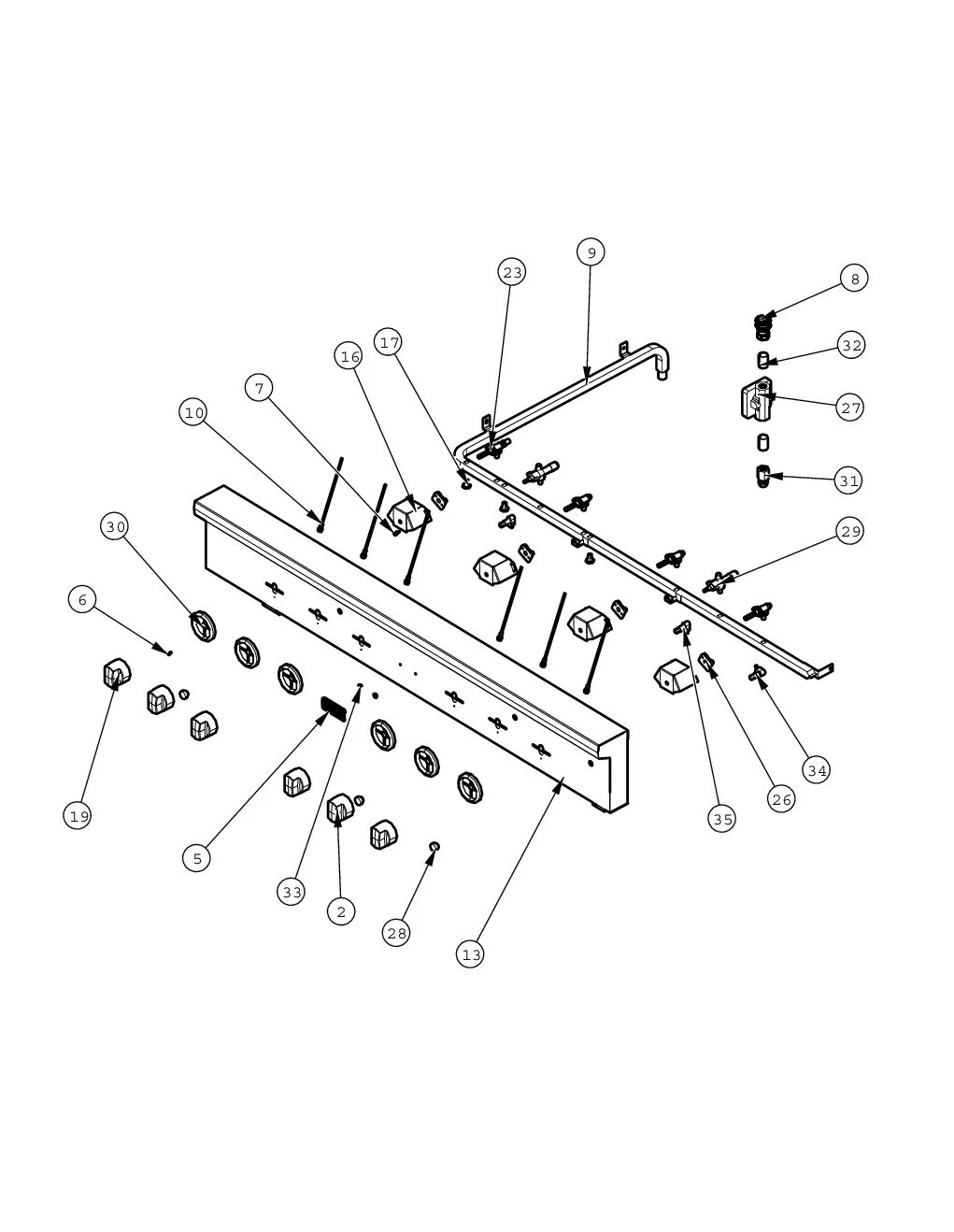

4 Control Panel

−Fit+

28 · Oven Light Switch Knob Bk (Veso/d2 · Grill Rotisserie Knob - SS33 · Capped Washer Pal Nut5 · Outdoor Logo - 3" Chrome26 · Ignitor Switch34 · Oven Light Switch (VGSO166) 90-DEG.6 · Scr, Dr, PH, Pnh, 410 SS, Nplt, 6-20 x 3/830 · Bezel, Knob31 · 1/2"NPT To 3/8" Flare Coupling27 · Pressure Reg.(nat.)32 · 1/2" Close Nipple17 · Manifold Plug23 · Gas Valve - Nat.10 · LED, Short, Assembly16 · Cover, Valve9 · Manifold, Grl, 538 · 1/2" X 3/8" Flare Adapter (VGBQ)29 · LP Rotis Valve - Knob Kit19 · Grill Knob - SS13 · Panel, Cntrl Weld Assembly VGIQ55404 W/graphics35 · Sparker Switch (Phase 2)

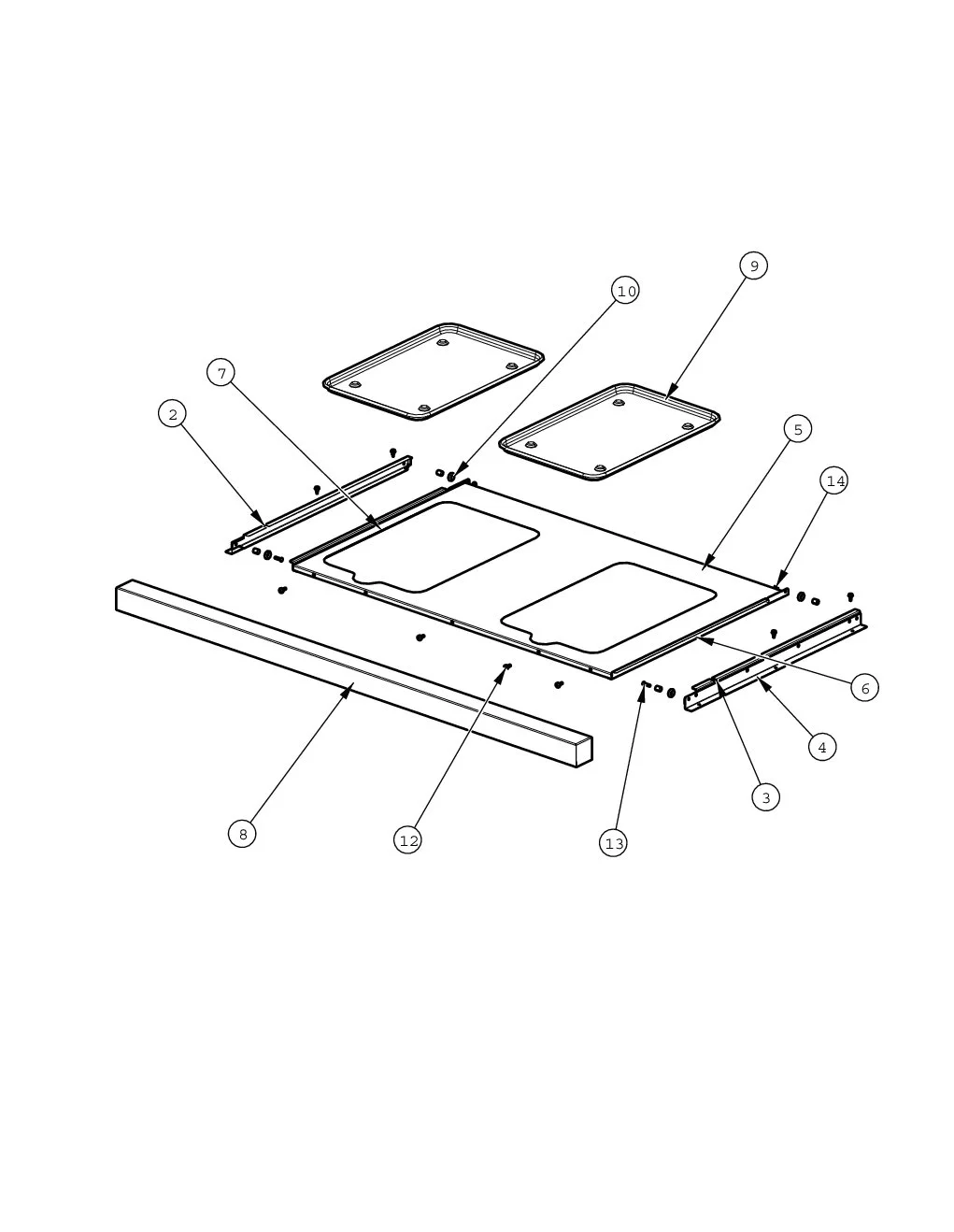

5 Drip Tray

−Fit+

8 · Handle, Drip Tray, 5543 · Drip Tray Slide - RH4 · Drip Tray Guide Bracket (Phase 2)6 · Drip Tray Runner RH2 · Drip Tray Slide - LH7 · Drip Tray Runner LH (Phase 2)9 · Grease Pan10 · Drip Tray Wheel5 · Drip Tray 4114 · 10-24 Keps Nut SS12 · #10-24 X 1/2" Ph.tr. M.s. SS

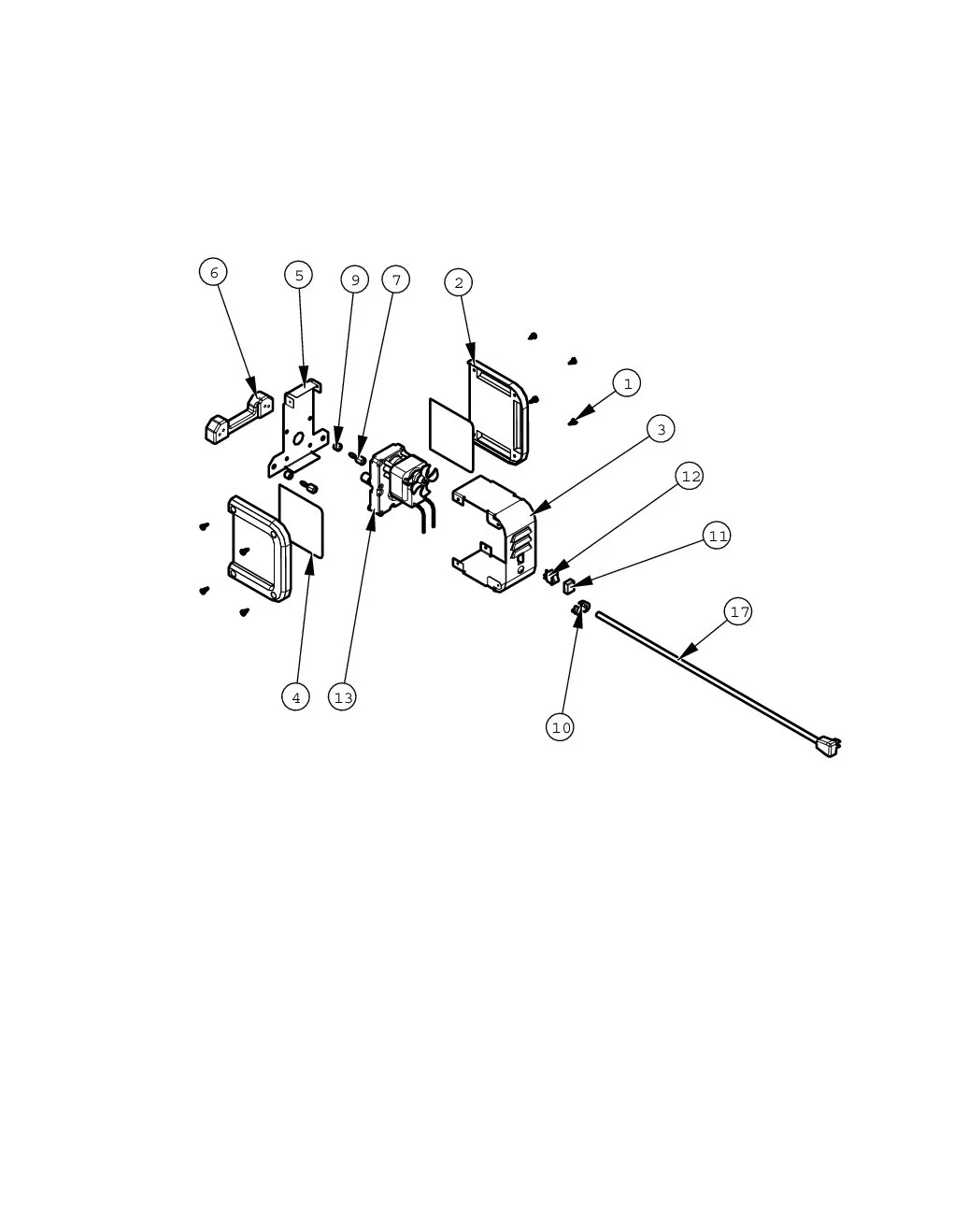

6 Motor

−Fit+

10 · Snap Thru Bushing 1/4"DIA Cord4 · Plate, Cover, Endcap17 · Electrical Power Cord3 · Bracket, Rotis Main Body2 · Endcap, Sprt Cover7 · Rotis. Fastener Knob9 · Capture Nut 1/4" #206 · Rotis. Mount Casting13 · Rotis. Motor11 · Rotis Switch Boot12 · Rotis Switch1 · #10 X 1/2" Pan Phil. Tek.ss5 · Bracket, Pnl, Back, Support

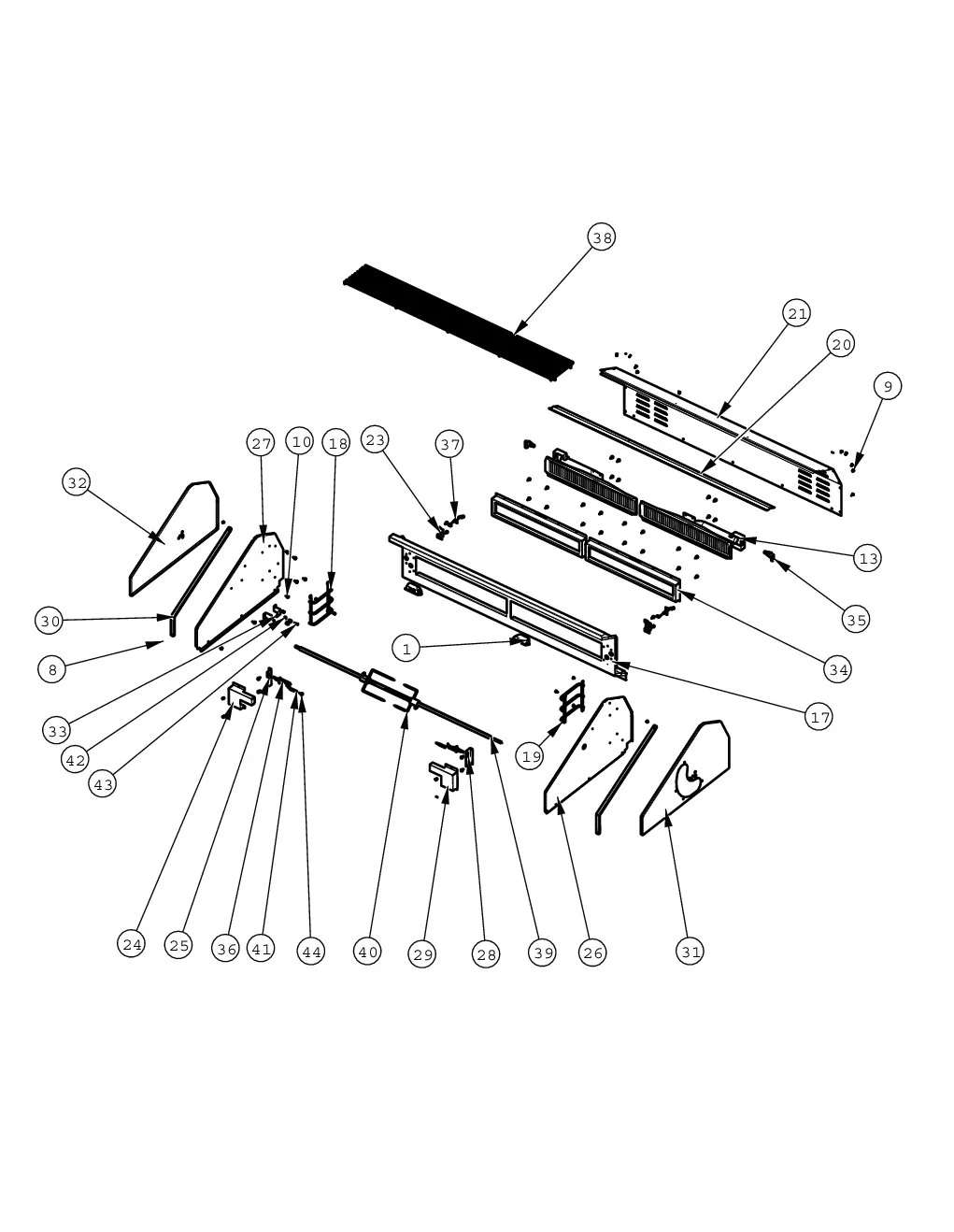

7 Upper Burners

−Fit+

26 · Inside Windshield RH39 · Rotis Spit Rod 5340 · Spit Fork44 · Thermcouple Nut M08-VGBQ-874330000741 · Thermocouple25 · IR Ignitor Bracket24 · I/r Ignitor Cover LH43 · 10 X 24 Countersunk S.S Screw42 · Drip Tray Wheel19 · Warming Rack Support RH33 · Rotis. Roller Bracket17 · Wall, Grill, Inner, Rear 55434 · Infrared Frame30 · Grill Windshield Trim13 · I/r Burner Assembly32 · Outside Windshield-lh37 · Flexible Rotisserie Ignitor27 · Inside Windshield LH23 · Flex Igniter Stand Off9 · #10 X 1/2" Pan Phil. Tek.ss38 · Shelf, BQ42", 304, Sst18 · Warming Rack Support LH1 · 120V Halogen Light Assembly35 · 90 Deg. Orifice Fitting20 · Shield, Top, Grill, 5421 · Cover, Rear, Grill, 548 · Scr, Dr, Fcskhp, 410 SS, Nplt, 8-18 x 3/436 · Wok Igniter29 · 53" RH Rotisserie Ignitor Cover28 · IR Ignitor Bracket 5331 · Outside Windshield - RH

8 Wiring

−Fit+

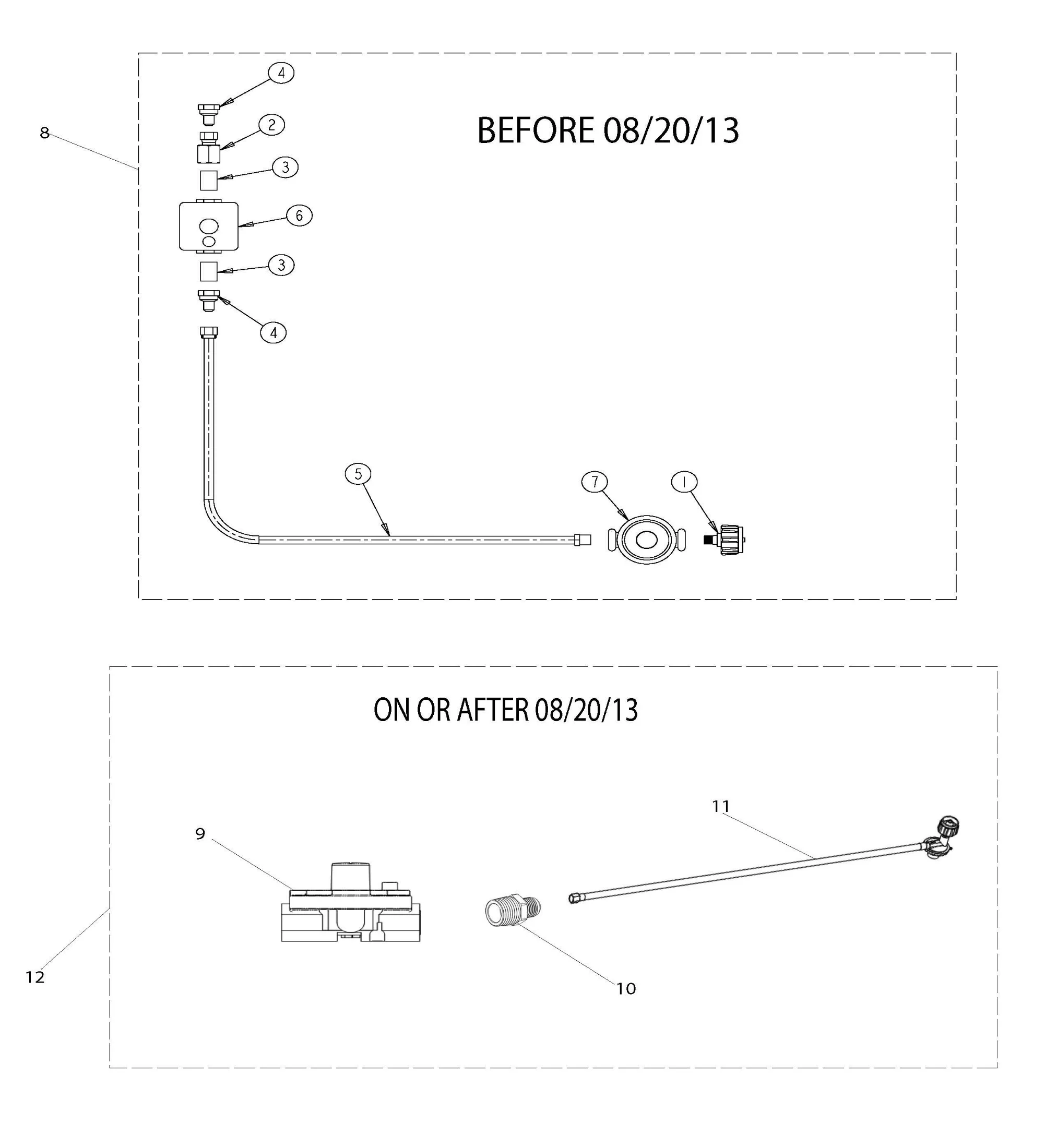

9 LP Gas Asm

−Fit+

8 · Regulator Assembly - L.P. W/hose6 · Pressure Regulator (L.P.)4 · 1/2" X 3/8" Flare Adapter (VGBQ)4 · 1/2" X 3/8" Flare Adapter (VGBQ)3 · 1/2" Close Nipple3 · 1/2" Close Nipple2 · 1/2"NPT To 3/8" Flare Coupling1 · Cylinder Connection5 · High Pressure LP Hose7 · LP Tank Regulator (VGBQ)12 · Regulator, Hose, LP Assembly9 · Pressure Regulator (L.P.)10 · Adpt, Str, Male, Cmpn, Flre, Brs, 45 Deg11 · Regualtor, LP, High Pressure, Assembly

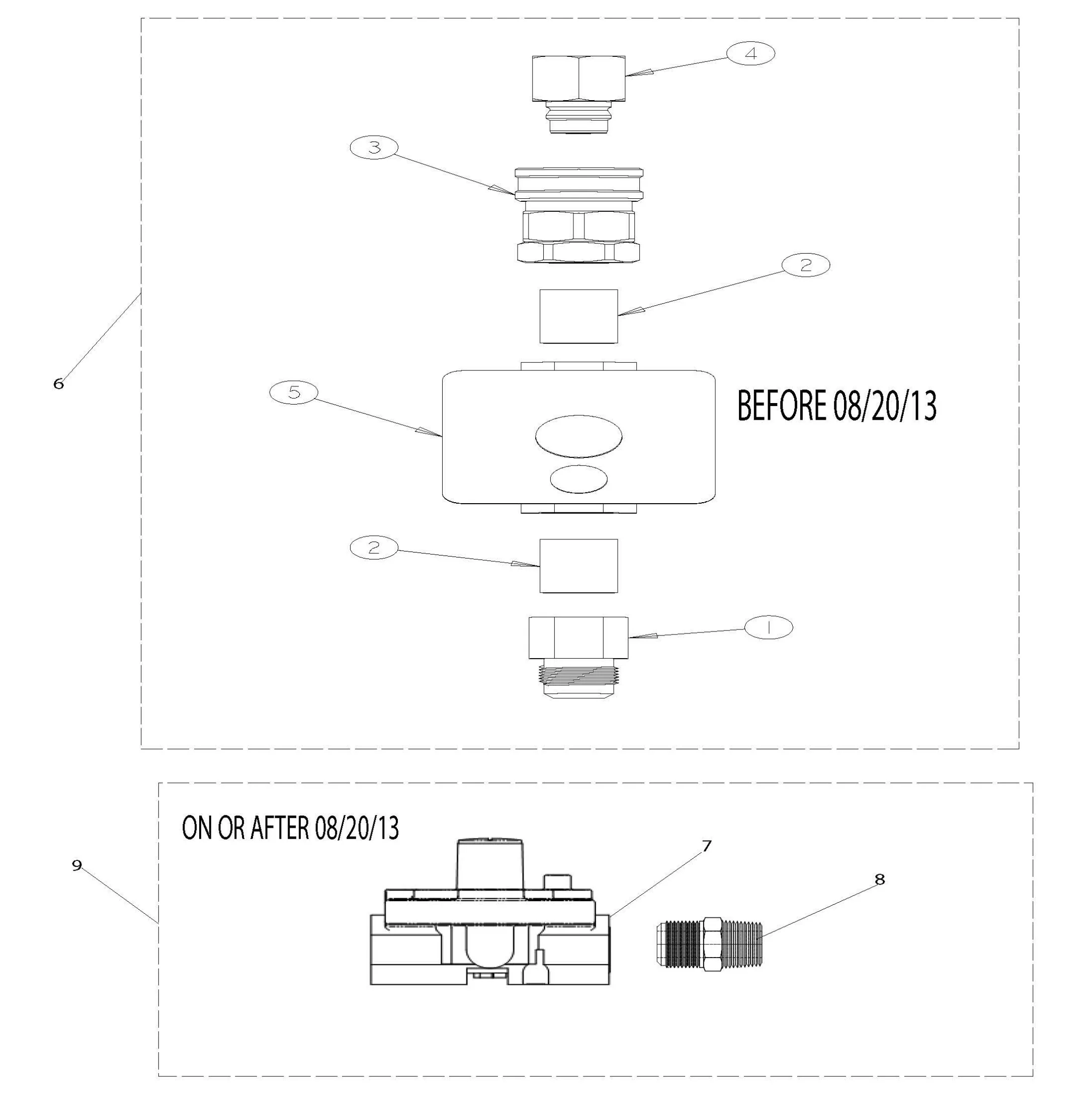

10 Natural Gas Asm

−Fit+

6 · Regulator Assembly Nat5 · Pressure Reg.(nat.)4 · Nipple-Coupler Assy3 · Nipple-Coupler Assy2 · 1/2" Close Nipple2 · 1/2" Close Nipple1 · 7/8 Flare To 1/2 Female Connector9 · Regualator, Nat Assembly7 · Pressure Reg.(nat.)8 · Fitting, Flare, Brass

Part numbers come from Viking’s own parts lists. When Viking has replaced a part, we show the new number. Don’t see what you need? Call (866) 348-4618 or text (888) 691-8046.
