Delta Heat Parts Diagrams
Pick your Delta Heat model, tap any red dot on the diagram, and see the exact part number and how many your grill uses.
Find your modelThe tag is under the right side of the control panel. Remove the drip pan to see it.
Tap a red dotEvery dot is a replacement part, with the part number and quantity.
Order or askOpen the part in our store, or text us and we’ll confirm the fit.
Choose your grill
Pick your series and width. G models are grill only; R and RS models have the infrared rotisserie (RS adds a sear zone).
| 26″ | 32″ | 38″ | |
|---|---|---|---|
| DHBQ D-Series | Grill only | Grill onlyRotisserie | Grill onlyRotisserie |
| DHBQ C-Series | Grill only | Grill onlyRotisserie | Rotisserie |
| DHBQ B-Series | Grill only | Grill onlyRotisserie | Rotisserie |
Find your model and serial number
- Remove the drip pan and set it aside so you can see the data plate.
- Look up under the right side of the control panel. The tag is on the bottom of the control panel, facing down, so crouch down or use your phone camera.
- Text us a photo of the tag. We’ll tell you exactly which parts fit.
Reading a DHBQ model number
DHBQ32RS-DN: 32 is the width in inches, R means it has the infrared rotisserie (G is grill only), S means a sear zone burner, -D is the series, and N or L is natural gas or propane. A K or W after the dash (DHBQ32R-KN) means a black or white front panel on a D-Series grill.
B, C or D-Series? The letter after the dash on the tag is the series. Many parts changed between series, so check before you order.
Watch: where to find your model and serial number

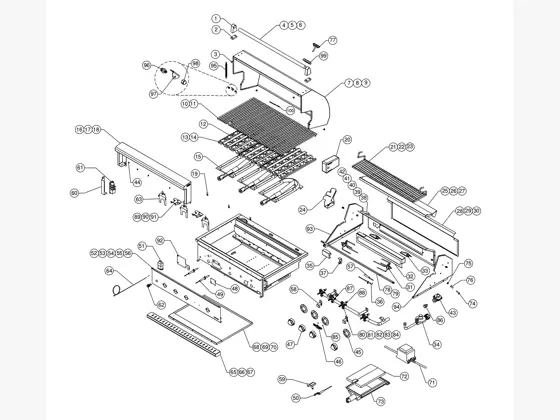

DHBQ D-Series Gas Grills Parts Diagrams
The current Delta Heat gas grills in 26, 32 and 38 inch sizes. Model numbers end in -D (also -K and -W for black and white front panels).

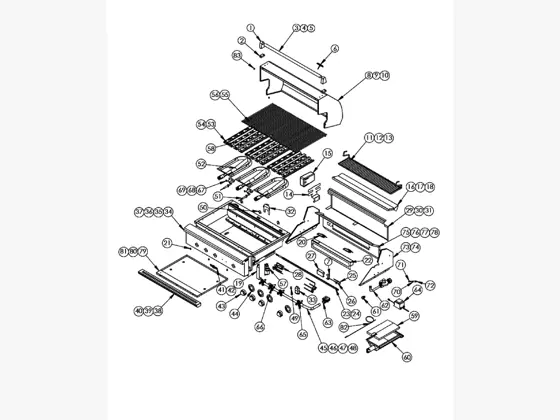

DHBQ C-Series Gas Grills Parts Diagrams
Earlier Delta Heat gas grills in 26, 32 and 38 inch sizes. Model numbers end in -C.
DHBQ B-Series Gas Grills Parts Diagrams
The first Delta Heat gas grills in 26, 32 and 38 inch sizes. Model numbers end in -B.

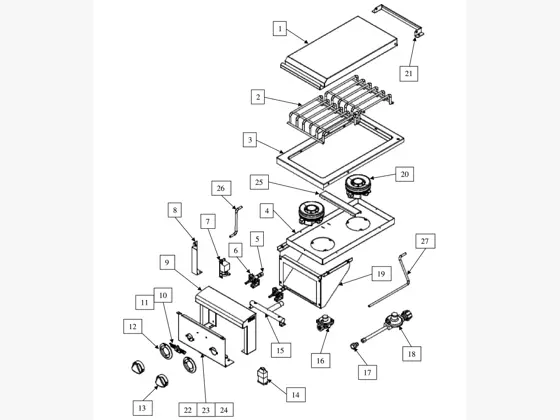

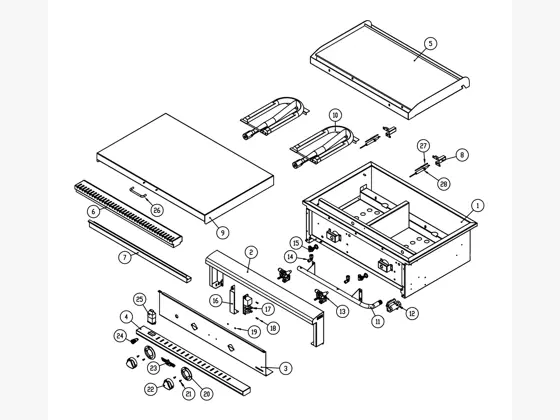

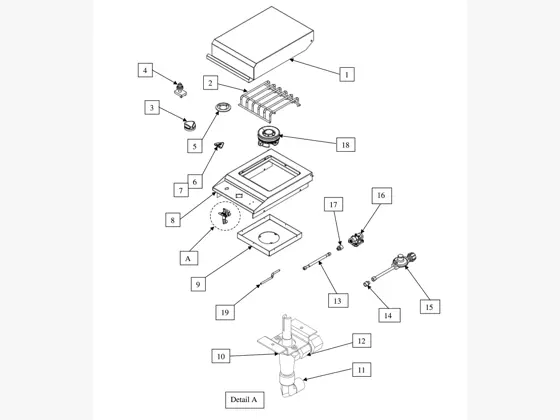

Specialty Cooking Parts Diagrams
Delta Heat side burners and the 32 inch teppanyaki griddle.
