Delta Heat DHSB1D-D Drop-In Side Burner Parts Diagram
Specialty Single drop-in side burner (DHSB1D-DN natural gas / DHSB1D-DL propane)
About the DHSB1D-D parts

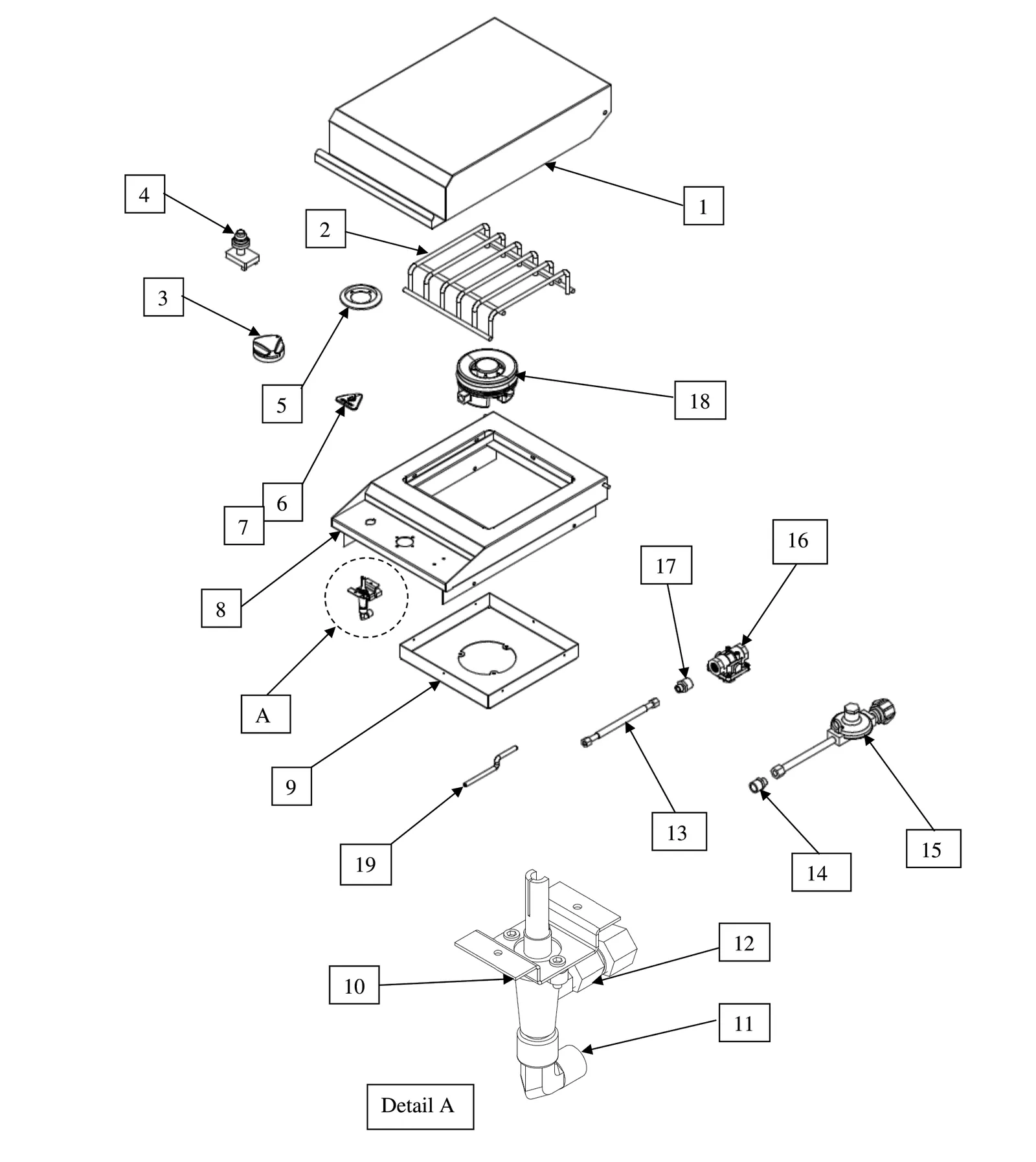

This page shows the exploded parts diagram and full parts list for the Delta Heat DHSB1D-D Drop-In Side Burner, a single drop-in side burner (dhsb1d-dn natural gas / dhsb1d-dl propane). It lists 24 replacement parts with the quantity this model uses, and 16 of them can be ordered online today. Tap a red dot or pick a part from the list to see its Delta Heat part number. Part numbers are shown the way Delta Heat prints them. A leading S or a trailing Y on some numbers (S13113, 13113, 13113Y) usually means the same part, so text us if you are unsure.
Source: Delta Heat Side Burner Use and Care Manual (P/N 4490030194 B).
Find your model and serial number
- Remove the drip pan and set it aside so you can see the data plate.
- Look up under the right side of the control panel. The tag is on the bottom of the control panel, facing down, so crouch down or use your phone camera.
- Text us a photo of the tag. We’ll tell you exactly which parts fit.
Reading a DHBQ model number
DHBQ32RS-DN: 32 is the width in inches, R means it has the infrared rotisserie (G is grill only), S means a sear zone burner, -D is the series, and N or L is natural gas or propane. A K or W after the dash (DHBQ32R-KN) means a black or white front panel on a D-Series grill.
B, C or D-Series? The letter after the dash on the tag is the series. Many parts changed between series, so check before you order.
Watch: where to find your model and serial number
Item
Want us to double-check the fit? Text us or call (866) 348-4618.
