Delta Heat DHSB2-D Built-In Double Side Burner Parts Diagram

Specialty 2-burner built-in side burner, also DHSB2-KD (black) and DHSB2-WD (white)

Labels

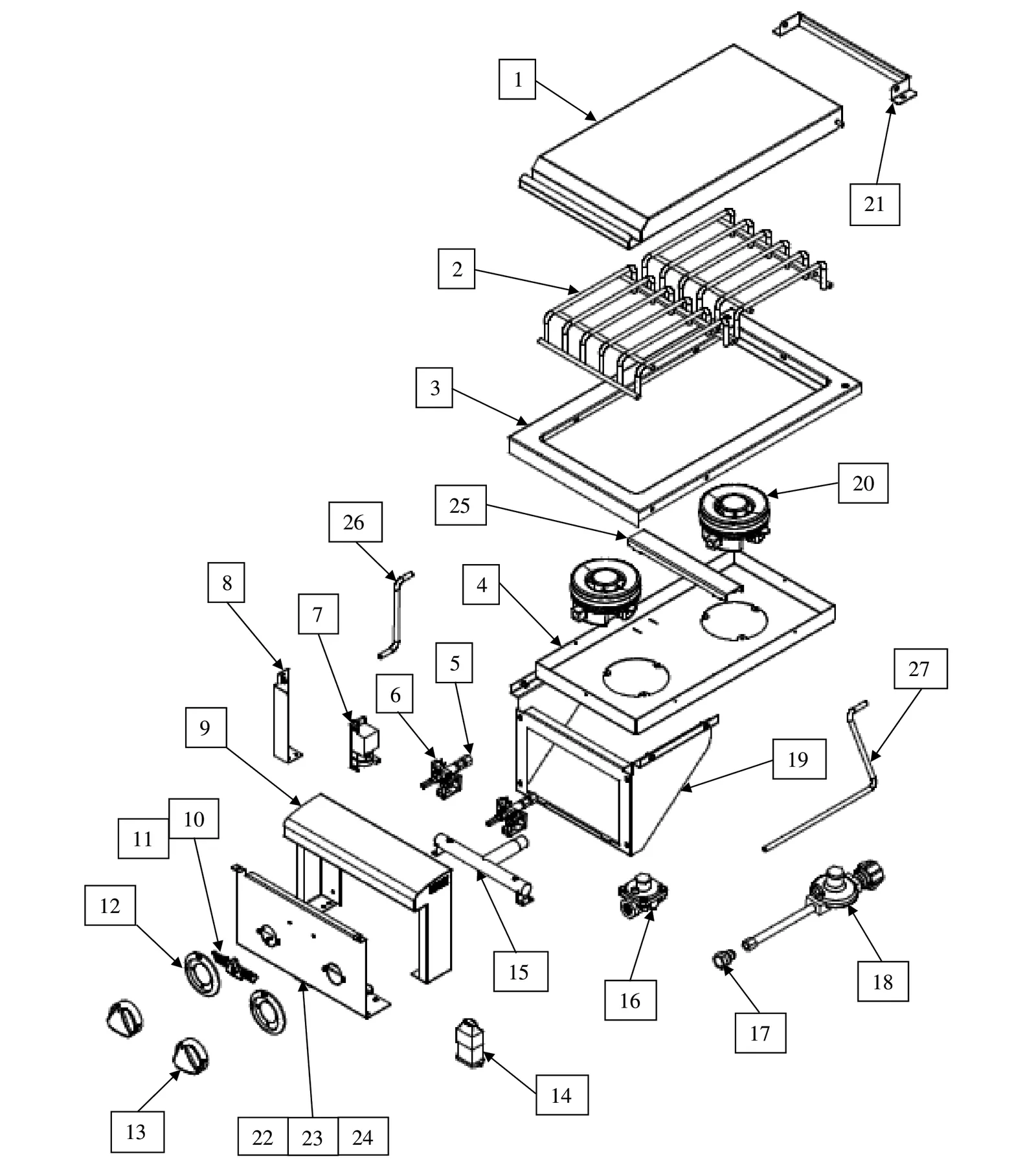

Delta Heat DHSB2-D Built-In Double Side Burner exploded parts diagram

Parts list (36)

1Cover 2 Side Burner Welded Assembly4490050298 · Qty 1Shop
2Side Burner Grate13843 · Qty 2Shop
3Cooktop, Built-In, 2 Burner Assembly4490050405 · Qty 1Ask us
4Holder Burner, 2 Burner4490050301 · Qty 1Shop
5Brass Nut and Sleeve, 1/8 FIP x 5/1612609 · Qty 2Shop
6Straight Gas ValveS15132 · Qty 2Shop
72-Spark Ignition Module16323 · Qty 1Shop
8Ignition Module BracketS23216 · Qty 1Ask us
9Landing Ledge Welded Assembly, 124490050263 · Qty 1Ask us
10Delta Heat LogoS13201 · Qty 1Shop
11Tinnerman Barrel Clip14160 · Qty 2Ask us
12Delta Knob BezelS13199 · Qty 2Shop
13Delta Black KnobS13195 · Qty 2Shop
14Battery PackS16272 · Qty 1Ask us
15Manifold12754 · Qty 1Shop
16NG RegulatorS15303 · Qty 1 · Natural gas onlyShop
17Brass Coupling, 3/8 Flare x ½ FIPS12602 · Qty 1 · Propane onlyShop
18LP RegulatorS15344 · Qty 1 · Propane onlyShop
19Stiffener, 2 Burner Assembly4490050406 · Qty 1Ask us
20Burner Assembly, Mini Wok4490030167 · Qty 2Ask us
21Side Burner Cover Brace4490050296 · Qty 1Ask us
22Side Burner Front Panel, SS4490050256 · Qty 1Ask us
23Side Burner Front Panel, Black4490050257 · Qty 1Ask us
24Side Burner Front Panel, White4490050258 · Qty 1Ask us
25Grate Support4490050302 · Qty 1Ask us
26Tubing, AL, Gas, Front, 9.44 In4490030191 · Qty 1Shop
27Tubing, AL, Gas, Rear, 18.40 In4490030192 · Qty 1Shop
–DHSB Wire Harness Assembly Bundle4490030387 · Qty 1Ask us
–Delta Blue LEDS16355 · Qty 2Shop
–Wire Harness Assembly16337Y · Qty 1Shop
–72” extension, built-inS16260 · Qty 1Shop
–Orifice, NG13314 · Qty 2 · Natural gas onlyShop
–Orifice, LP4490030193 · Qty 2 · Propane onlyAsk us
–Sleeve, 11004013311 · Qty 2Ask us
–Fitting, 11008313310 · Qty 2Ask us
–Screw, M4 X 8, PH PAN SS14139 · Qty 6Ask us

About the DHSB2-D parts

This page shows the exploded parts diagram and full parts list for the Delta Heat DHSB2-D Built-In Double Side Burner, a 2-burner built-in side burner, also dhsb2-kd (black) and dhsb2-wd (white). It lists 36 replacement parts with the quantity this model uses, and 19 of them can be ordered online today. Tap a red dot or pick a part from the list to see its Delta Heat part number. Part numbers are shown the way Delta Heat prints them. A leading S or a trailing Y on some numbers (S13113, 13113, 13113Y) usually means the same part, so text us if you are unsure.

Source: Delta Heat Side Burner Use and Care Manual (P/N 4490030194 B).

Other Specialty Cooking

DHSB1D-D DHTG32

Find your model and serial number

Remove the drip pan and set it aside so you can see the data plate.
Look up under the right side of the control panel. The tag is on the bottom of the control panel, facing down, so crouch down or use your phone camera.
Text us a photo of the tag. We’ll tell you exactly which parts fit.

Reading a DHBQ model number

DHBQ32RS-DN: 32 is the width in inches, R means it has the infrared rotisserie (G is grill only), S means a sear zone burner, -D is the series, and N or L is natural gas or propane. A K or W after the dash (DHBQ32R-KN) means a black or white front panel on a D-Series grill.

B, C or D-Series? The letter after the dash on the tag is the series. Many parts changed between series, so check before you order.
